Cardionics E-Scope II - Figure 12 E-Scope Controls

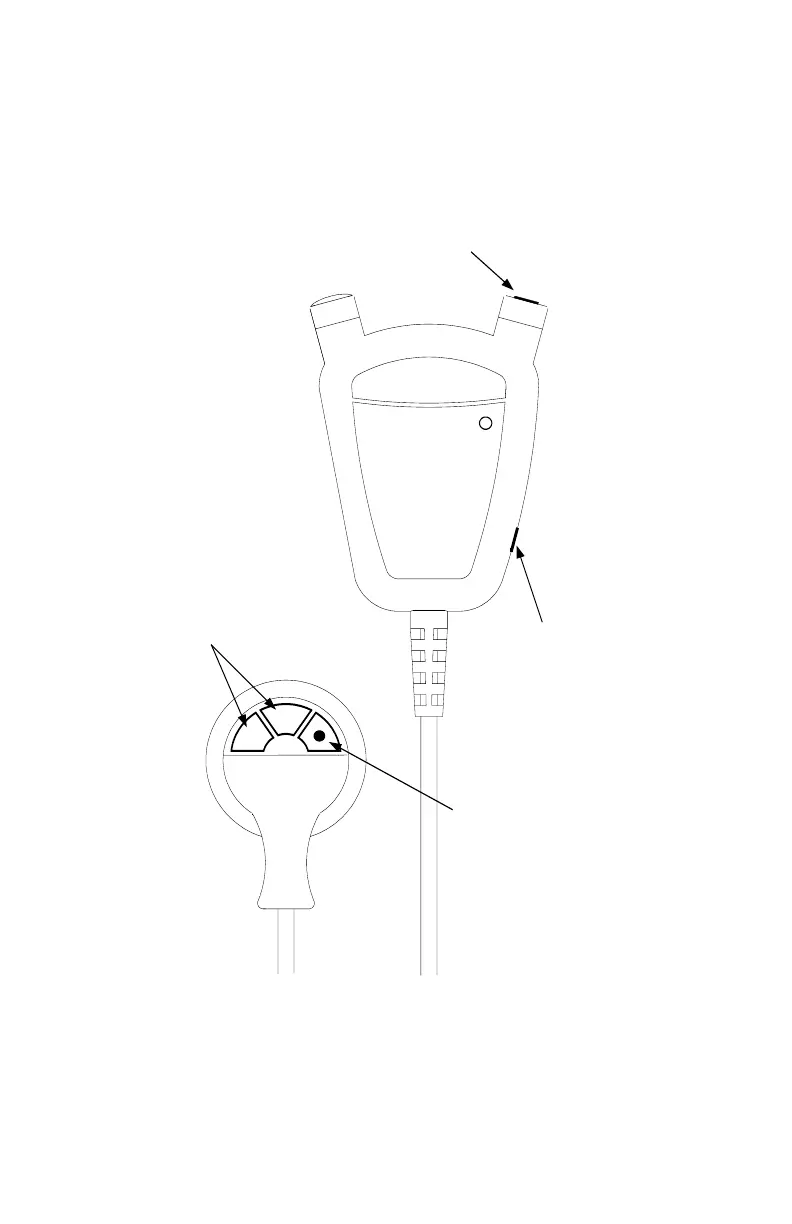

Figure 12 - E-Scope Controls
-
S
C
O
P
E
E
+
-
S
O
U
N
D
S
O
U
T
Electronic
Stethoscope
E-SCOPE
R
Cardionics
Output for either second
listener or accessory.
Sets the ideal frequency for
heart or lung sounds.
Pressing the dot while the E-
Scope is off will activate the
unit and adjust for lung
sounds. Press the dot while
the E-Scope is active and it will
toggle between lung and heart
sound modes.
Increase or decreases the
volume. Press either button
while the unit is off and it will
power on in the heart sound
mode by default and remain on
for 1.5 minutes. The timer
resets itself after every press
of a button. When the E-Scope
restarts, it returns to the last
volume setting.
Output Jack for Cardionics Headphone,
Model 718-0405 and 718-0415.
11
