Cardionics E-Scope II - List of Figures Figure 1 E-Scope Clinical Model; Figure 2 E-Scope Belt Model

The E-Scope is designed to maximize hearing of heart and lung
sounds. A sound selector switch is provided to allow listening in the
proper frequency response for either heart sounds or breath sounds.
There are several models of the E-Scope II. The clinical E-Scope
(cat. no. 718-7740, 718-7700) and the Belt model E-Scope for hearing
impaired users (cat. no. 718-7750, 718-7710).

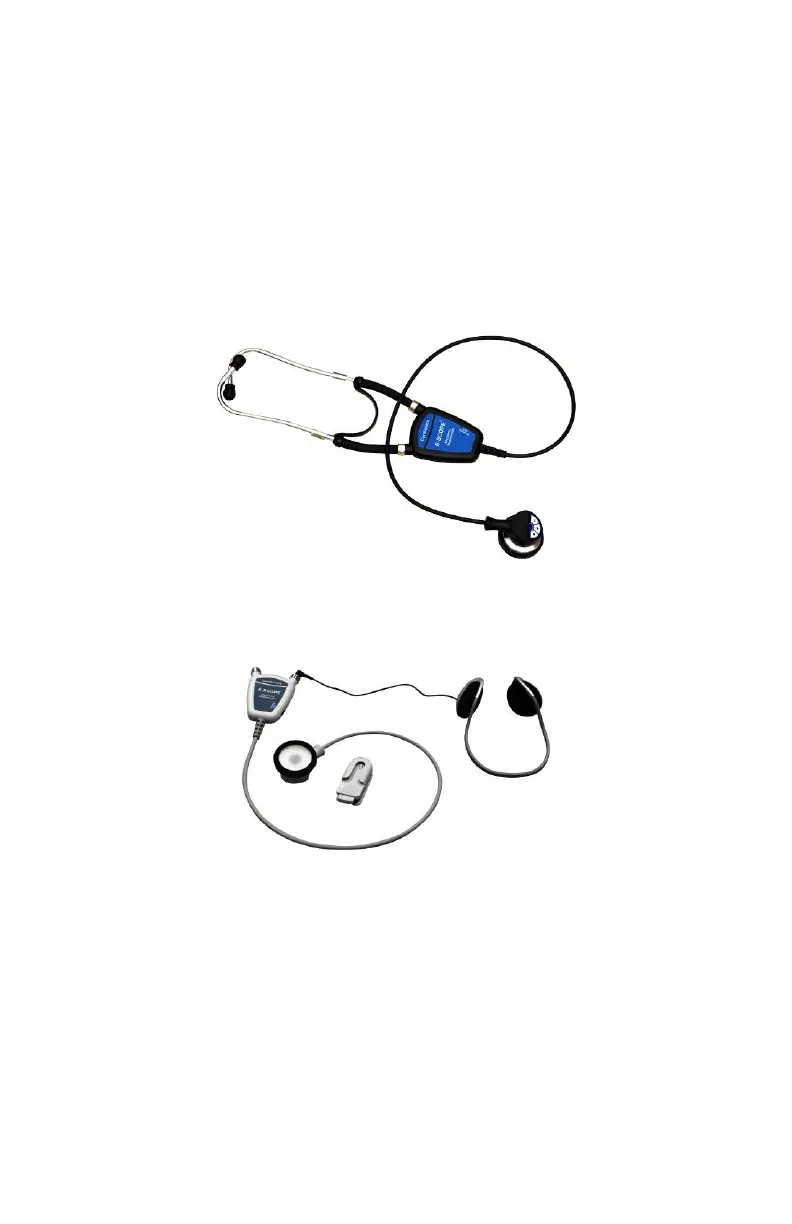

Figure 1
E-Scope II electronic stethoscope
Clinical model
Figure 2
E-Scope belt model for hearing impaired users
The Belt model E-Scope is designed for use with an ITE (in-the-ear)
type hearing aid. With the Belt model E-Scope, the normal earpieces
have been removed. A pair of headphones are then inserted into the
upper output of the E-Scope and placed over the hearing aids. Figure
2 shows the detail of the Belt model E-Scope and Figure 4 shows the
E-Scope in use.
