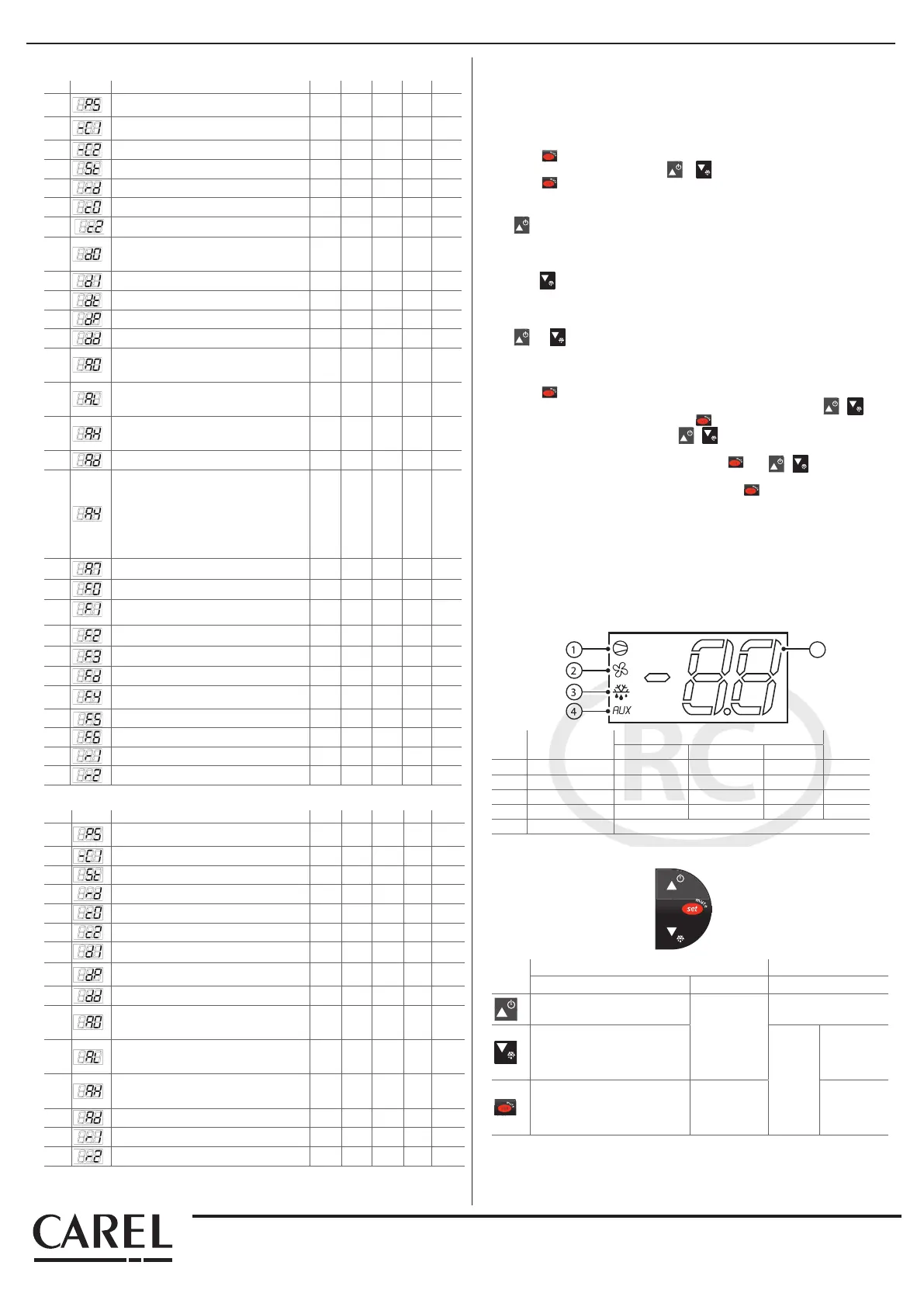

Parameters table
Table of parameters for PJEZY*,PJEZC*,PJEZS*J*
Description Type Min Max Def. UOM
PS
Password F 0 99 22 -
-C1
Probe 1 calibration F -20 20 0 °C
-C2
Probe 2 calibration F -20 20 0 °C
St
Control temperature F -50 90 4.0 °C
rd
Control differential F 0 19 2.0 °C
c0
Comp. and fan start delay after start-up C 0 99 0 Min
c2
Min. compressor off time C 0 99 3
Min
d0
Type of defrost (0= heater; 1= hot gas;
2= heater by time; 3= hot gas by time;
4= heater by time with temp. cont.)
C 0 4 0 -
dI
Interval between two defrosts C 0 24 8 Hour
dt
End defrost temperature C -50 90 12 °C
dP
Max. or effective defrost duration C 1 99 30
Min
dd
Dripping time after defrost C 0 15 2
Min
A0
Fan and alarm differential (≤0,AL and AH expres-
sed as absolutes; >0,AL and AH expressed relative
to the set point)
C -20 20 -2.0 °C
AL
Low temperature alarm threshold/deviation
(when A0≤0,AL=-50:alarm disable, when A0>0,
AL=0:alarm disable)
C -50 90 -50 °C
AH
High temperature alarm threshold/deviation
(when A0≤0,AH=90:alarm disable, when A0>0,
AH=0:alarm disable)
C -50 90 90 °C
Ad
Low and high temperature alarm delay C 0 99 0
Min
A4
door related FAN or Light management
0= input not active
1=door opening with FAN OFF
2= door opening with Light ON
3= door opening with display shown “do”, keypad
ON/OFF Light
4= door opening with display shown “EA” and
Comp. OFF, keypad ON/OFF Light
C 0 4 0 -
A7
External alarm detection delay C 0 199 0 Min
F0
enable fan control C 0 1 0 -
F1
Fans shutdown temperature F -50 99 5.0 °C
F2 fan off when compressor off C 0 2 1 -
F3
fan states during defrost C 0 1 1 -
Fd
post-dripping time C 0 15 0
Min
F4
Start delay when FAN ON is required by the
Regulation
C 1 99 3 Sec
F5 Fan Duty Cycle(with F2=2): ON time C 1 99 5
Min
F6
Fan Duty Cycle(with F2=2) : OFF time C 1 99 5
Min
r1
Minimum set point allowed to the user C -50 r2 -50 °C
r2
Maximum set point allowed to the user C r1 90 90 °C
Table of parameters for PJEZS*E*
Description Type Min Max Def. UOM
PS
Password F 0 99 22 -
-C1
Probe 1 calibration F -20 20 0 °C
St
Control temperature F -50 90 4.0 °C
rd
Control differential F 0 19 2.0 °C
c0
Comp. and fan start delay after start-up C 0 99 0 Min
c2
Min. compressor off time C 0 99 3 Min
dI
Interval between two defrosts C 0 24 8 Hour
dP
Max. or effective defrost
duration
C 1 99 30 Min
dd
Dripping time after defrost C 0 15 2 Min
A0
Fan and alarm differential (≤0,AL and AH expres-
sed as absolutes; >0,AL and AH expressed relative
to the set point)
C -20 20 -2.0 °C
AL
Low temperature alarm threshold/deviation
(when A0≤0,AL=-50:alarm disable,when A0>0,
AL=0:alarm disable )
C -50 90 -50 °C
AH
High temperature alarm threshold/deviation
(when A0≤0,AH=90:alarm disable, when A0>0,
AH=0:alarm disable)
C -50 90 90 °C
Ad
Low and high temperature alarm delay C 0 99 0 Min
r1
Minimum set point allowed to the user C -50 r2 -50 °C
r2
Maximum set point allowed to the user C r1 90 90 °C
*F: frequent parameters, without password
*C: confi guration parameters, with password
+050004235 - rel. 1.2 - 09.07.2015
Fixed settings
• Minimum compressor ON time is 1 minute;
• If there is no defrost relay, the compressor will be shut down for defrost;
• Freeze the display when defrost, it returns when the temperature reaches the set point;
• Alarm is bypassed 1 hour after defrost;
Setting the set point (desired temperature)
• press for 1 s, the set value will start fl ashing after a few moments;
• increase or decrease the value using or ;
• press to confi rm the new value.
Switching the device ON/OFF
press for more than 3 s. The control and defrost algorithms are now disabled and the instru-
ment displays the message“OFF” alternating with the temperature read by the set probe.
Manual defrost (only for models C/Y)
press down for DOWN more than 3 s (the defrost starts only the temperature conditions are
valid).
Show defrost probe temperture(only for models C/Y)
press and together.
Access and setting type F (frequent) and type C (confi guration)
parameters
• press for 3 s (the display will show “PS”);
• to access the type F and C parameter menu, enter the password “22” using / ;
• to access the F parameter menu only, press (without entering the password);
• scroll inside the parameter menu using / .
To display/set the values of the parameter displayed, press , then / and fi nally to
confi rm the changes (returning to the parameter menu).
To save all the new values and exit the parameter menu, press for 3 s;
To exit the menu without saving the changed values (exit by timeout) do not press any button for
at least 60 s.
Display and functions
During normal operation, the controller displays the ambient temperature. In addition, the
display has LEDs that indicate the activation of the control functions (see Table 1), while the
3 buttons can be used to activate/deactivate some of the functions (see Table 2).
LEDs and associated functions
5
index function normal operation Start up
ON OFF blink
1 compressor on off request on
2 fan on off request on
3 defrost on off request on
4 aux output on output off - on
5 digit 2 digit LED display with sign (-99 to 99) and decimal point
Table.1
Table of functions activated by the buttons
button
normal operation start up
pressing the button alone pressed together
more than 3 s: toggle ON/OFF
pressed together
display defrost
probe temp.
-
more than 3 s: start/stop defrost
Pressed
together
start
parameter
reset pro-
cedure
For 1 s: display
fi rmware vers.
code
1 s: display/set the set point
More than 3 s: access
parameter setting menu(enter pass-
word ‘22’)
-
Table.2
