Bottom panel
AUX IN For connecting an audio device (computer/phone/mp3 player)
for music and audio playback.
EXT CYMBAL Connect to CRASH 2 cymbal pad (cable included)
EXT TOM Connect to TOM4 extension pack (sold separately)
USB OUTPUT Connect to computer for MIDI and Audio data transfer
UPDATE Connect to computer for software upgrades and updates
DC IN
Power adaptor port: 12V 1A
ON/OFF
Power switch

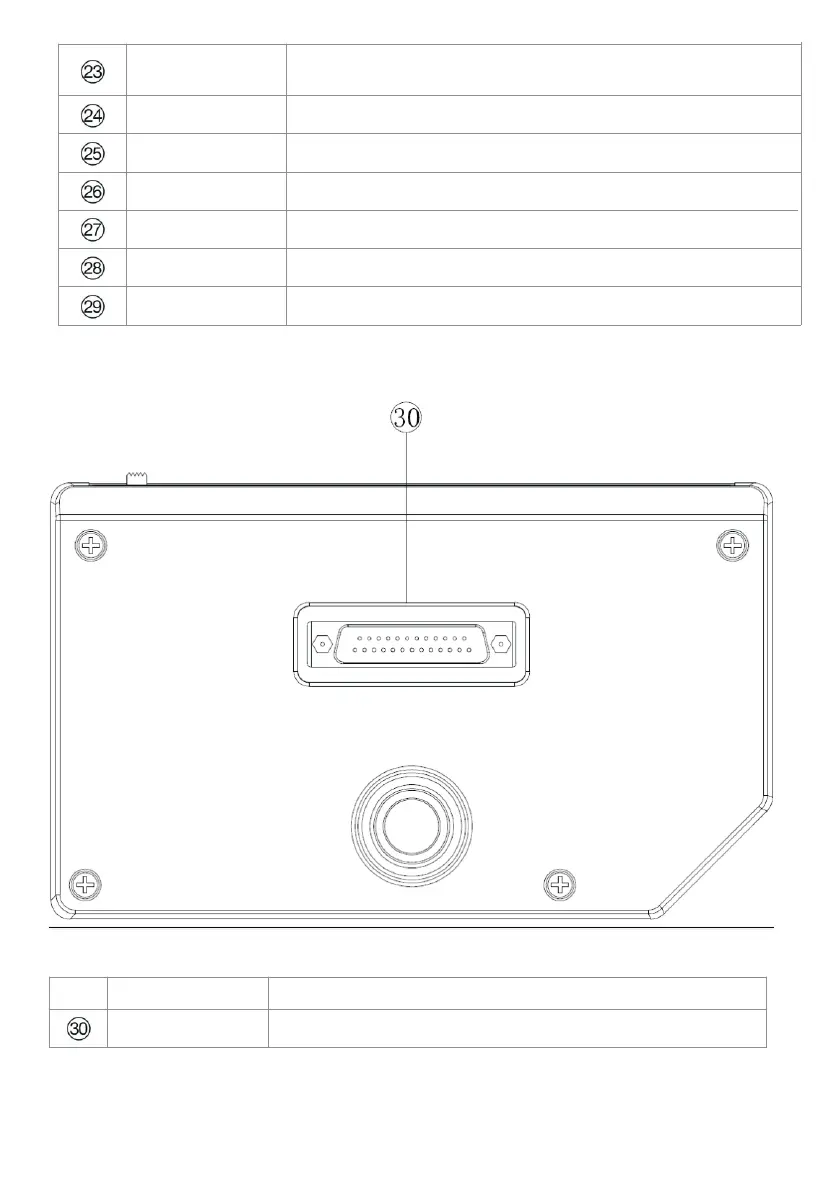

No. Name Description
TRIGGER INPUT Drum signal input port
10
To Next Page
