42

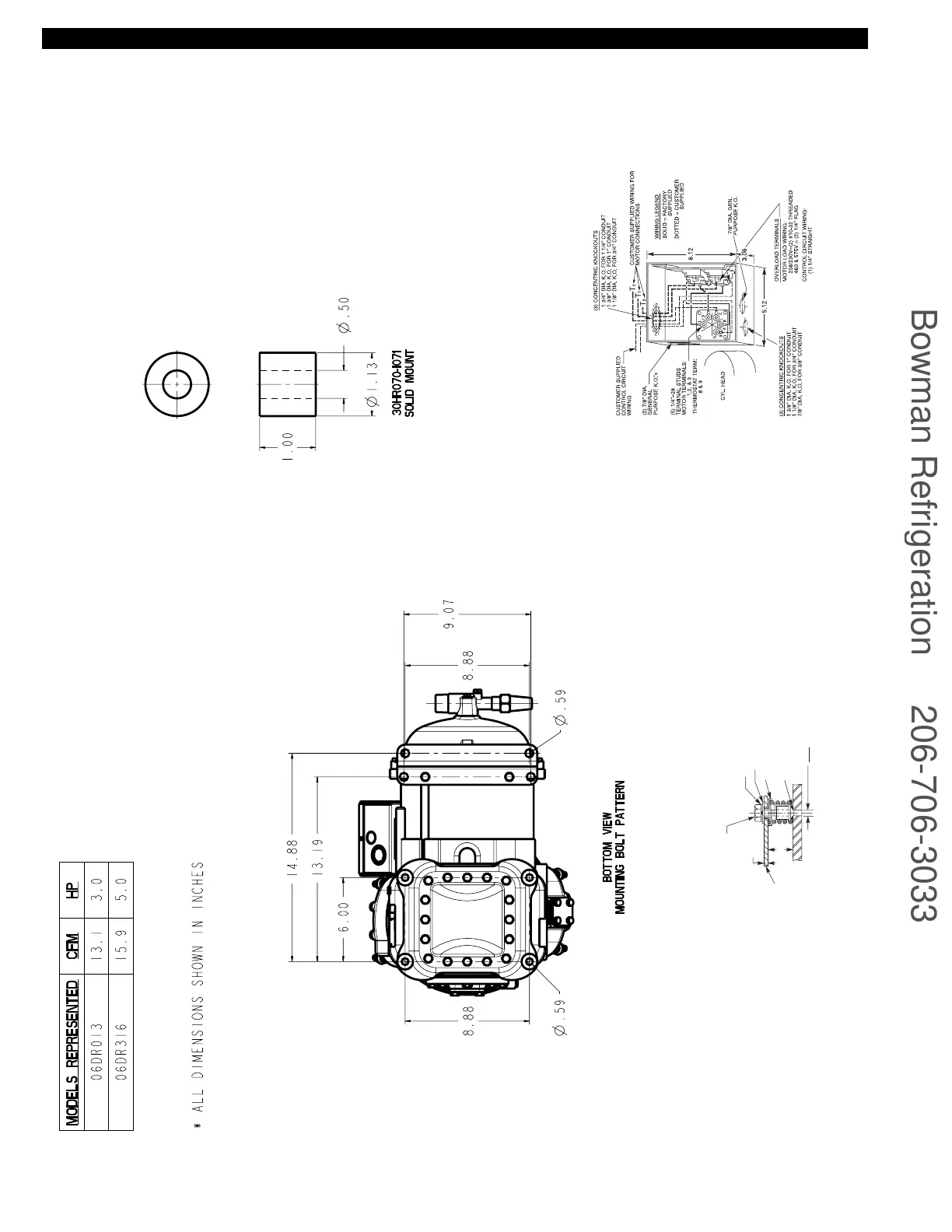

COMPRESSOR FOOT MOTOR END AND PUMP END (TYP.)
= CUSTOMER
SUPPLIED
1.25
.19
3/8-16 x 7/8 LG
CAPSCREW
LOCKWASHER
PLATEWASHER
SPRING CUP
WELD
(TYP.)
.623
DIA. (TYP.)
.627
*
*
*
*
SPRING MOUNTING ARRANGEMENT
TERMINAL BOX DATA
