IV. Operation guidance
1. Boat installation and operation instruction

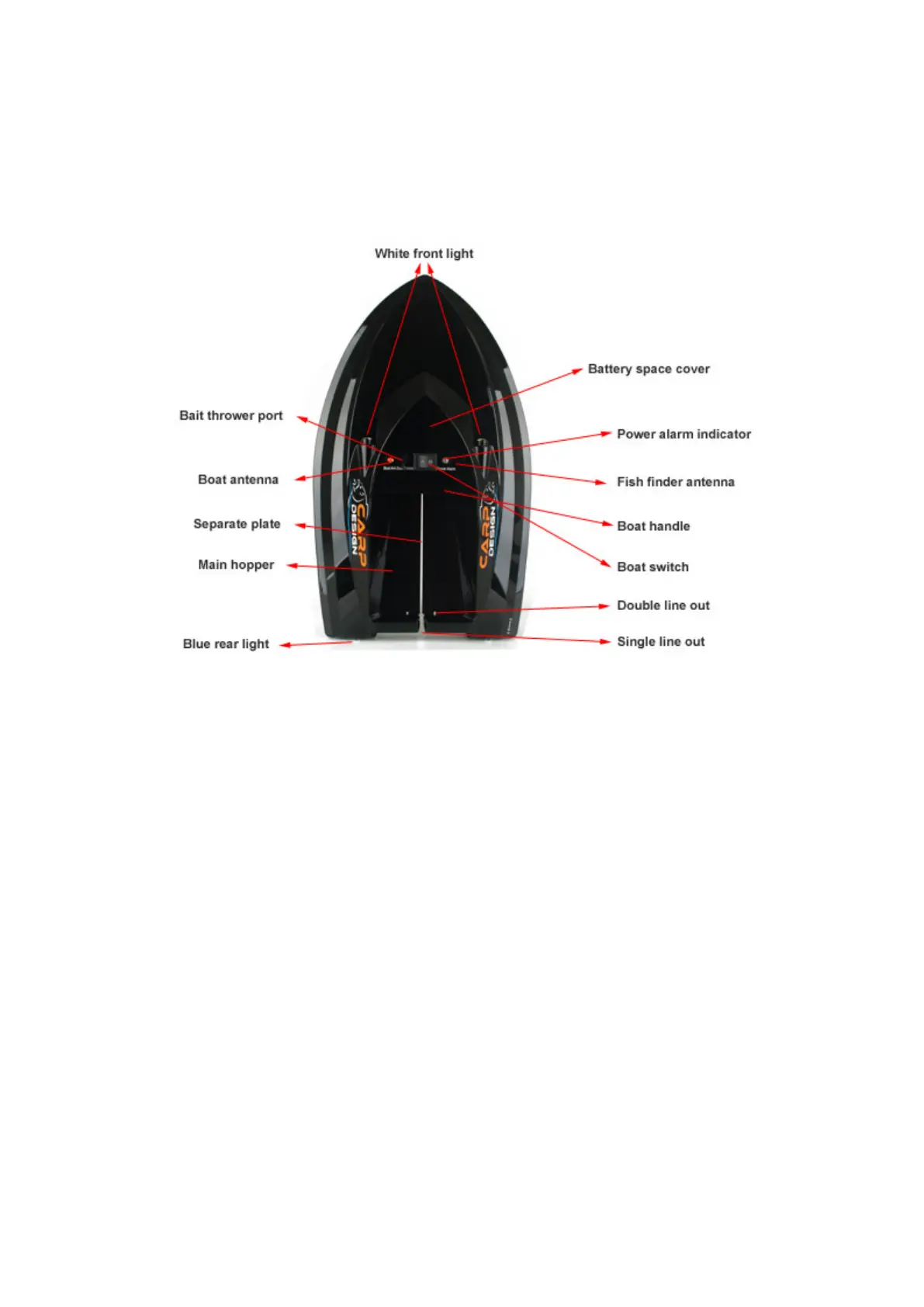

The boat functions are described as follows:
Installation instruction:
（1） First open the battery compartment covers, take two batteries from the
foam box, place them into the battery compartment of the boat
respectively. Pls place the battery into the middle battery compartment
when use one battery ( the logo the battery towards up). Pls place the
batteries into the left and right battery compartments when use two
batteries (push down and fix the batteries with the logo towards up).
Then connect the battery power lines at two ends respectively, and close
the battery compartment cover.
（2） Take out the boat antenna, fasten it clockwise, and fix it onto the boat
antenna seat.
（3） If nesting is required on the left and right side of the middle compartment
respectively, insert the division plate of the middle compartment into the
