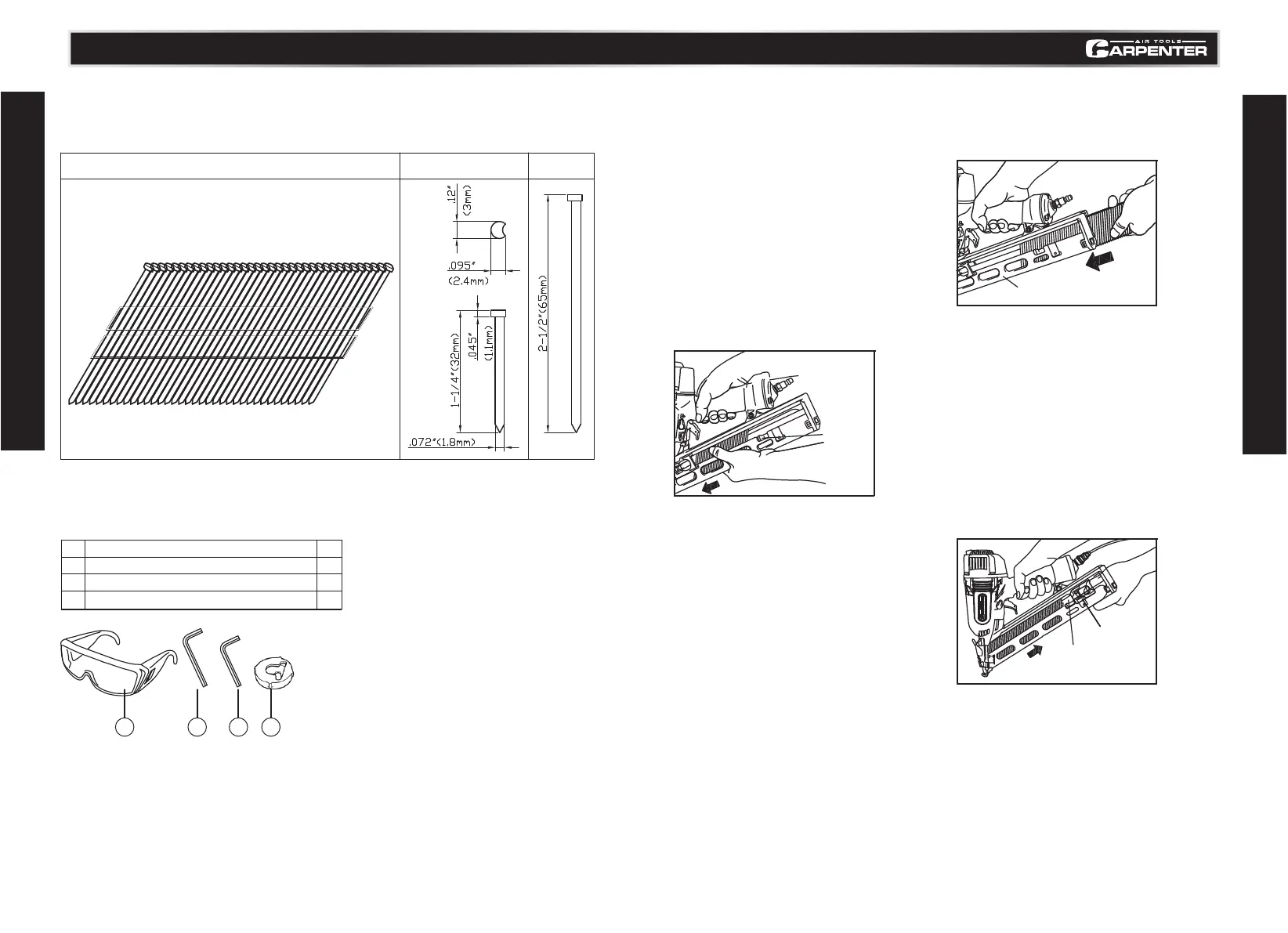

ACCEPTABLE NAILS LOADING NAILS
STANDARD ACCESSORIES
Only nails shown in the Table below can be driven with this Nailer.
Safety glasses
Allen wrench for M6 screw
Allen wrench for M5 screw
Nose cap
1
2
3
4
1
1
1
1
Model No. C1565 contact us 1-888-666-1887
TYPES OF NAILS
OPERATING INSTRUCTIONS
15 Gauge finish nails Min. Max.
3.Pull the nail feeder(B) back to engage the
nail feeder(A) to the nail strip
(Fig.A).
1.Insert nail strip into rear of magazine (Fig.A).
2.Slide the nail strip forward in the magazine.
The nail strip should pass the nail stopper
(Fig.B).
Magazine
Nail Stopper
Fig. A
Fig. C
Fig. B
Nail Feeder (A)
Nail Feeder (B)
1 2 3
4
