WARNING
THE OPTIONAL SEQUENTIAL TRIP MECHANISM (SINGLE SHOT PARTS) is for use where precision
fastener placement is desired and must be operated in accordance with the following “Method of
Operation”.
You must first depress the push lever (upward position) where you wnat to drive a nail and
then pull the trigger. After the each nail is driven, completely release the trigger and lift the
tool off the work surface. An OPTIONAL SEQUENTIAL TRIP MECHANISM may reduce the possibility
of bodily injury to you or others in the work area. This is because it is less likely to drive an
unwanted nail if you keep the trigger pulled and accidentally bump the push lever against
yourself or others. An OPTIONAL SEQUENTIAL TRIP MECHANISM may also reduce the speed of
operation compared to the standard contact trip mechanism.
NOTE:
Both STANDARD CONTACT TRIP MECHANISM and OPTIONAL SEQUENTIAL TRIP MECHANISM are
safe if used as described above and accroding to all warnings and instructions.
Always handle nails and package carefully.
If dropped, the collated nails may break or come loose. In such cases, do not use the nails because,
if used in that condition, nail feed may become faulty and result in missed nails or jamming of the
nails.
After nailing:
⑴ Disconnect air hose from the Nailer;
⑵ Remove all nails from the Nailer;
⑶ Supply a few drops (approximately 2 cc (.12 in
3
)) of iubricant into the air plug
on the Nailer;
⑷ Open the petcock on the air compressor tank to drain any moistures.
● Keep your nger off the trigger except during fastening operation, because serious
injury could result if the push lever accidentally contacts you or others in work area.
● Keep hands and body away from the discharge area. The nailer with contact trip
mechanism may bounce from the recoil of driving a fastener and unwanted subsequent
fastener may be driven, possibly causing injury.
● Some types of loaded nails can spark out of the muzzle during a nail
driving operation. Exericise caution!

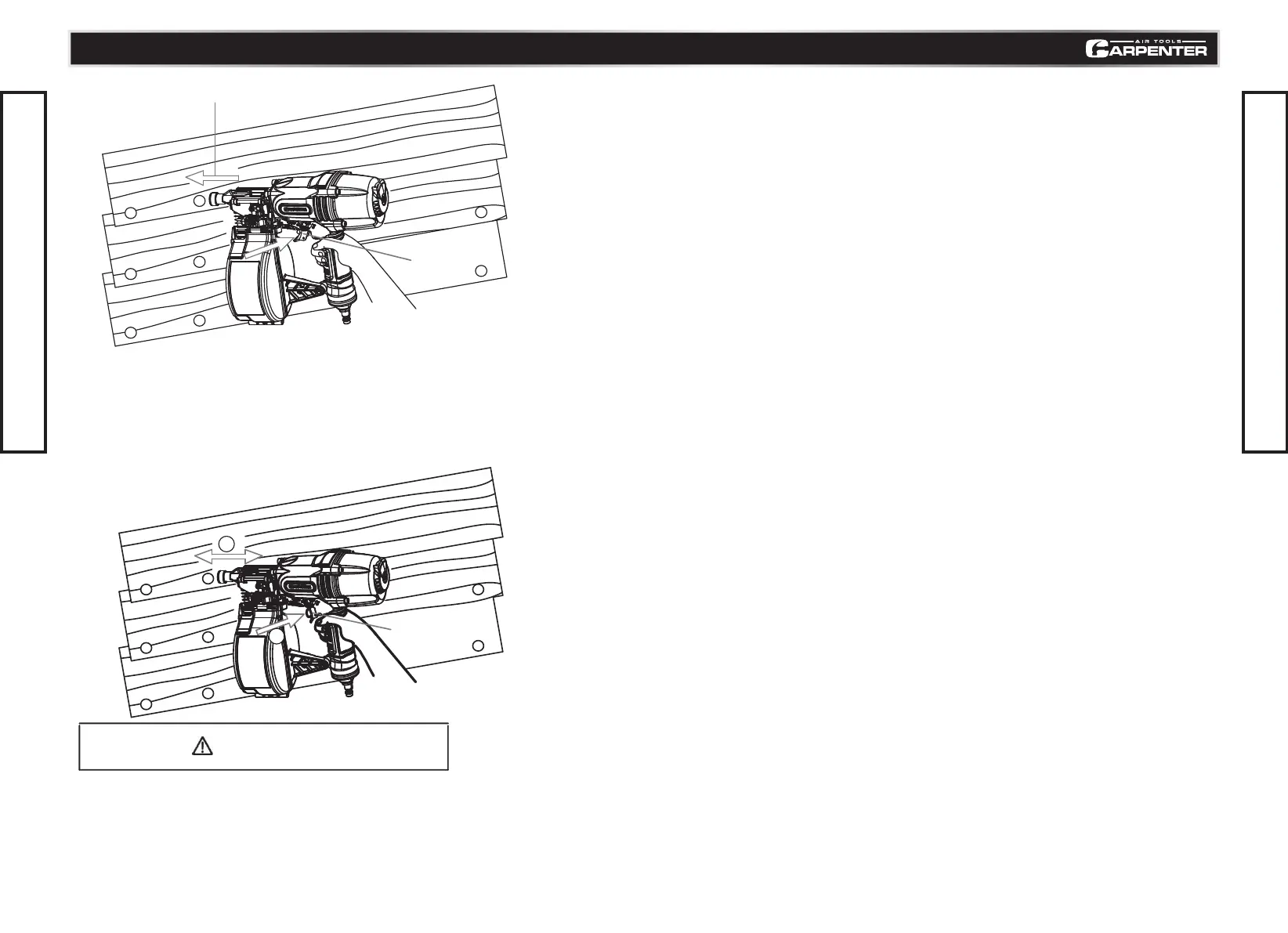

⑵ Continuous operation (Push lever fire)
① Pull the trigger with the Nailer off the workpiece.
② Depress the push lever against the workpiece to drive a nail.
③ Move the Nailer along the workpiece with a bouncing motion.
④ Each depression of the push lever will drive a nail.
As soon as the desired number of nails have been driven, remove your finger from
the trigger.
Model No. CCN65Z contact us 1-888-666-1887
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Trigger
Push Lever
Previously pull
the trigger
3
1
To Next Page
