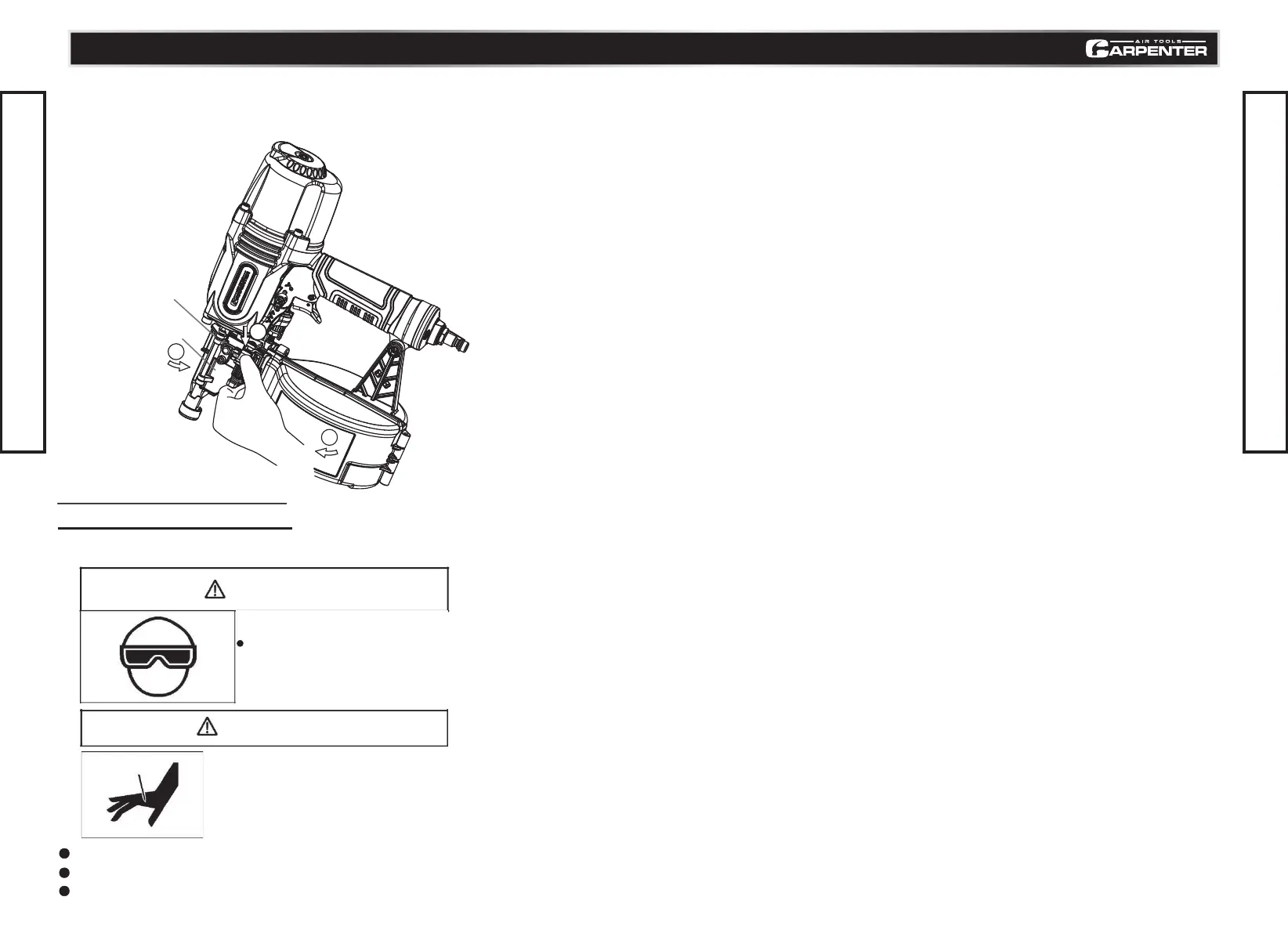

NAILER OPERATION
METHODS OF OPERATION
WARNING
DANGER
⑸Close the magazine cover.
Pulling the nails to the right, swing the nail guide closed.
⑹ Grip the nail guide and knob with finger.
⑺ Lock the knob completely.
Read section titled “SAFETY”(pages 4 – 6).
Operators and others in work area MUST wear safety glasses
with side shields which conforms to ANSI Z87.1 specications.
NEVER point tool at yourself or others in work area.
Keep ngers AWAY from trigger when not driving nails to avoid accidental ring.
Choice of triggering method is important. Please read and understand.
This Nailer is equipped with the push lever and does not operate unless the push lever is
depressed (upward position).
There are two methods of operation to drive nails with this Nailer.
They are:
1.Intermittent operation (Trigger fire):
2.Continuous operation (Push lever fire):
⑴ Intermittent operation (Trigger fire)
①Position the nail outlet on the workpiece with finger off the trigger.
②Depress the push lever firmly until it is completely depressed.
③Pull the trigger to drive a nail.
④ Remove finger from the trigger.
To drive another nail, move the Nailer along the workpiece and repeat this
procedure.
“METHODS OF OPERATION” found below.
●Never place your hands or feet closer than 8 inches (200 mm) from ring head when using.
●Do not drive nails on top of other nails or with Nailer at too steep of an angle; nails can ricochet
and hurt someone.
●In order to avoid double re or unwanted ejection of a nail due to bouncing of the Nailer.
①Do not push Nailer on workpiece with strong force;
②Take Nailer away from workpiece using recoil;
③Release trigger quickly when performing trigger fire.
●Do not drive nails into thin boards or near corners and edges of workpiece. Nails can be driven
through or away from workpiece and hit someone.
●Never drive nails from both sides of a wall at the same time. Nails can be driven into and through
the wall and hit a person on the opposite side.
●Never use Nailer which is defective or operating abnormally.
●Do not use Nailer as hammer.
●Disconnect air hose from Nailer when:
①It is not in use;
②Leaving work area;
③Moving it to another location; and handing it to another person.
This Carpenter nailer has a STANDARD CONTACT TRIP MECHANISM (Bounce Fire). An OPTIONAL
SEQUENTIAL TRIP MECHANISM kit (SINGLE SHOT) is available.
THE STANDARD CONTACT TRIP MECHANISM (Bounce Fire) is for use where rapid fastener
placement is desired and must be operated in accordance with the following “Methods of
Operation”.
Model No. CCN65Z contact us 1-888-666-1887
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
1
Nail Guide
2
Knob
3
