LOADING NAILS
WARNING
NOTE: Be careful not to deform the collated wires and not to disengage the nails with the guide
surface,otherwise the nail guide may not close correctly.

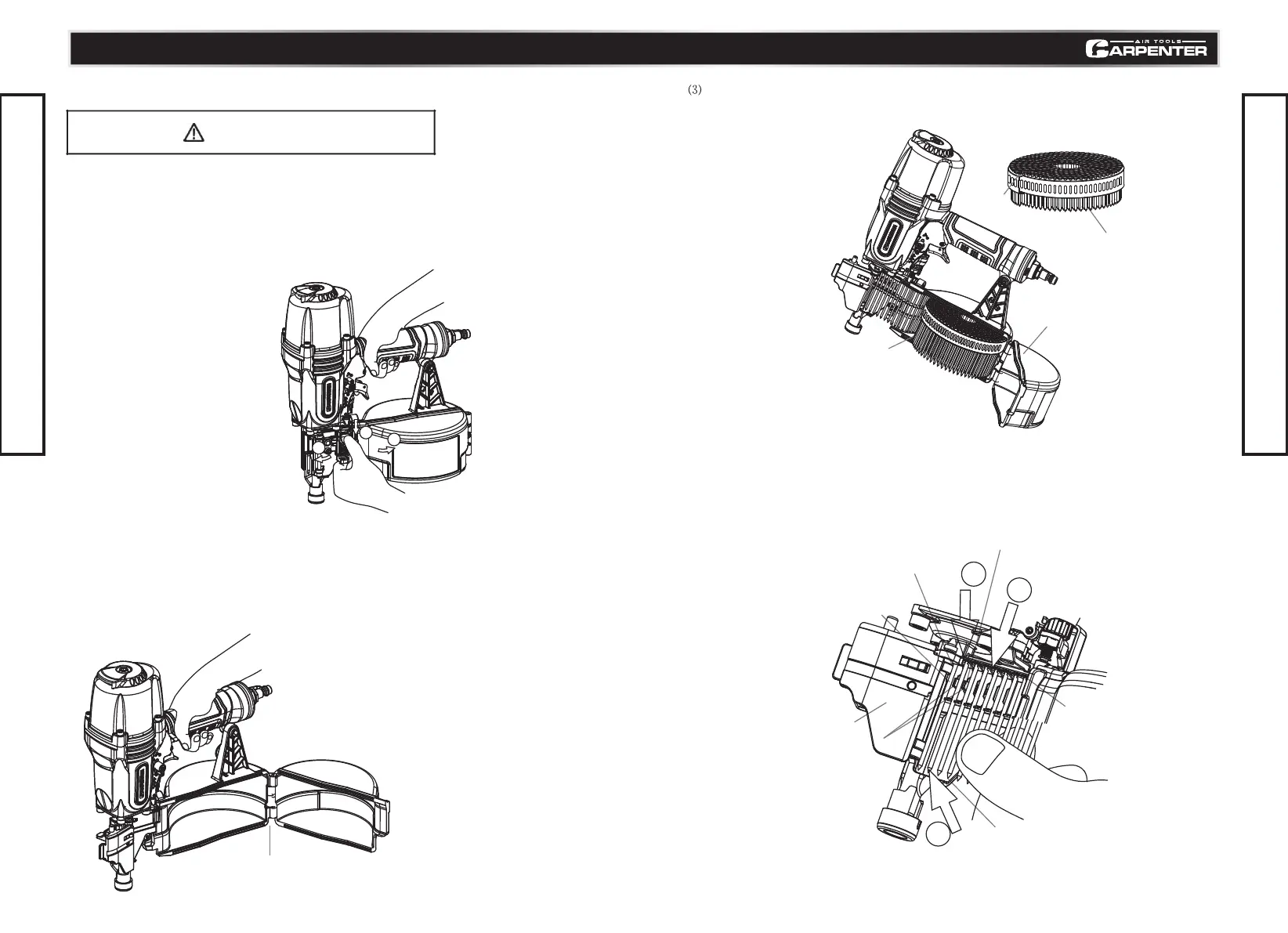

⑴ Press the knob down and swing the nail guide open; open the magazine cover
⑵ Adjust the position of the nail holder according to the nail length.
The nail may not feed smoothly if the nail holder is not correctly adjusted.
⑶ Place the nail coil in the magazine.
Insert the first nail into the magazine opening.
⑷ ①Uncoil enough nails to reach the driving hole
②Insert the first nail into the driving hole and the second nail between the two pawls
of the feeder.
③Fit the nail heads in the guide slot
④Pulling the nails to the right, swing the nail guide closed.
①Turn the nail holder about 90 degrees counterclockwise.
②Move the nail holder up and down to align the top of the nail holder with a mark on
the holder shaft in accordance with the length of the nails being used.
③Turn the nail holder 90 degrees clockwise until you hear "click"
When loading nails into Nailer,
1.Do not pull trigger;
2.Do not depress push lever;
3.Keep Nailer pointed downward.
Model No. CCN65Z contact us 1-888-666-1887
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
2
3
1
First Nail
Driving Hole
Guide Slot
Nail Guide
Pawl
Guide Suface
Feeder
1
2
3
Magazine Opening
Magazine Opening
Magazine
Nail
First Nail
To Next Page
