ADJUSTING AIR PRESSURE
WARNING
Adjust the air pressure at recommended operating pressure 70 – 120 psi (4.9 – 8.3 bar 5 – 8.5
kgf/cm
2
) according to the length of nails and the hardness of workpiece.
The correct air pressure is the lowest pressure which could do the job. Using the Nailer at a higher
than required air pressure unnecessarily over stresses the Nailer.
THE PUSH LEVER AND TRIGGER MUST MOVE SMOOTHLY.
(2) Adjust the air pressure to 70 psi (4.9 bar 5 kgf/cm
2
). Connect the air hose.
Do not load any nails in the Nailer.
⑶ With finger off the trigger, depress the push lever against the workpiece.
Do not exceed 120 psi (8.3 bar 8.5 kgf/cm
2
).
THE NAILER MUST NOT LEAK AIR.
Hold the Nailer downward and pull the trigger.
THE NAILER MUST NOT OPERATE.
⑷ Without touching the trigger, depress the push lever against the workpiece.
Pull the trigger.
THE NAILER MUST OPERATE.
⑸ With the Nailer off the workpiece, pull the trigger. Depress the push lever against the
workpiece.
THE NAILER MUST OPERATE.
⑹ If no abnormal operation is observed, you may load nails in the Nailer.
Drive nails into the workpiece that is the same type to be used in the actual application.
THE NAILER MUST OPERATE PROPERLY.
THE NAILER MUST NOT OPERATE.
Model No. CCN65Z contact us 1-888-666-1887

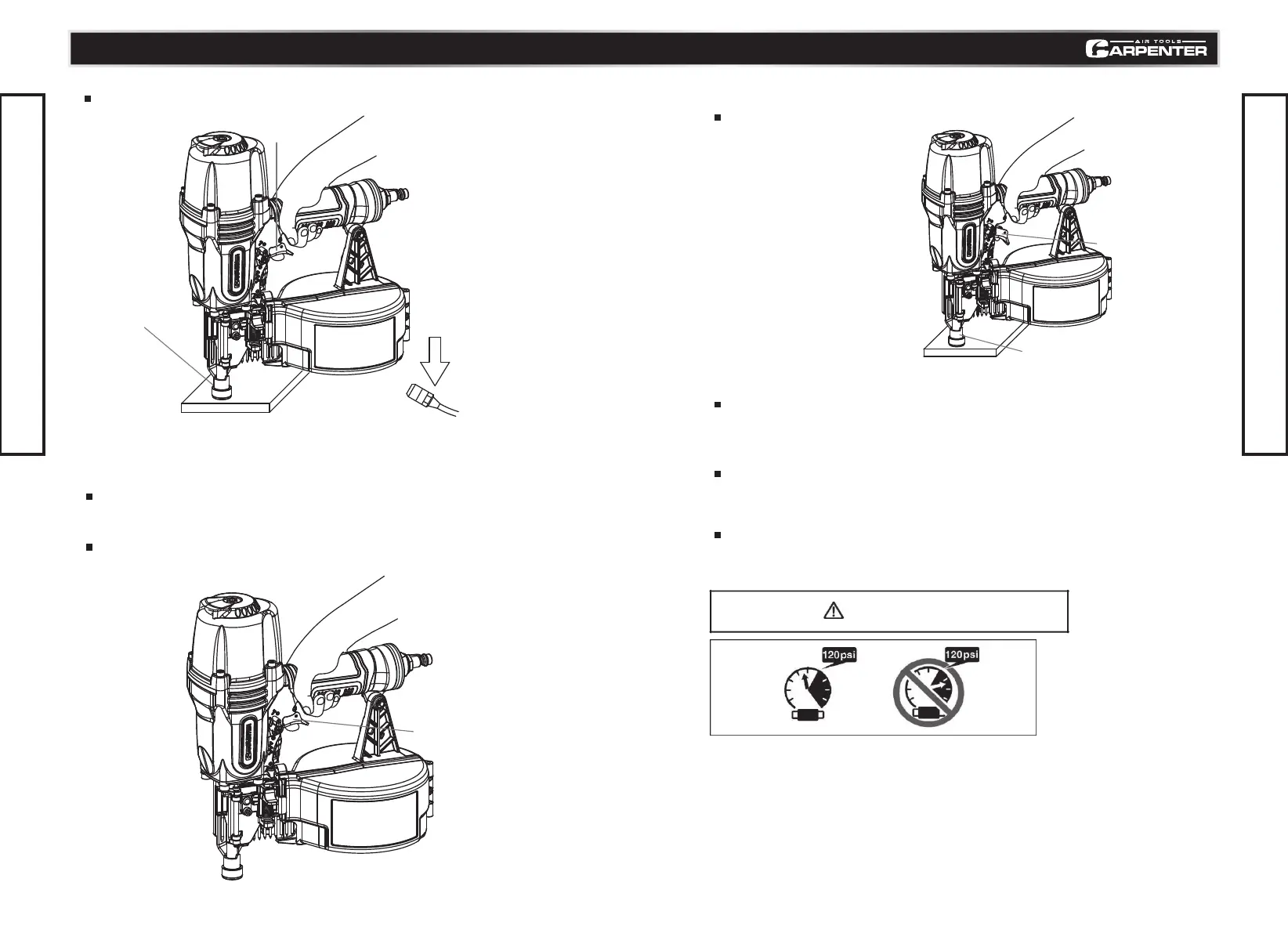

OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Do not connect
air hose
Push Lever
Trigger
Pull Trigger
Do not pull Trigger
Depress push Lever
