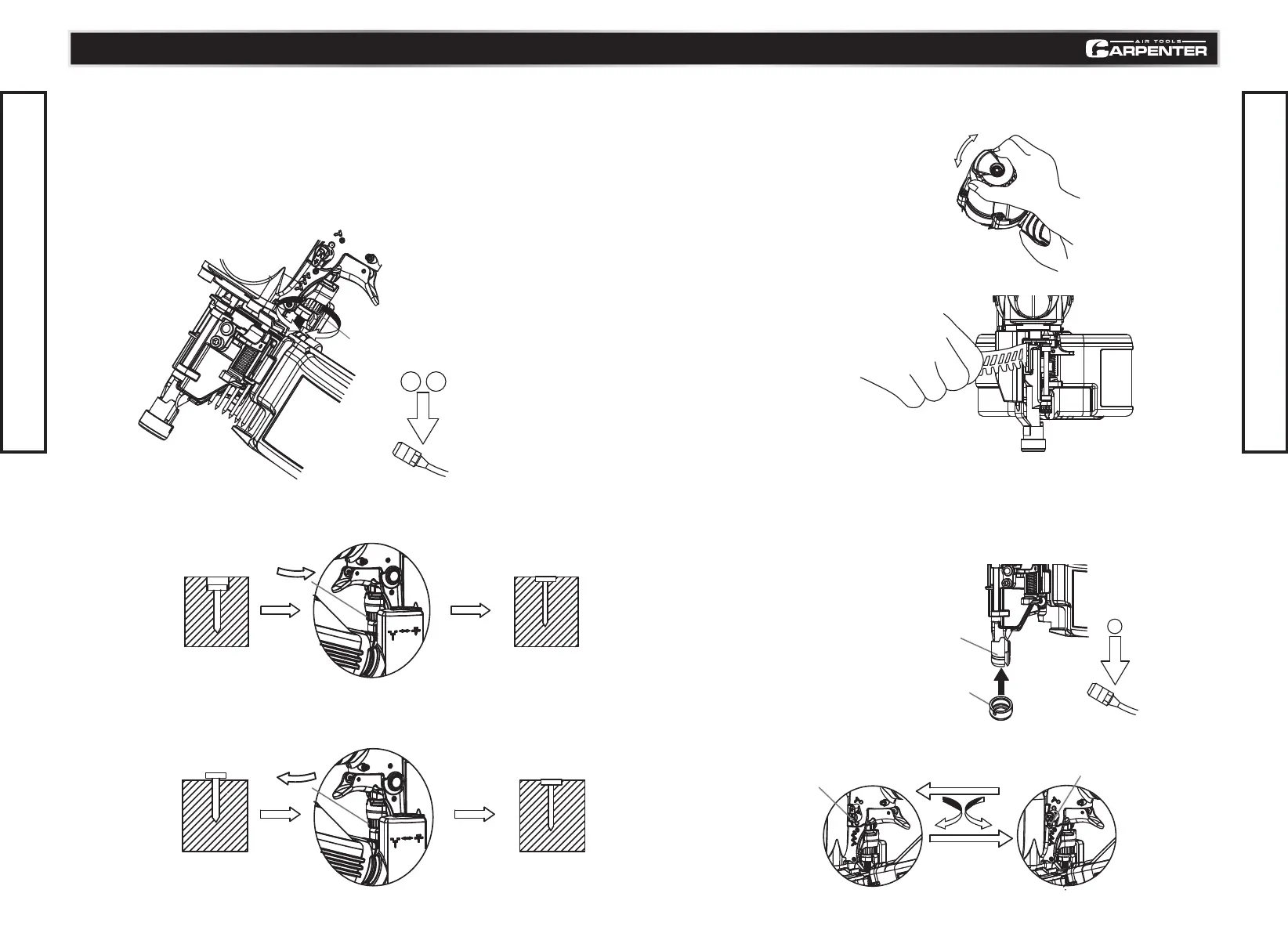

ADJUSTING THE NAILING DEPTH
To assure that each nail penetrates to the same depth,be sure that:
⑴ The air pressure to the Nailer remains constant(regulator is installed and
working properly).
⑵The Nailer is always held firmly against the workpiece.adjust the nailing
in the following order.
①DISCONNECT AIR HOSE FROM NAILER.
CHANGING THE EXHAUST DIRECTION
The direction of the exhaust vent can be changed by turning the top cover
CUTTING OFF THE SHEET
Tear off the output sheet in the direction of the arrow when using the sheet collated nails.
USING THE NOSE CAP
Change the Method Of Operation
If you like to protect the surface of workpiece against scratches or markings made by the push lever,
attach the accessory nose cap to the push lever.
①DISCONNECT AIR HOSE FROM NAILER.
②Put the nose cap to the toe of the push lever.
NOTE:
●The nose cap may reduce nailing depth due to its thickness .Re-adjustment of nailing depth is
required.
②If nails are driven too deep,turn the adjuster to the shallow side.
Adjustments are in half-turn increments.
If nails are driven too shallow,turn the adjuster to the deep side.
Model No. CCN65Z contact us 1-888-666-1887
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Adjuster
5
1
Do not connect
air hose
Push Lever
Nose Cap
1
Do not connect
air hose
Bump
Sequential
To Next Page
