MAINTENANCE
WARNING
NOTE: The information contained in this Manual is designed to assist you in the safe
maintenance of the Nailer.
Some illustrations in this Manual may show details or attachments that differ
from those on your own Nailer.

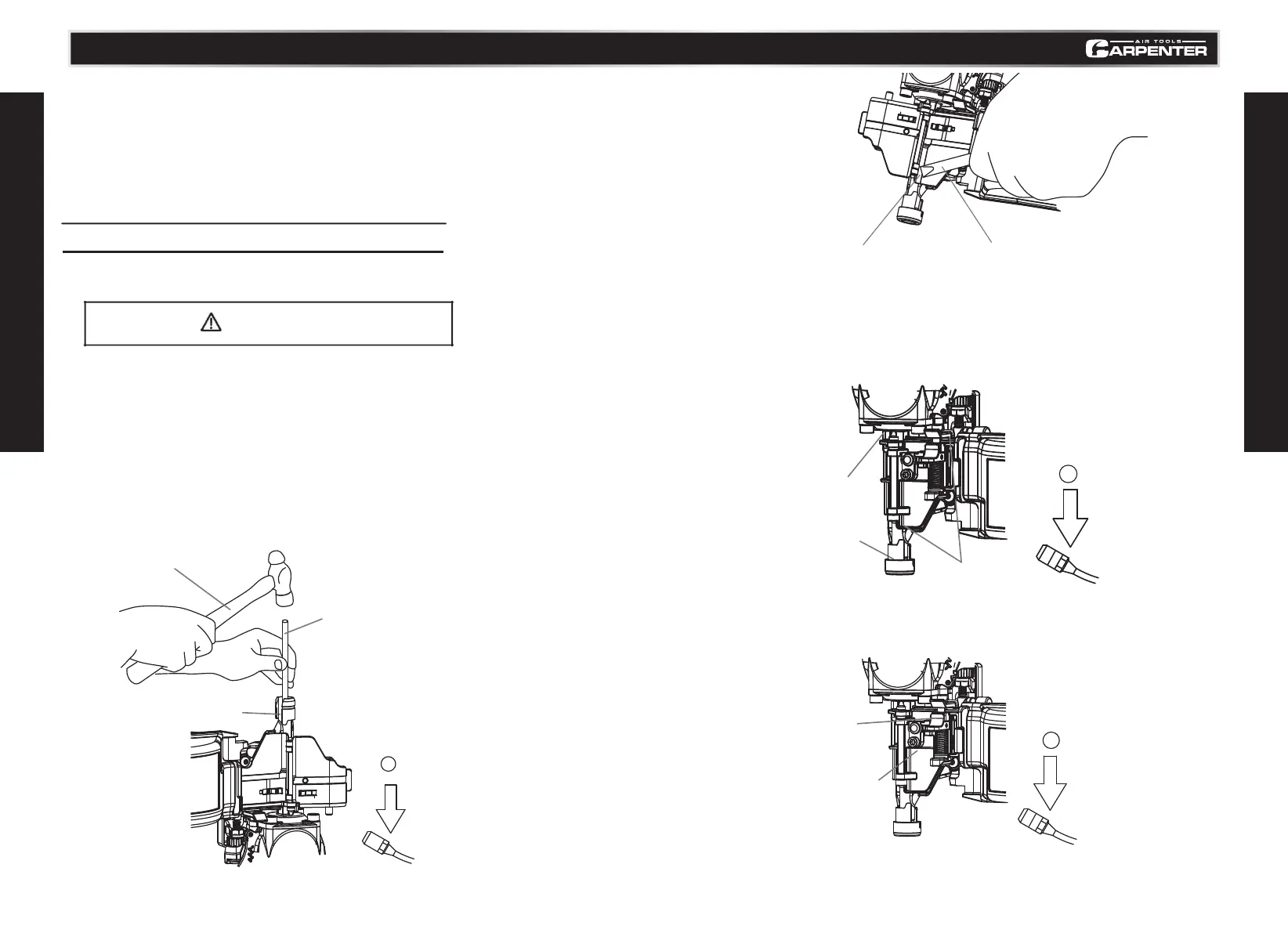

1. Clearing a jam
Remove a jammed nail in the following order:
(1) DISCONNECT AIR HOSE.
(2) Open the nail guide.
Insert a rod into the outlet.
Tap the rod with a hammer.
Remove the jammed nail with a slotted screw driver.
Open the nail guide and remove dust. Lubricate the sliding groove of the feeder and shafts.
Read section titled “SAFETY” (pages 4 – 6).
Disconnect air hose and remove all nails from
Nailer when doing maintenance and inspection and
clearing a jam.
MAINTENANCE AND INSPECTION
2. Inspecting the push lever
⑴ DISCONNECT AIR HOSE.
⑵ Clean the push lever sliding part.
Lubricate it with lubricant.
⑶ Cut the deformed collated with nippers. Correct the deformation.
In case of frequent jam, contact Canpenter authorized service center.
3. Inspecting the feeders
⑴ DISCONNECT AIR HOSE.
⑵ Clean the knob sliding part.
Lubricate it with lubricant.
