SERVICE AND REPAIRS
CAUTION
WARNING
Only service personnel trained by Carpenter, distributor or employer shall repair the Nailer.
Use only parts supplied or recommended by Carpenter for repair.
All quality Nailers could eventually require servicing or replacement of parts because of wear from
normal use.
NOTE: Specifications are subject to change without any obligation on the part of Carpenter.
Maintenance chart (See page 26)
Operator troubleshooting (See page 26)
Check that nail stopper (A) and nail stopper (B) slide smoothly by pusing them with nger.
If not smooth, nails can be driven at an irregular angle and hurt someone.
Lubricate the feeding surfaces of the nose and the nail guide after cleaning.
This promotes smooth operation and prevents rust.
4. Inspecting the magazine
⑴ DISONNECT AIR HOSE.
⑵ Clean the magazine. Remove dust or wooden tips which may have
accumulated in the magazine.
5. Storing
When not in use for an extended period, apply a thin coat of the lubricant to the steel parts
to avoid rust.
Do not store the Nailer in a cold weather environment. Keep the Nailer in a warm area.
When not in use, the Nailer should be stored in a warm and dry place.
Keep out of reach children.
6. WARNING LABEL
Change the WARNING LABEL if missing or damaged. A new WARNING LABEL is available from a
Carpenter authorized service center.
Warning
Label
Model No. CCN65Z contact us 1-888-666-1887
MAINTENANCE
MAINTENANCE

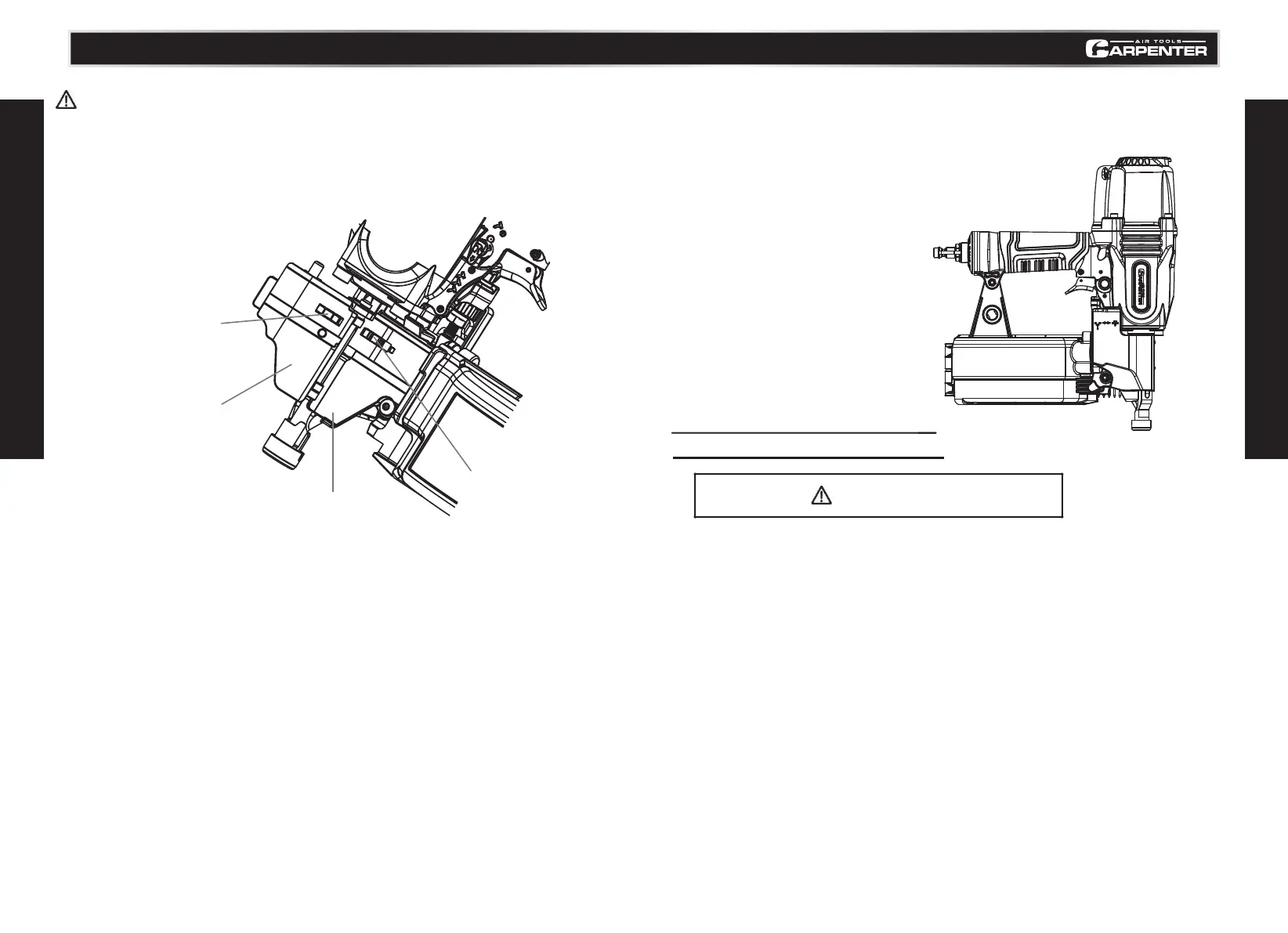

Nail guide
