Carpigiani K 3 User’s guide
This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc Page 38 of 63
Version 5: October 2012
A

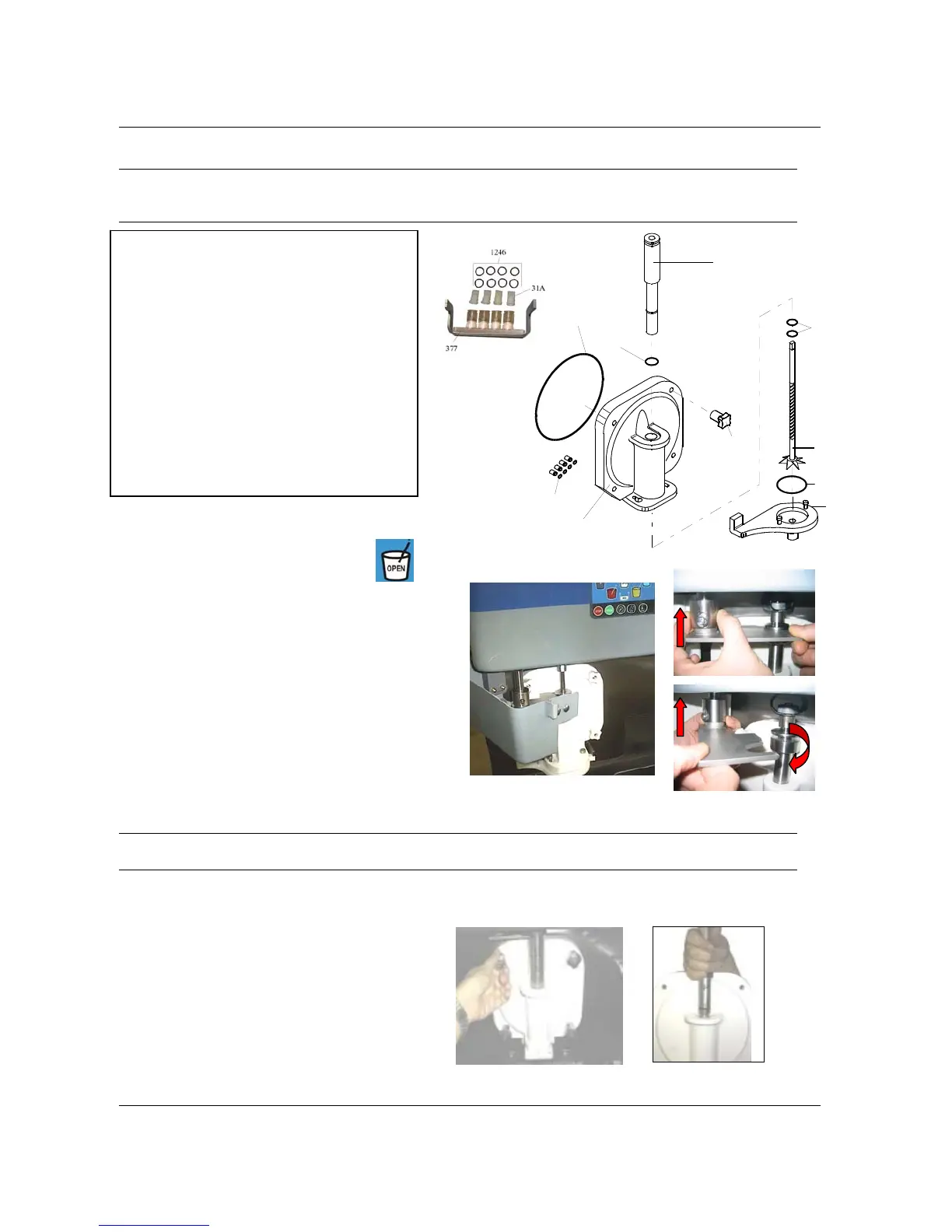

6.1.4 DISASSEMBLING OF THE SHAKE DISPENSING DOOR
CAUTION
Before disassembling the dispensing head, make sure that the hopper and
the cylinder are completely drained.
Pos. Description
7A Dispensing door
8A Hand screws
30A Piston
31A Syrup duck bill valves
369 Spinner
370 Spout cap
377 Syrup valves support
1109 O-ring
1195 O-ring
1130 O-ring
1142 O-ring
1240 O-ring
1246 O-ring
step 1
With the machine in STOP mode, push
button
to open the piston
step 2
Open the protection cover (ref. C).
step 3
Slide the cylinder up with the fingers (ref. A) and turn
the bracket clockwise (ref. B).
Step 4
Remove the cup holder.
Step 5
Twist the spout cap (#370) clockwise then pull it
down in order to remove it (the warning IMSB OPEN
flashs on the display)
step 6
Slide the spinner out (#369).
CAUTION
Be careful not to drop the spinner: it may be seriously damaged.
step 7
Unscrew the four knobs retaining door (#8A) and remove the dispensing door from the four studs by pulling
it towards you. (Fig. 4)
step 8
Remove the valve block (#377) sliding it down.
step 9
Remove the 4 o-rings (#1109) from syrup outlet
on the front of the machine
step 10
Holding the dispensing door (#7A) straight up,
remove the piston by pulling it upward (Fig. 5).
1240
30A
369
1253
370
1130
1195
7A
8A
1109
B
C
4 5
