Carpigiani K 3 User’s guide
This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc Page 39 of 63
Version 5: October 2012
step 11
Using the O-ring extractor, remove:
a) the piston O-ring (#1130).
b) the door O-ring (#1195).
c) the 2 piston housing O-rings (#1240) located inside the dispensing door.
d) the spout cap plate O-ring (#1253).
e) Remove the duck bill valves and the 8 o-rings (#1246) of the syrup valve block.

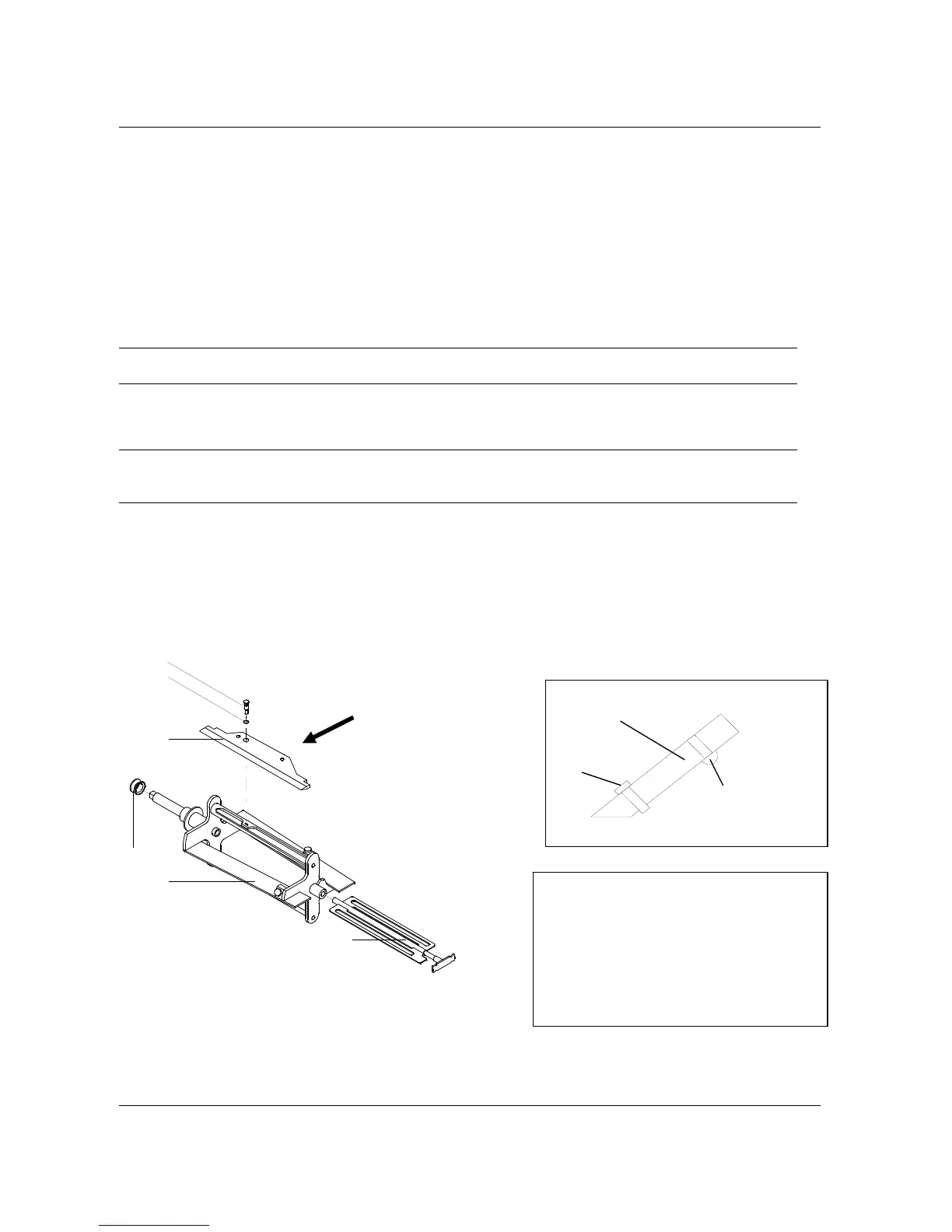

6.1.5 DISASSEMBLING OF THE SHAKE CYLINDER’S BEATER
step 1
Remove the shake beater (#21) from the cylinder pulling it towards you.
CAUTION!
Be careful not to hit the cylinder walls with the shaft of the beater when pulling it out.
step 2
Slide the beater seal (#28) out of the beater shaft.
CAUTION!
Make sure that the beater seal is in its place and be careful not to lose it and to reassemble it after
washing.
step 3
Remove the idler (#24A) from the beater frame (#21A).
step 4
Remove the beater blade pin (#726) pulling it upward and remove the blade (#430). Carpigiani suggests to
replace the blade once a year (please see the tune-up kit card).
step 5
Remove the pin O-ring (#1271)..
