Carpigiani K 3 User’s guide
This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc Page 43 of 63
Version 5: October 2012

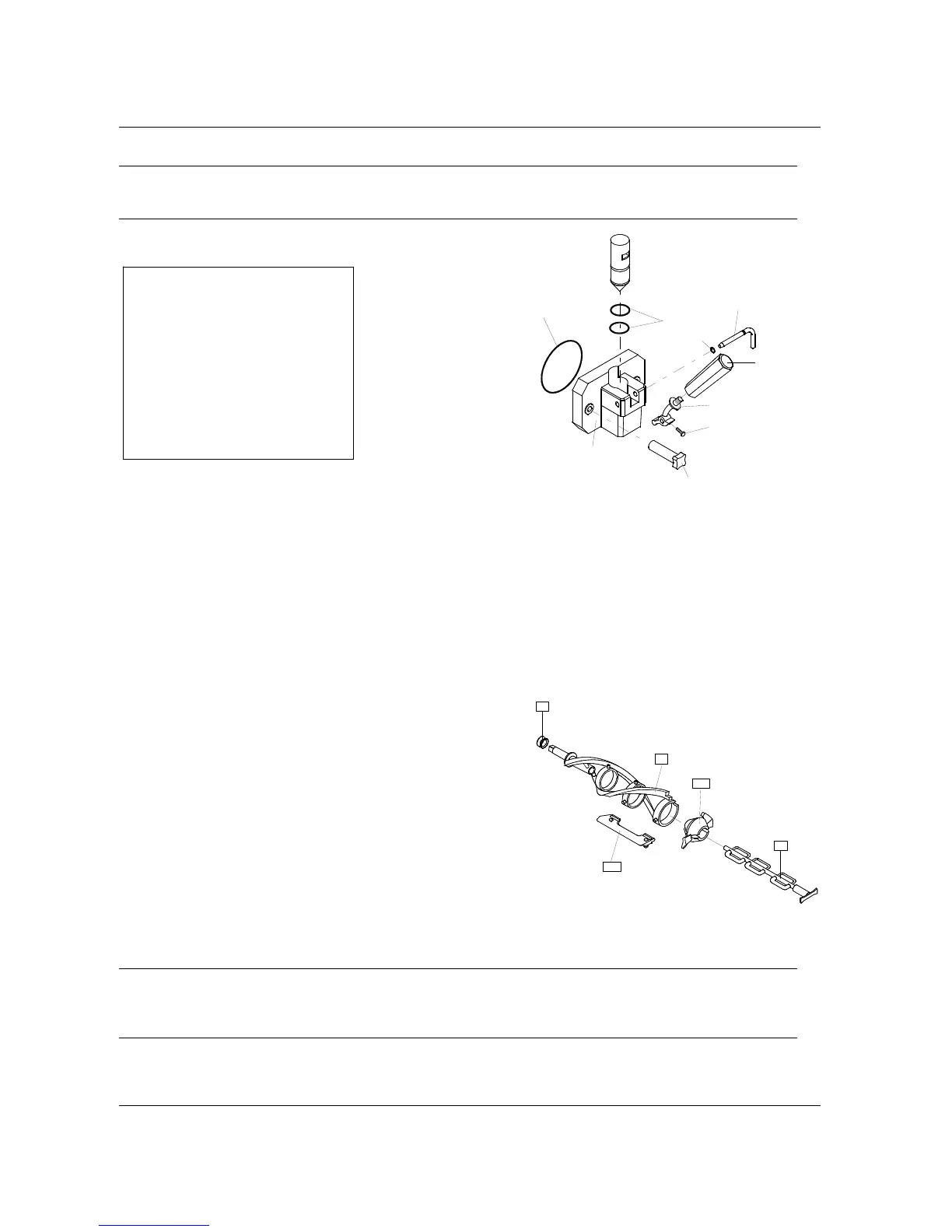

6.2.3 DISASSEMBLING OF THE SUNDAE DISPENSING DOOR
CAUTION
Before disassembling the dispensing head, make sure that the hopper
and the cylinder are completely drained.
step 1
With the machine in STOP mode, remove two retaining knobs (#8) and pull the door assembly towards you
sliding it off the two front panel studs.
step 2
Remove the pivot O-ring (#1289)
step 3
Pull the dispensing handle (#5) so the piston (#30) raises in its housing and pull the pivot pin (#6) out
releasing the dispensing handle (#5).
step 4
Using the dispensing handle lever, pull the piston (#30) out completely .
step 5
Using the o-ring extractor, remove:
a) the 2 piston O-rings (#1153)
b) the large dispensing door O-ring (#1188).
6.2.4 DISASSEMBLING OF THE SUNDAE BEATER
step 1
Pull the beater (#21) out of the cylinder.
step 2
Slide the beater seal (#28) out of the beater shaft.
step 3
Pull out and remove the end pusher (#25P) and the idler (#24).
step 4
Remove the 3 beater blades (#430). Carpigiani suggests to replace the blades each 6 months (please see the
tune-up kit card).
CAUTION
The beater seal is very important. It must be checked regularly for wear and tear. It must always be
on the beater shaft and properly lubricated, during operation, otherwise mix will leak in the drip
tray.
Pos. Description
5 Dispensing handle
6 Handle pin
7 Soft serve door
8 Handscrews
30 Dispensing piston
43 Piston lever
1153 O-ring
1188 O-ring
1289 O-ring
1188
7
1289
214
43
5
6
1153
8
28
21
24
25P
430
