Carpigiani K 3 User’s guide
This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc Page 46 of 63
Version 5: October 2012

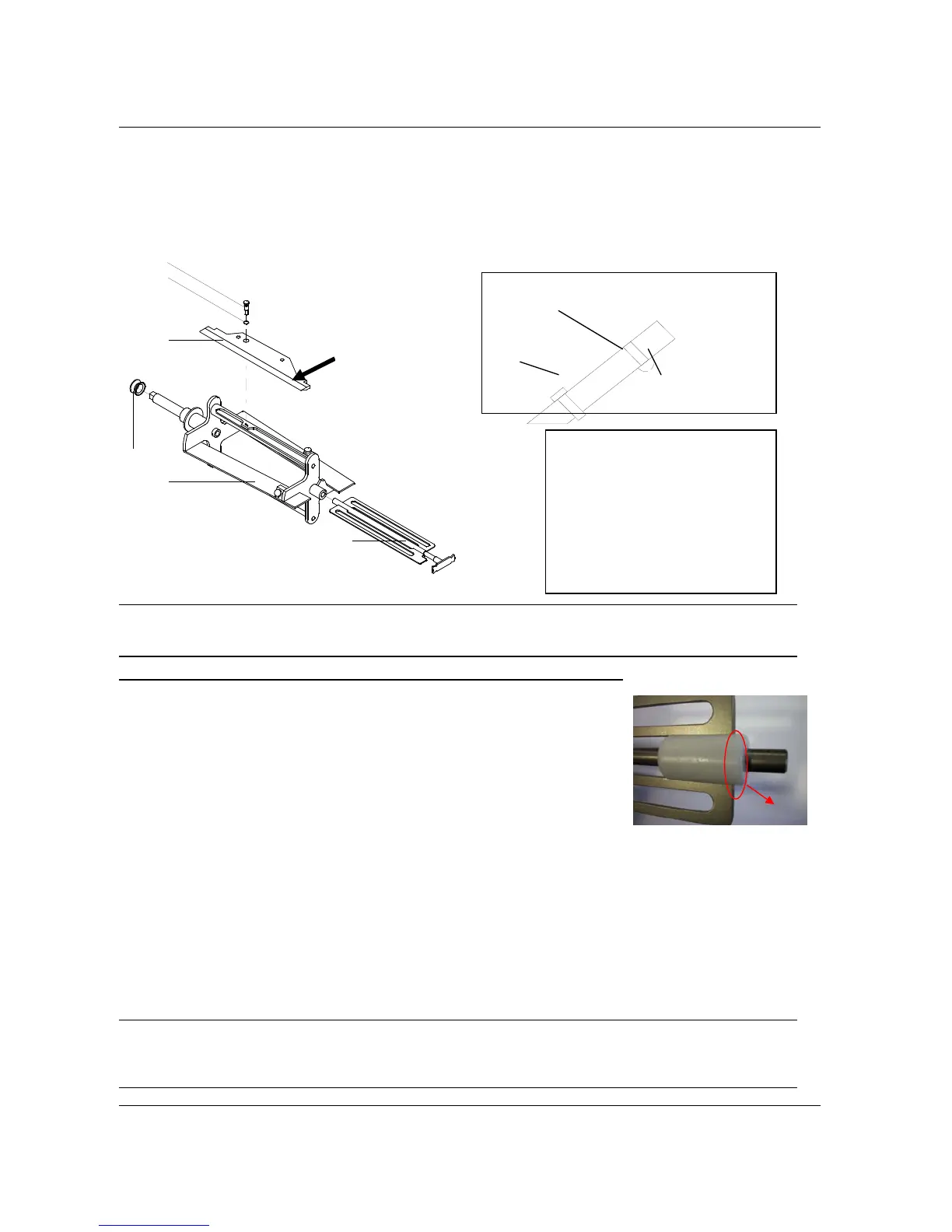

6.4 REASSEMBLY OF WASHED AND SANITIZED COMPONENT PARTS
6.4.1 REASSEMBLY OF THE SHAKE CYLINDER BEATER
step 1
Lubricate the blade pin O-ring (#1271) and slide it onto the pin (#726).
CAUTION!
Check the rubber stoppers onto the blade for integrity. Replace if worn or damaged.
Carpigiani suggests to replace the blade once a year (please see the tune-up kit card).
WARNING
Like all moving parts, the complete beater is also subject to wear and tear.
For this reason, we recommend checking the amount of wear to parts in
direct contact with one an-other (beater/beater idler and beater/cylinder
walls) on a regular basis during scheduled cleaning operations and in any
case, every six months of machine operation.
In particular, make sure that the wear on the bushing on the beater idler is
no more than 2 mm, as indicated by the marking on the bushing itself. If
there is more than 2 mm wear, it is necessary to replace the beater idler.
step 2
Place the blade (#430A) in its housing on the beater (#21A) aligning the pin hole with the hole on the
beater. Secure the blade (#430A) onto the beater (#21A) inserting the beater blade pin (#726) into the
blade and the beater hole. The head of the rubber stoppers should rest on the beater frame.
step 3
Replace the idler (#24A) in the beater frame (#21A) first inserting the front shaft into the slot of the beater front housing
and then inserting the idler shaft into the rear housing. Push it towards the back, otherwise the idler may fall out.
step 4
Lubricate the sides of the beater seal (#28A) and slide it onto the beater shaft.
CAUTION!
The beater seal is very important. It must be checked regularly for wear and tear. It must always be
on the beater shaft and properly lubricated, during operation, otherwise mix will leak in the drip
tray.
A
Pos. Description
21A Beater
24A Counter beater
28A Beater seal
430A Beater blade
726 Beater blade pin
1271 O-ring
Rubber stoppers
Beveled
blade
Pin
A
21A
24A
28A
1271
726
430A
Marking line
