Insert the beater assembly into the cylinder, push it to the end and rotate it slightly until its shaft enters the
rear hub: the self adjusting blade should be inside the rim of the cylinder.

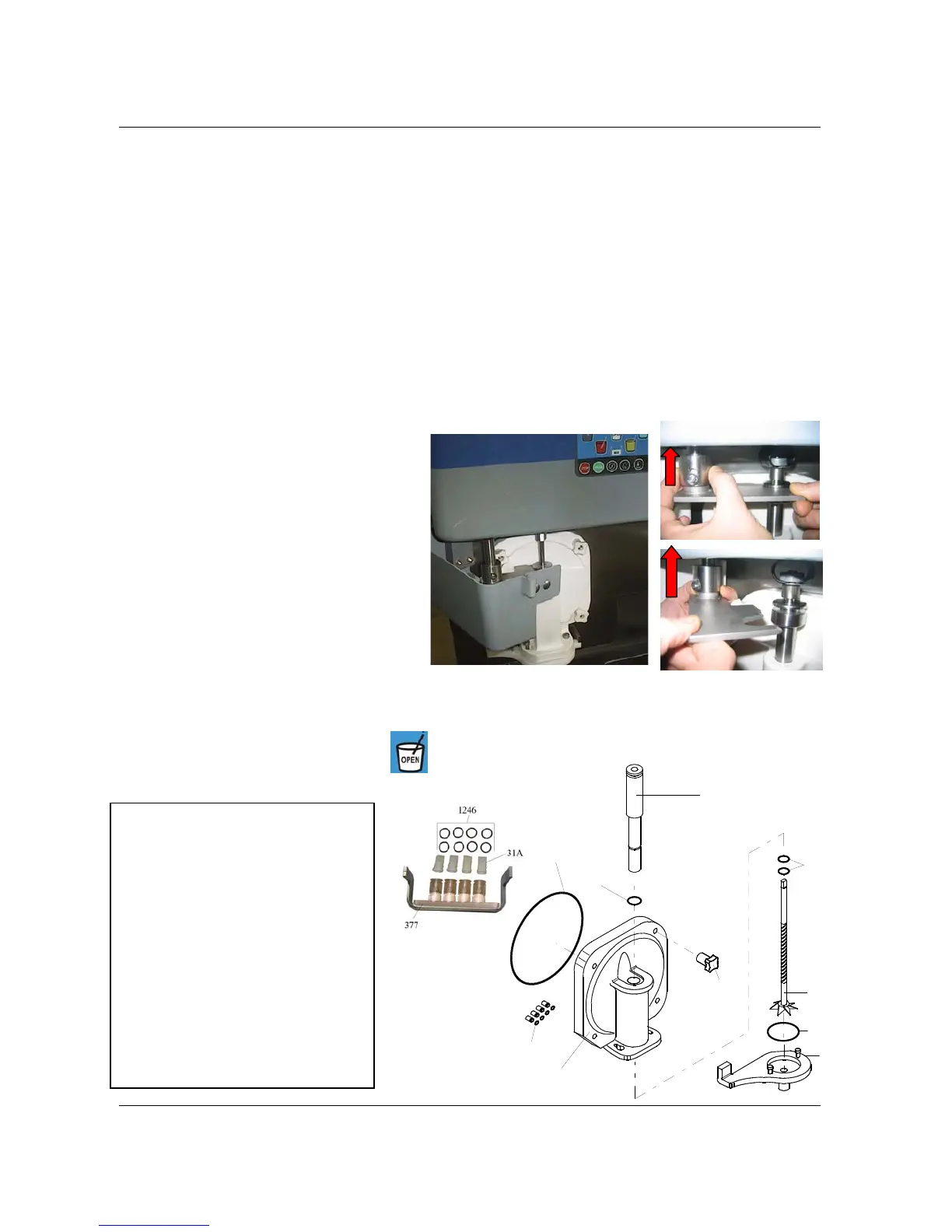

6.4.2 REASSEMBLY OF THE SHAKE DISPENSING DOOR
step 1
Lubricate and replace the 4 syrup outlet o-rings (#1109) on the front panel of machine.
step 2
Lubricate the O-rings and replace them in their respective position i.e.:
a) Replace the 8 o-rings (#1246) on the syrup distribution block (#377),
b) Replace the 4 duck bill valves (#31A) on the syrup distribution block (#377),
c) Replace the syrup distribution block (#377) in its position on the front panel of the machine,
d) Replace the 2 piston housing O-ring (#1240) in the dispensing door,
e) Replace the O-ring (#1130) on the piston,
f) Replace the O-ring (#1195) on the dispensing door,
g) Replace the O-ring (#1142) on the spinner plate
step 3
Holding the dispensing door (#7A) upward,
lubricate and replace the piston (#30A) in its
position in the front door.
step 4
Fit the dispensing door (#7A) in the four front
panel studs and fasten it with the four knobs (#8A)
hand-tightening them in alternate sequence.
step 5
Lubricate the spinner shaft and insert the
spinner (#369) into its housing.
step 6
Mount the spinner plate (#370).
step 7
Move up the spigot piston, slide up the cylinder
(ref. A) and close the bracket (ref. B) on the
piston.
step 8
Close the protection cover (ref. C). Ensure cover is closed properly otherwise the machine will not operate.
step 9
With the machine in STOP mode push the
button to close the piston.
Pos. Description
7A Dispensing door
8A Hand screws
30A Piston
31A Syrup duck bill valves
369 Spinner
370 Spout cap
377 Syrup valves support
1109 O-ring
1195 O-ring
1130 O-ring
1142 O-ring
1195 O-ring
1240 O-ring
1246 O-ring
1240
30A
369
1253
370
1130
1195
7A
8A
1109
