6.4.2.1 Shake side warning – When using only 3 syrups.

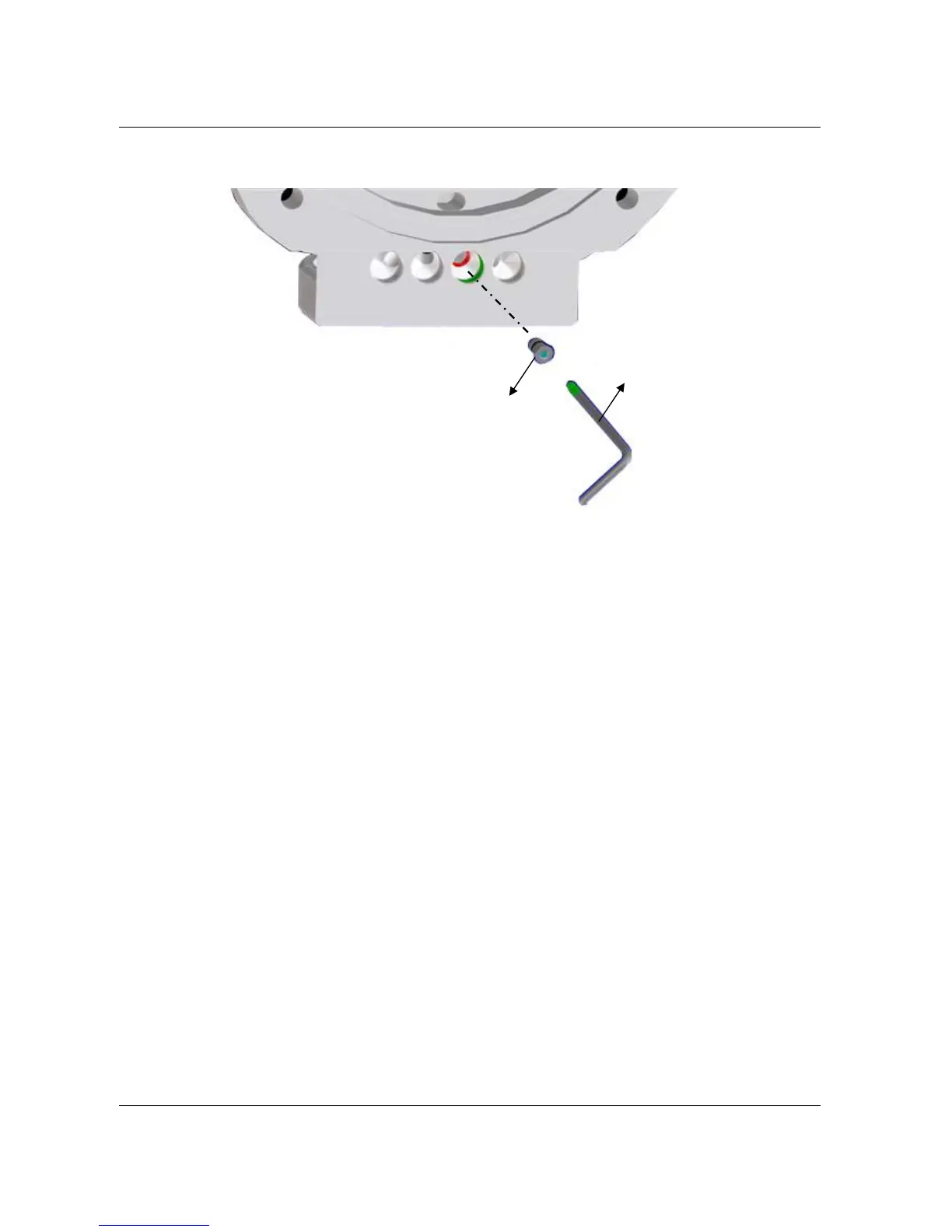

In case you are using only 3 syrup flavours, you should close the hole of the front lid using the tap ref. 1
delivered with the accessories.
This step can fit only in the hole indicated by X in the fig.
To block it firmly use the key ref. 2.
By doing so, the forth syrup flavour that corresponds to the blue cup button becomes disabled.
The tap and its o-ring should be disassembled, cleaned and sanitized during the periodical cleaning.
6.4.3 REASSEMBLY OF THE SHAKE MIX PUMP
step 1
Lubricate and replace the O ring (#1117) on the connection tube (#207).
step 2
Lubricate and replace the O-ring (#1131) and the duck bill valve (#31) on the pressure pipe (#32A).
step 3
Insert the connection tube assembly in the pressure pipe (#32A).
step 4
Place the pressure pipe in a sanitizing solution.
step 5
Insert the pump gears (#38-#38A) into the pump body (#39A).
step 6
Lubricate and replace the pump body O-ring (#1178).
step 7
Lubricate and replace the drive shaft seal (#243) into the pump body (#39A).
step 8
Lubricate and replace the O-ring (#1412) on the feeding tube (#271A).
step 9
Hold the pump cover (#202A) upside down and insert the back flow valve (#245) and spring (#206A) in
their pump cover housing.
