Carpigiani K 3 User’s guide
This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc Page 49 of 63
Version 5: October 2012
step 10
Insert the feeding tube (#271A) in the pump cover: push and turn it clockwise.
step 11
Lubricate the drive shaft (#96). Position drive shaft into the rear of mix hopper, pushing it towards the back
and rotating it slightly until it enters the drive hub. Hold the pump body assembly, with the blocking pin
hook on the right, keep your thumbs over the pump gears so that they remain in place, push and turn the
pump clockwise until the drive shaft mates with the driving gear. Now turn the pump counter clockwise until
it locks onto the blocking pin.
step 12

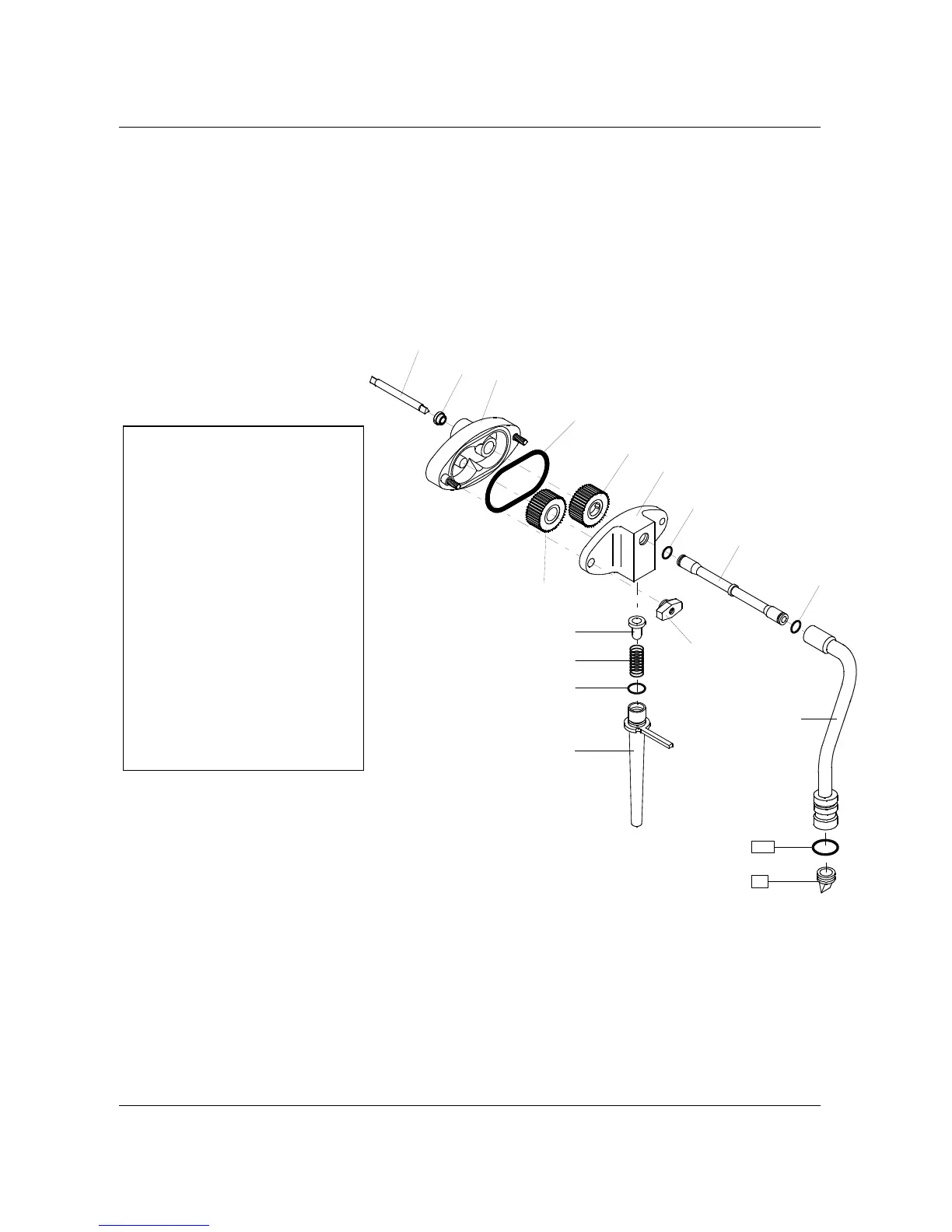

Assemble the pump cover (#202A) with the feeding tube downwards onto the pump body and turn the two
knobs (#8B) tightly
8B Hand screws
31 Check valve-slit
32A Pressure pipe
38 Driving gear
38A Driven gear
39A Pump body
96 Pump shaft
100 Shake chamber tube
202A Pump housing
206 Spring
207 Connection tube
271A Feeding tube
243 Seal-mix pump shaft
245 Pressure relief valve
1104 O-ring
1117 O-ring
1131 O-ring
1178 O-ring
1412 O-ring
1416 O-ring
202A
39A
38A
1178
1117
38
245
206A
1412
271A
207
1117
32A
1131
96
243
31
8B
