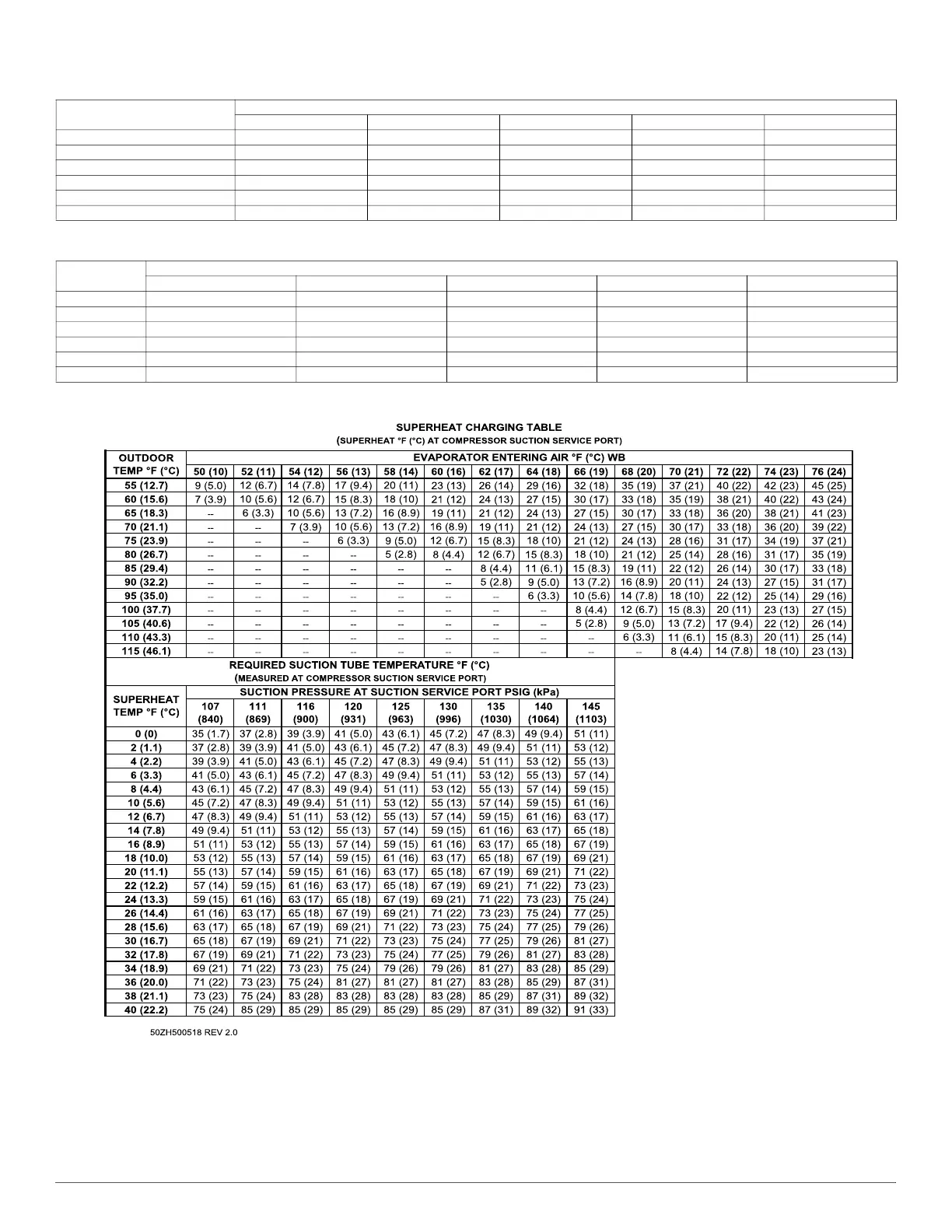

Table 6 – Superheat Charging
A10038
Table 5 – Minimum Airflow for Safe Electric Heater Operation
Air Conditioner
AC Unit Size
Minimum Airflow (CFM)
5 kW 7.5 kW 10 kW 15 kW 20 kW
24 600 750 750 X X
30 600 750 750 X X
36 600 750 750 1050 X
42 600 750 750 1050 X
48 600 750 750 1050 1400
60 600 750 750 1050 1400
Heat Pump
HP Unit
Size
Minimum Airflow (CFM)
5 kW 7.5 kW 10 kW 15 kW 20 kW
24 750 800 800 X X
30 750 800 800 X X
36 750 800 800 1200 X
42 750 800 800 1200 X
48 750 800 800 1200 1700
60 750 800 800 1200 1700
