Carrier 24ACB4 Series - Installation Clearances; Recommended Unit Clearances for Airflow

10
CLEARANCES

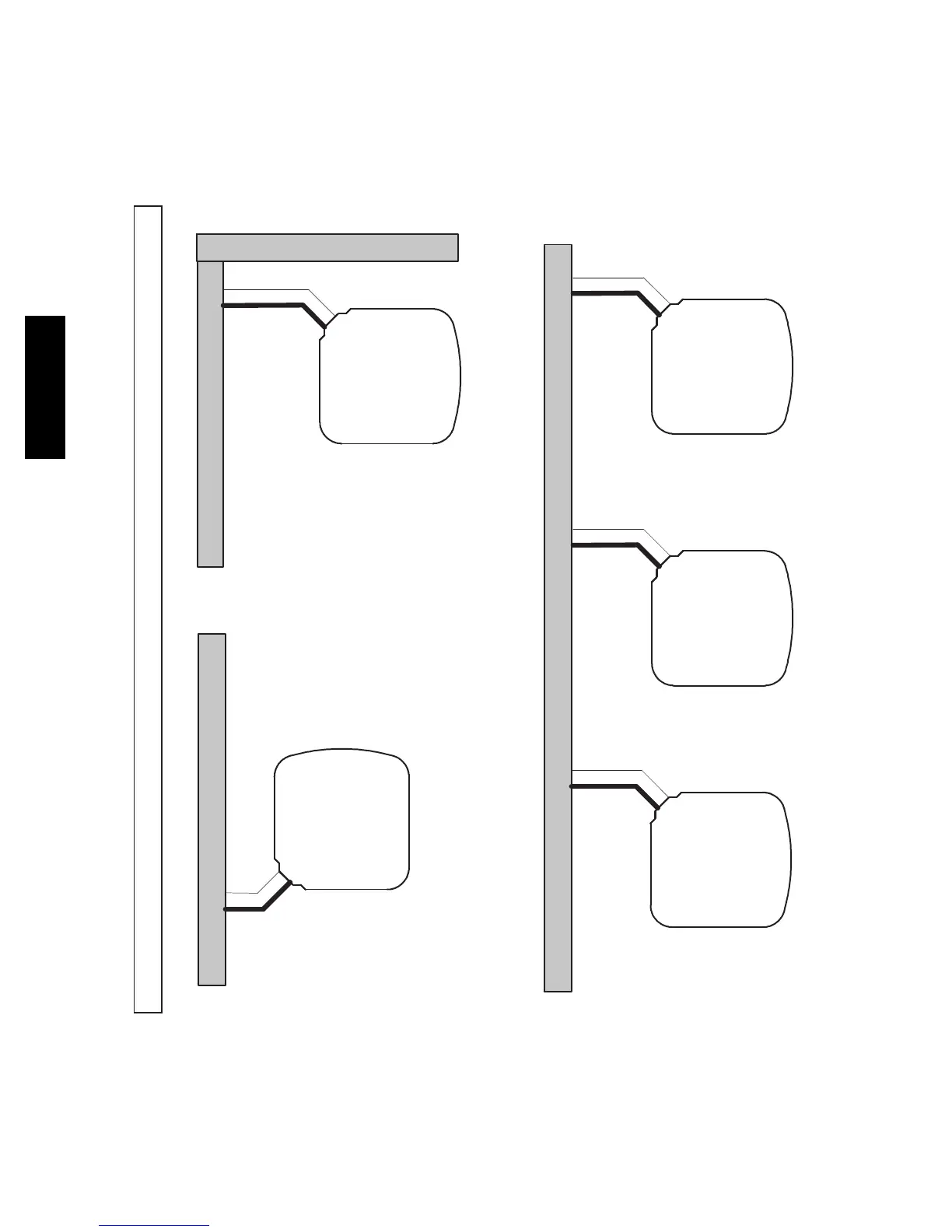

Clearances (various examples)
Wall
Wall
Wall
Wall
24”
Service
6”
(152.4 mm)
24”
(609.6)
Service
24”
(609.6)
Service
24”
(609.6)
Service
24”
(609.6)
Service
24”
(609.6)
24”
(609.6)
24”
(609.6)
12”
(304.8)
12”
(304.8)
12”
(304.8)
12”
(304.8)
6”
(152.4)
Note: Numbers in ( ) = mm
A07833
24ACB4
