13

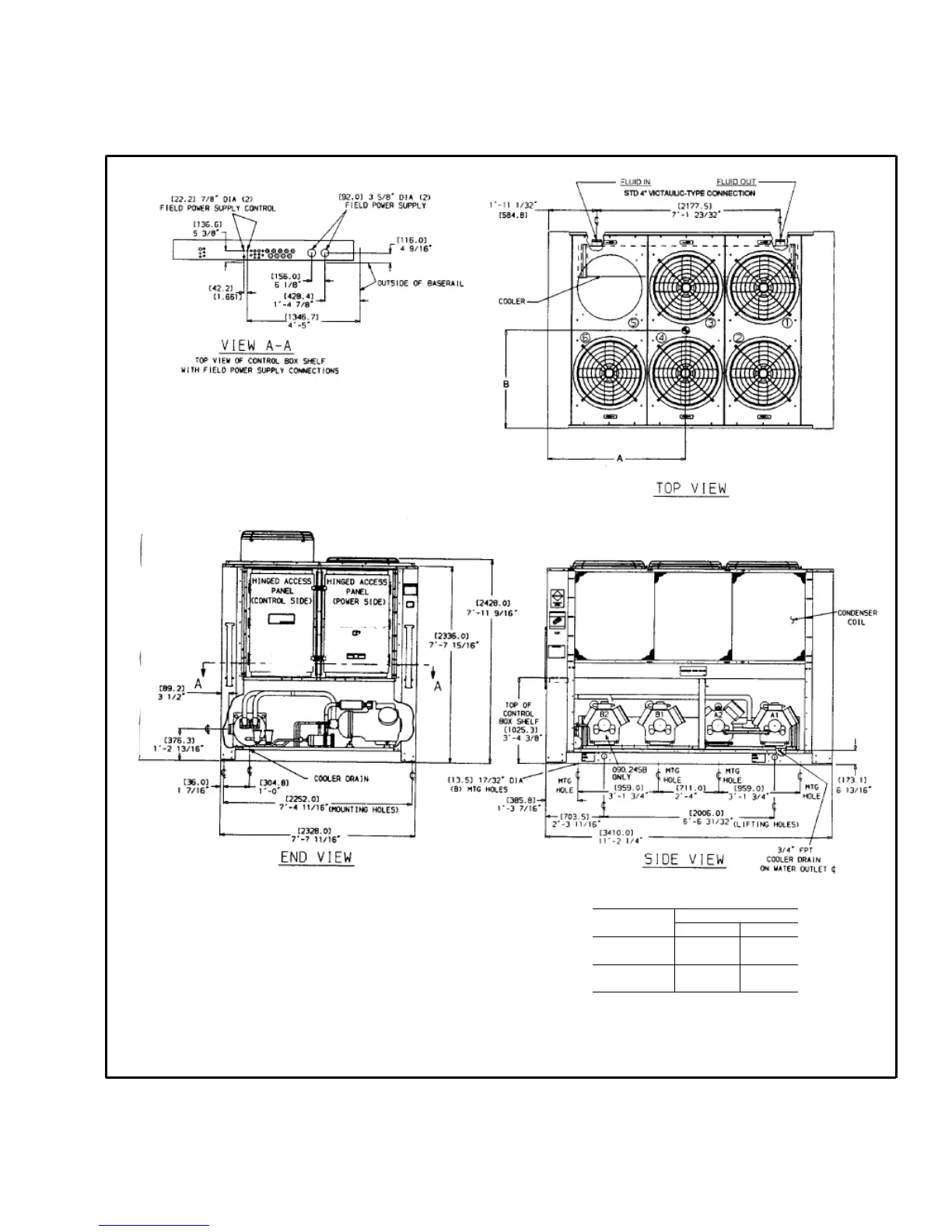

Base unit dimensions — 30GTN,GTR080,090
UNIT DIMENSIONS
30GTN,GTR “A” “B”
080
5’-9 5/8”
[1769]
3’-6”
[1067]
090
5’-7 5/16”
[1710]
3’-2 3/4”
[984]
NOTES:
1. Unit must have clearances for airflow as follows:
TOP – Do not restrict in any way.
ENDS – [1524] 5 ft
SIDES – [1829] 6 ft
2. Mounting holes may be used to mount unit to concrete pad.
They are not
recommended for spring isolator location.
3. If spring isolators are used, a perimeter support channel
between the unit
and isolators is recommended.
4. Dimensions in [ ] are millimeters.
