112 Specifications subject to change without notice. SG-38MARB-01

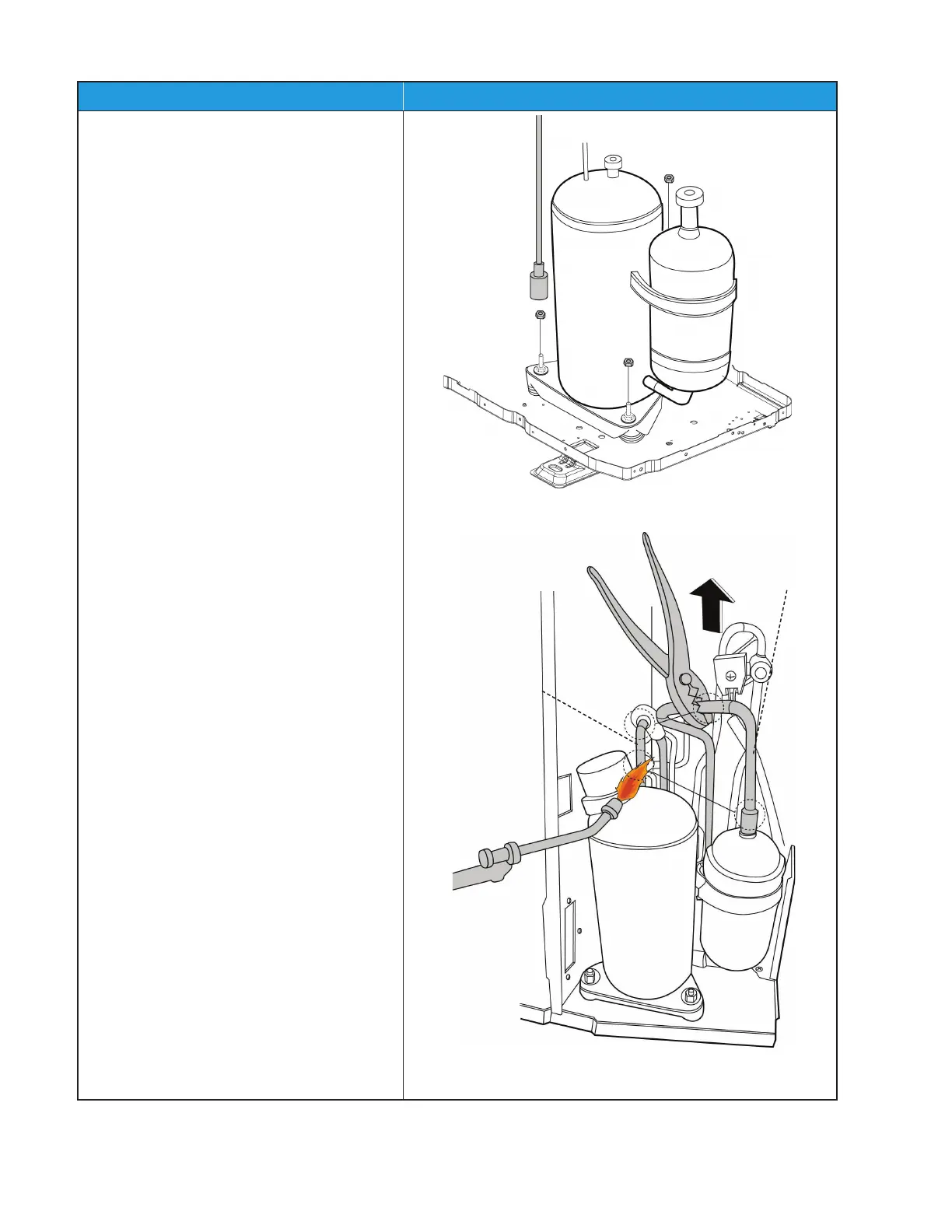

Procedure Illustration

3) Remove the hex nuts and washers securing

the compressor, located on the bottom

plate.

4) Heat up the brazed parts and then remove

the discharge pipe and the suction

pipe.

5) Lift the compressor from the base pan

assembly with pliers.

Discharge Pipe

Suction Pipe
