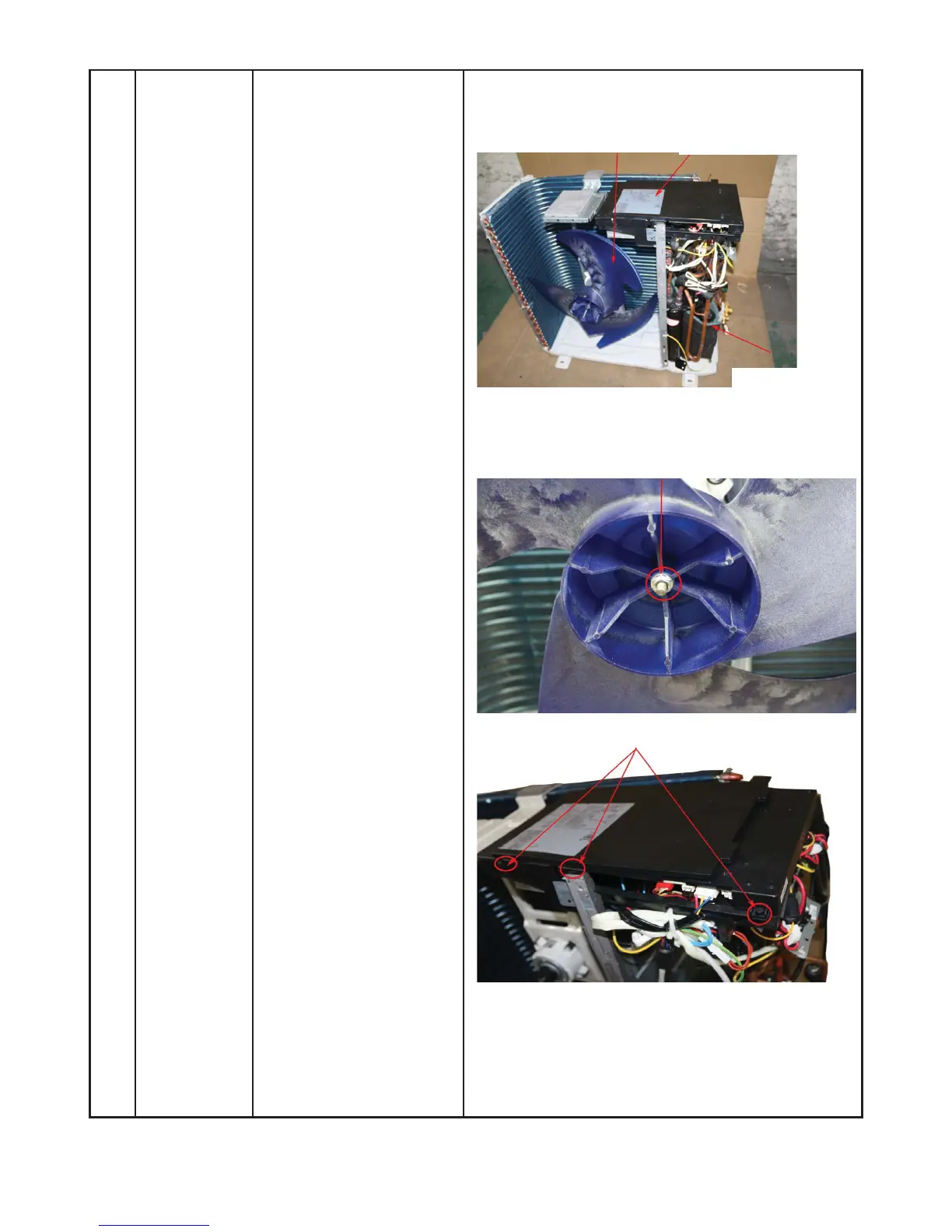

DISASSEMBLY INSTRUCTIONS SIZES 24K (208−230V) (CONT)
2 Fan
assembly
How to remove the fan
assembly.
1) Remove the panel
plate using the steps in
section 1.
2) Remove the nut
securing the fan, then
remove the fan.
3) Release the hooks and
remove the screws.
Open the electronic
control box cover.
ƻ
2
ƻ
3
Fan
Electronic control box
Compressor
