38VYM
R-410A
GB - 10
L N
UNIT A4
UNIT A3
UNIT A2
UNIT A1
32112312
3321321

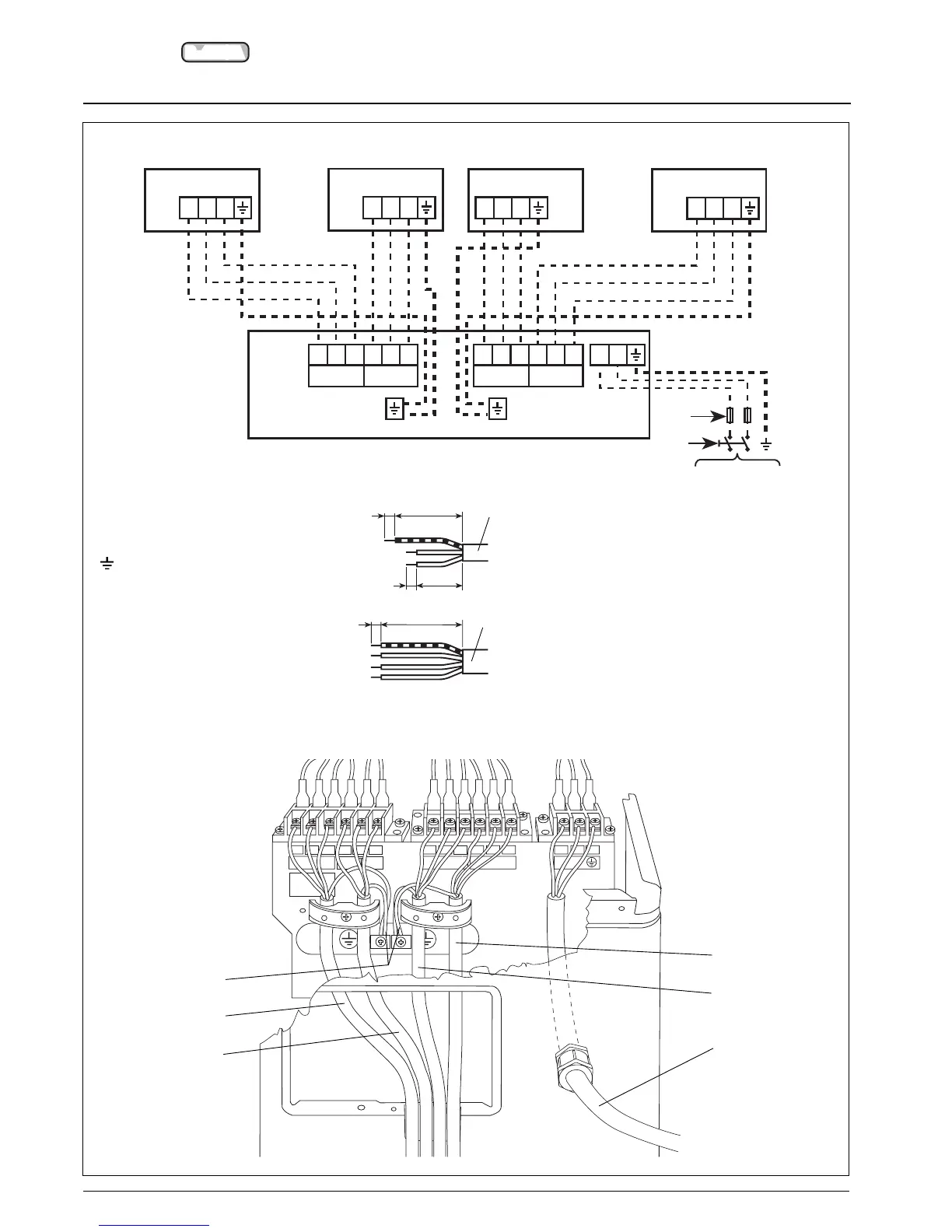

Electrical connections
Unit 38VYM-32
System 38VYM-32
L
N
230V ~ 50Hz
123123
A1 A2
123123
A3 A4
A4 123
A2 123
A1 123
A3123
10 80
50
10
10 40

Terminal box legend
Earth.
L Live power supply.
N Neutral power supply.
1 Connection indoor/outdoor unit.
2 Connection indoor/outdoor unit.
3 Connection indoor/outdoor unit.
Indoor unit
Outdoor unit
Main switch
Time-delay fuse or circuit breaker
(see table III "Electrical data").
Mains supply connecting cable (field wiring).
Connecting cable, indoor-outdoor units A1.
Connecting cable, indoor-outdoor units A2.
Connecting cable, indoor-outdoor units A3.
Connecting cable, indoor-outdoor units A4.
Earth line.
