Carrier 38VYM Series - Dimensions, Weight, and Clearances; Unit Dimensions and Weight; Minimum Installation Clearances

38VYM
R-410A
GB - 2

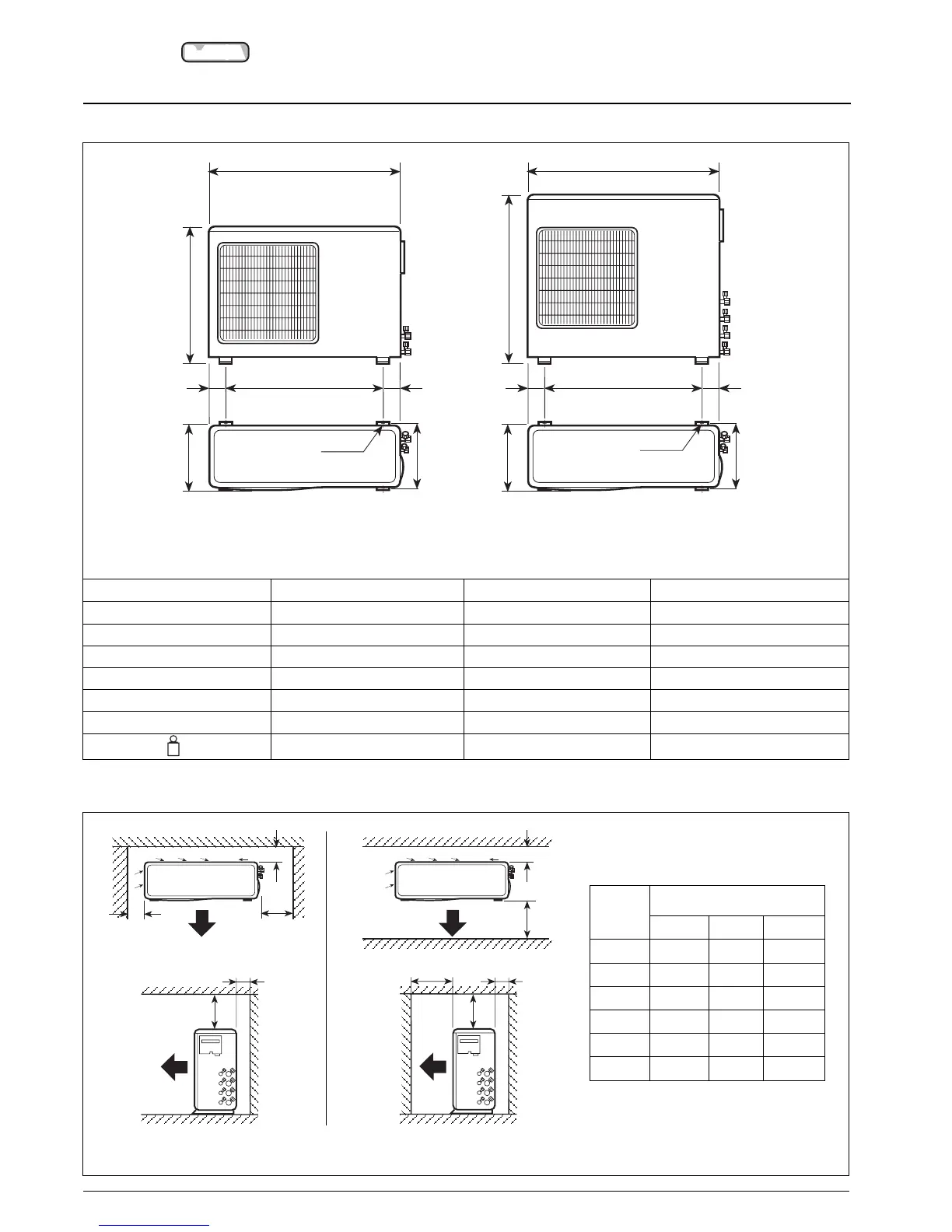

Dimensions, weight and minimum clearances
Dimensions and weight
Minimum clearances
B
A
C
D
E
F
A
F
DE
EED
B
C
F
A
Ø 8,5
EED
B
C
F
A
Ø 8,5
38VYM-18
Model 38VYM-18 38VYM-28 38VYM-32
A mm 800 800 800
B mm 590 800 800
C mm 300 300 300
D mm 508 508 508
E mm 146 146 146
F mm 330 330 330
kg
kg 50 64 65
38VYM-28 / 38VYM-32
Model
38VYM
18 28 32
A mm 100 100 100
B mm 250 250 250
C mm 500 500 500
D mm 100 100 100
E mm 670 670 670
F mm 400 400 400
Note:
For each installed system, the minimum clearance shown in the table only refers to the two configurations and arrangements illustrated.
