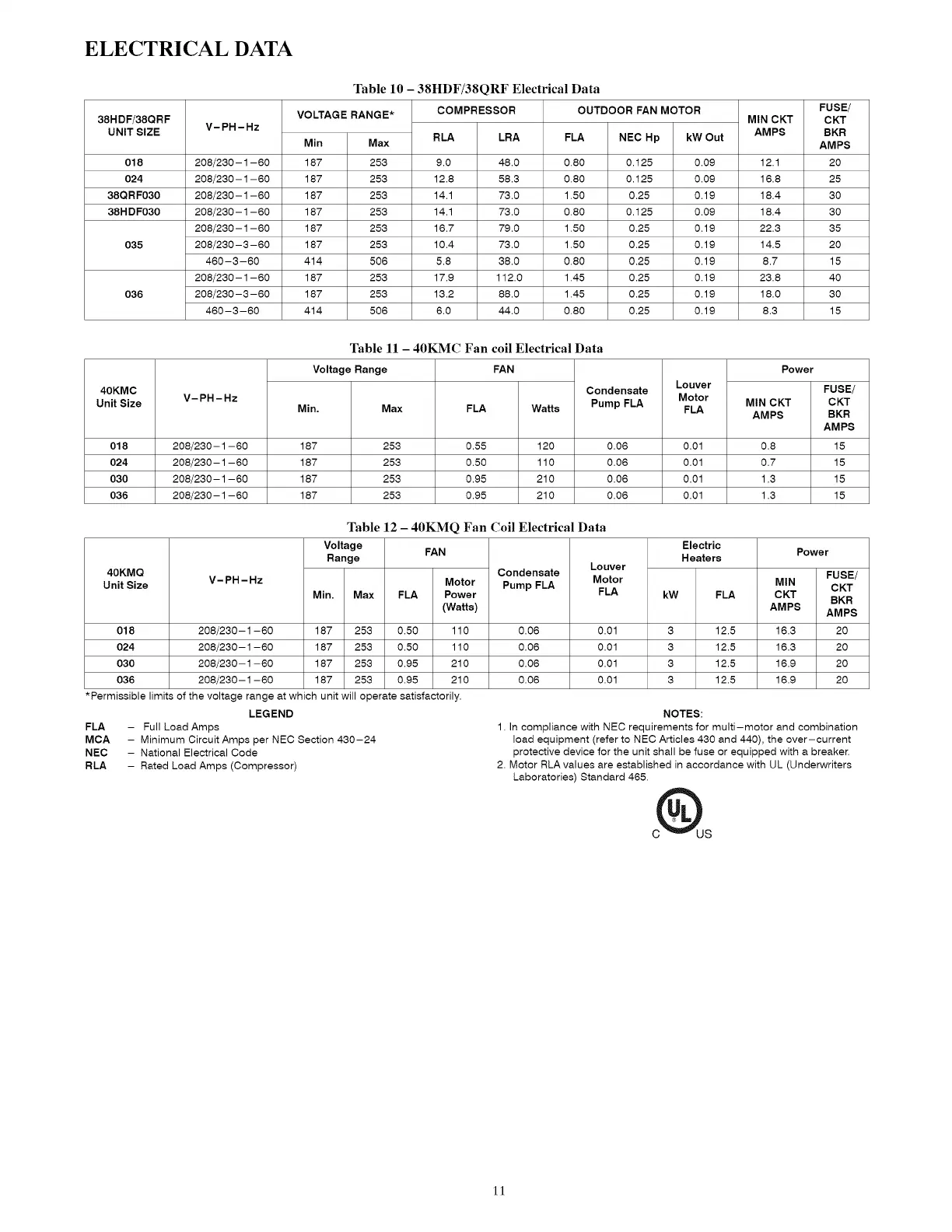

ELECTRICAL DATA
Table 10 —38HDF/38QRF Electrical Data
COMPRESSOR OUTDOOR FAN MOTOR FUSE/
38HDF/38QRF V-PH-Hz VOLTAGE RANGE* MIN CKT CKT
UNIT SIZE ven AMPS BKR
Min Max RLA LRA FLA NEC Hp kW Out AMPS
018 208/230 —1-60 187 253 9.0 48.0 0.80 0.125 0.09 12.4 20
024 208/230 —1-60 187 253 12.8 58.3 0.80 0.125 0.09 16.8 25
38QRF030 208/230 —1-60 187 253 14.4 73.0 1.50 0.25 0.19 18.4 30
38HDFO30 208/230 —1-60 187 253 14.4 73.0 0.80 0.125 0.09 18.4 30
208/230 —1-60 187 253 16.7 79.0 1.50 0.25 0.19 22.3 35
035 208/230-3-60 187 253 10.4 73.0 1.50 0.25 0.19 14.5 20
460—-3-—60 414 506 5.8 38.0 0.80 0.25 0.19 8.7 15
208/230 —1-60 187 253 17.9 112.0 1.45 0.25 0.19 23.8 40
036 208/230-3-60 187 253 13.2 88.0 1.45 0.25 0.19 18.0 30
460—-3-—60 414 506 6.0 44.0 0.80 0.25 0.19 8.3 15
Table 11 — 40K MC Fan coil Electrical Data
Voltage Range FAN Power
Louver
40KMC Condensate FUSE/
ee V-PH-Hz Motor
Unit Size : Pump FLA MIN CKT CKT
Min. Max FLA Watts FLA AMPS BKR
AMPS
018 208/230—1—60 187 253 0.55 120 0.08 0.01 0.8 15
024 208/230 —1-60 187 253 0.50 110 0.06 0.01 0.7 15
030 208/230 —1-60 187 253 0.95 210 0.06 0.01 1.3 15
036 208/230 —1-60 187 253 0.95 210 0.06 0.01 1.3 15
Table 12 —- 40KMQ Fan Coil Electrical Data
Voltage FAN Electric Power
Range L Heaters
ouver
40KMQ Condensate FUSE/
Unit Size V-PH-Hz Motor | Pump FLA Motor MIN CKT
Min. | Max | FLA | Power FLA kw FLA CKT
BKR
(Watts) AMPS | anaps
018 208/230 —1-60 187 253 0.50 110 0.06 0.01 3 12.5 16.3 20
024 208/230 —1-60 187 253 0.50 110 0.06 0.01 3 12.5 16.3 20
030 208/230 —1-60 187 253 0.95 210 0.06 0.01 3 12.5 16.9 20
036 208/230 —1-60 187 253 0.95 210 0.06 0.01 3 12.5 16.9 20
*Permissible limits of the voltage range at which unit will operate satisfactorily.
LEGEND NOTES:
FLA -
MCA -
NEC -
RLA -
Full Load Amps
Minimum Circuit Amps per NEC Section 430-24
National Electrical Code
Rated Load Amps (Compressor)
1. In compliance with NEC requirements for multi-motor and combination
load equipment (refer to NEC Articles 430 and 440), the over—current
protective device for the unit shall be fuse or equipped with a breaker.
2. Motor RLA values are established in accordance with UL (Underwriters
Laboratories) Standard 465.
11
