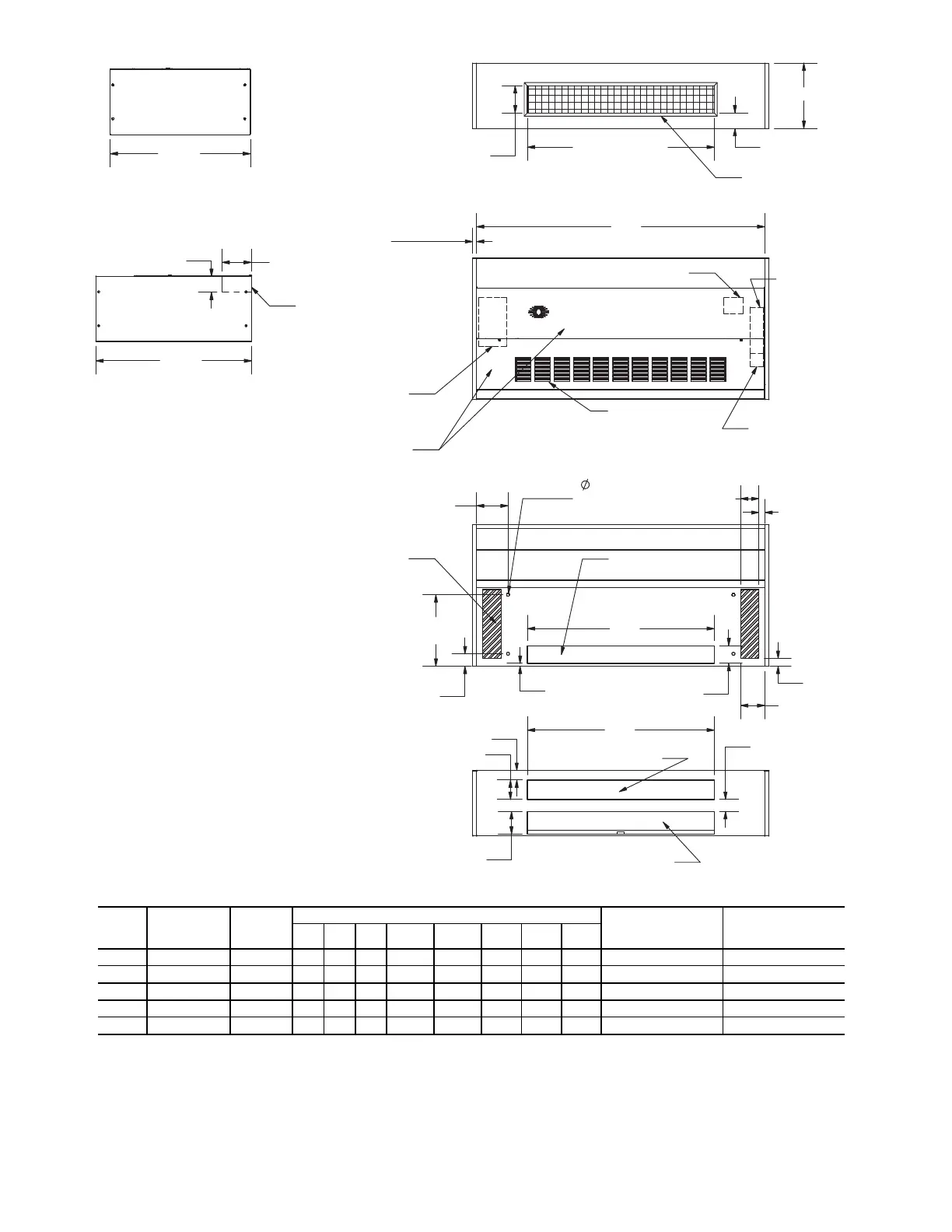

Fig. 6 — 40UH Dimensions — 39
1
/
2
-in. and 43
1
/
2
-in. Deep Unit with Front Discharge Plenum
(Digit Code #11 — Option D or E)
16.63
W3 (OPENING)
W5
(OPENING)
(TO OPENING)
LEFT SIDE VIEW
(SIZES 075 TO 150)
BOTTOM VIEW
REAR VIEW
DOUBLE DEFLECTION
DISCHARGE GRILLE
(OPTIONAL)
W4
(TYP)
2.10
(TYP)
W8
(TYP)
W2
0.92
4.50
.75
(MOUNTING HOLES-
TYP-4 PLACES)
6.75 (TYP)
1.00 (TYP)
W7
(TYP-SEE
NOTE 2)
3.27
(TYP)
TOP OUTSIDE AIR
OPENING (OPTIONAL)
REMOVABLE PANEL
(EACH EN
D)
FRONT VIEW
1.72
7.50
5.25
W2
1.75
REAR OUTSIDE AIR
OPENING (OPTIONAL)
REAR RETURN AIR
OPENING (OPTIONAL)
W1
1.00
(UNIT SHOWN
WITH 1.00"
END PANELS)
RETURN AIR
LOUVERED PANEL
(OPTIONAL)
MOTOR
ELECTRICAL
BOX
NON-FUSED
DISCONNECT
SWITCH
UV OPEN
CONTROLLER
(OPTIONAL)
BOTTOM SERVICE
PANELS
(SEE NOTE 3)
TOP VIEW
(SEE NOTE 2)
LEFT SIDE VIEW
(SIZE 200)
PIPE
TUNNEL
4.00
7.50
39.50
43.50
W6
UNIT
40UH
AIRFLOW
(cfm)
DEPTH
(in.)
DIMENSIONS (in.) APPROXIMATE
SHIPPING
WEIGHT (lb)
APPROXIMATE
INSTALLED
WEIGHT (lb)
W1 W2 W3 W4 W5 W6 W7 W8
075 750 36 62 36 36 21.86 7.00 2.31 8.00 4.75 500 485
100 1000 36 74 48 48 21.86 7.00 2.31 8.00 4.75 600 580
125 1250 36 86 60 60 21.86 7.00 2.31 8.00 4.75 740 720
150 1500 36 98 72 72 21.86 7.00 2.31 8.00 4.75 830 810
200 2000 40 98 72 72 30.00 10.00 1.44 8.07 4.00 1020 1000
NOTES:
1. All dimensions are in inches.
2. Dimension does not include end panels.
3. Two bottom panels provided for service
access.
4. Motor and electrical power input box on right
side of unit. Box includes fan speed switch,
and non-fused disconnect switch.
5. Connection hand is determined by facing
discharge of unit.
6. Drawing refers to design “F” series.
