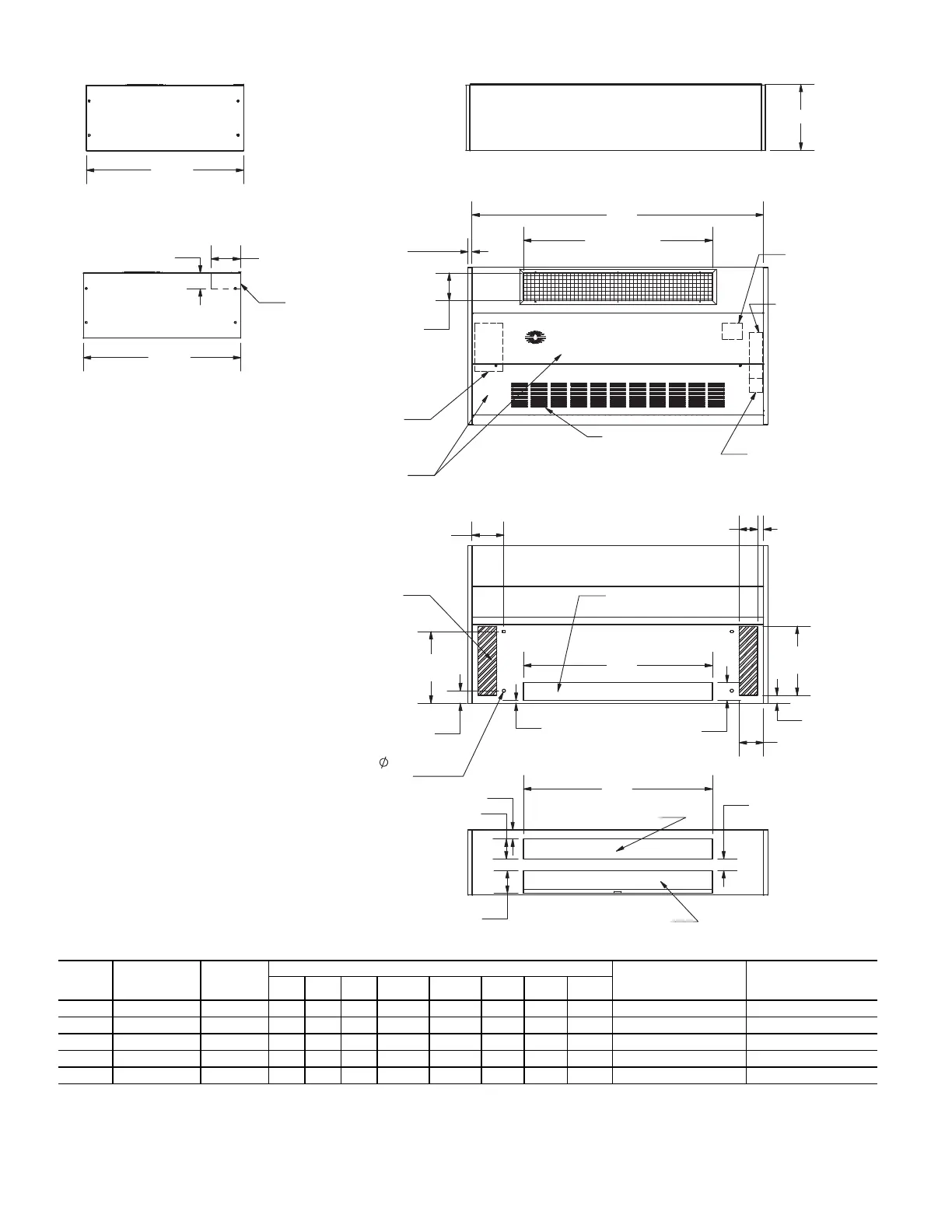

Fig. 7 — 40UH Dimensions — 43
1
/
2
-in. and 47
1
/
2
-in. Deep Unit with Down Discharge Plenum
(Digit Code #11 — Option F)
W4
(TYP)
W8
(TYP)
2.10
(TYP)
W7
(TYP)
W2
0.92
4.50
6.75 (TYP)
1.00 (TYP)
W6
(TYP-SEE
NOTE 2)
3.27
(TYP)
.75
(MOUNTING HOLES-
TYP-4 PLACES)
TOP OUTSIDE AIR
OPENING (OPTIONAL)
REMOVABLE PANEL
(EACH EN
D)
FRONT VIEW
BOTTOM VIEW
REAR VIEW
LEFT SIDE VIEW
(SIZES 075 TO 150)
1.72
7.50
5.25
W2
1.75
REAR OUTSIDE AIR
OPENING (OPTIONAL)
REAR RETURN AIR
OPENING (OPTIONAL)
1.00
(UNIT SHOWN
WITH 1.00"
END PANELS)
W1
W3
(OPENING)
W5 (OPENING)
RETURN AIR
LOUVERED PANEL
(OPTIONAL)
MOTOR
ELECTRICAL
BOX
NON-FUSED
DI
SCONNECT
SWITCH
UV OPEN
CONTROLLER
(OPTIONAL)
BOTTOM SERVICE
PANELS
(SEE NOTE 3)
43.50
16.63
TOP VIEW
(SEE NOTE 2)
LEFT SIDE VIEW
(SIZE 200)
PIPE
TUNNEL
47.50
4.00
7.50
NOTES:
1. All dimensions are in inches.
2. Dimension does not include end panels.
3. Two bottom panels provided for service access.
4. Motor and electrical power input box on right side of unit. Box
includes fan speed switch, and non-fused disconnect switch.
5. Connection hand is determined by facing discharge of unit.
6. Drawings refer to design “F” units.
UNIT
40UH
AIRFLOW
(cfm)
DEPTH
(in.)
DIMENSIONS (in.) APPROXIMATE
SHIPPING
WEIGHT (lb)
APPROXIMATE
INSTALLED
WEIGHT (lb)
W1 W2 W3 W4 W5 W6 W7 W8
075 750 40 62 36 36 21.86 7.00 8.00 4.75
17.5
530 515
100 1000 40 74 48 48 21.86 7.00 8.00 4.75
17.5
640 620
125 1250 40 86 60 60 21.86 7.00 8.00 4.75
17.5
790 770
150 1500 40 98 72 72 21.86 7.00 8.00 4.75
17.5
880 860
200 2000 44 98 72 72 30.00 10.00 8.07 4.00
17.4
1050 1030
