Carrier 42ADF035 - System Overview and Components; Indoor and Outdoor Unit Components Diagram

42ADF025, 42ADF035

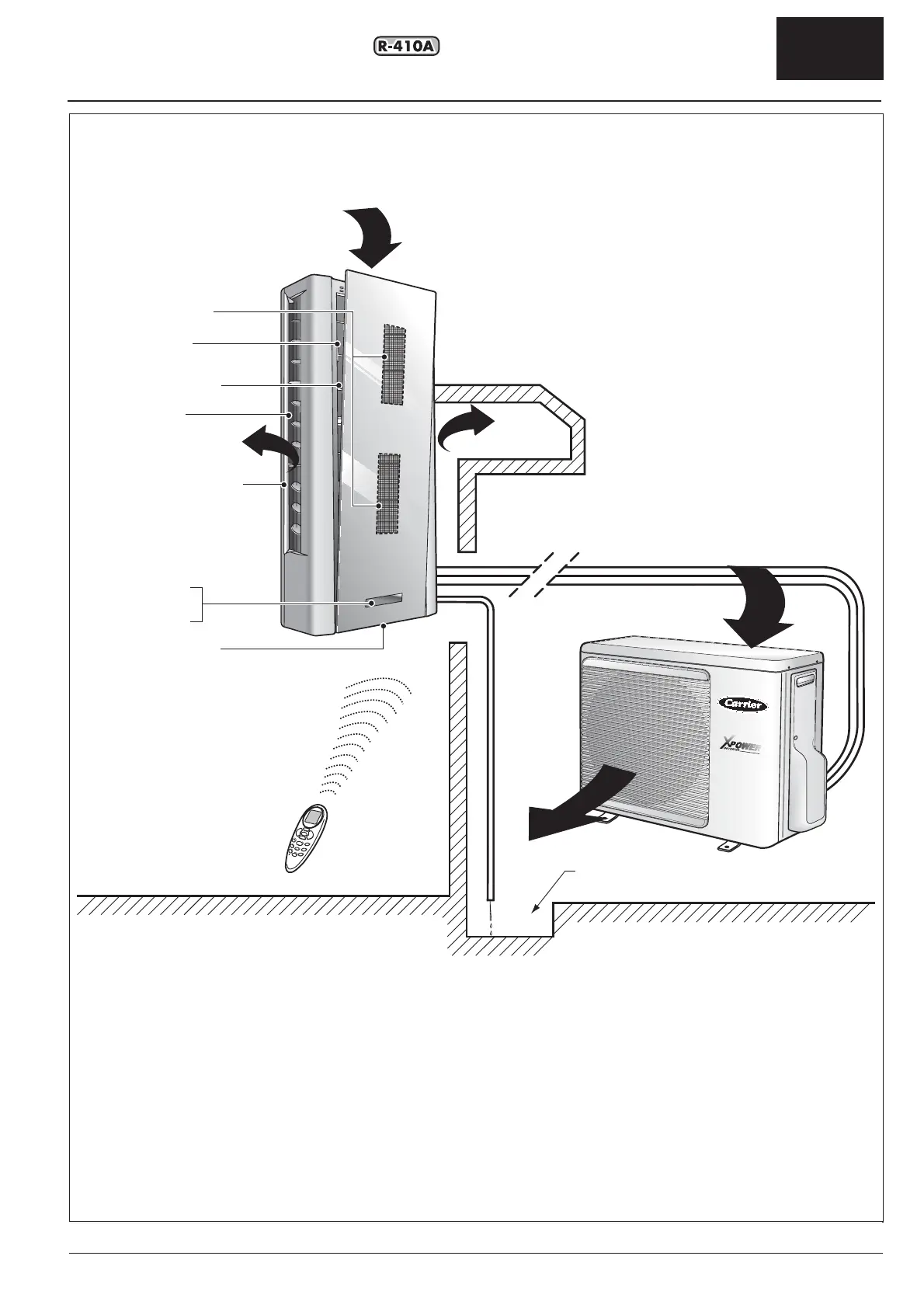

System Description
GB
ENGLISH
3
Electrostatic filter
Active carbon filter
Indoor-Air inlet
Bio-anti fungus filter
Cool air outlet
Automatic swing louver
Remote control
signal receiver
Unit operating
status indicator
Indoor unit operate
(Emergency & test operation button)
Remote control
Condensate draın
Indoor Unit
Outdoor Unit
