1. PREPARING FOR INSTALLATION

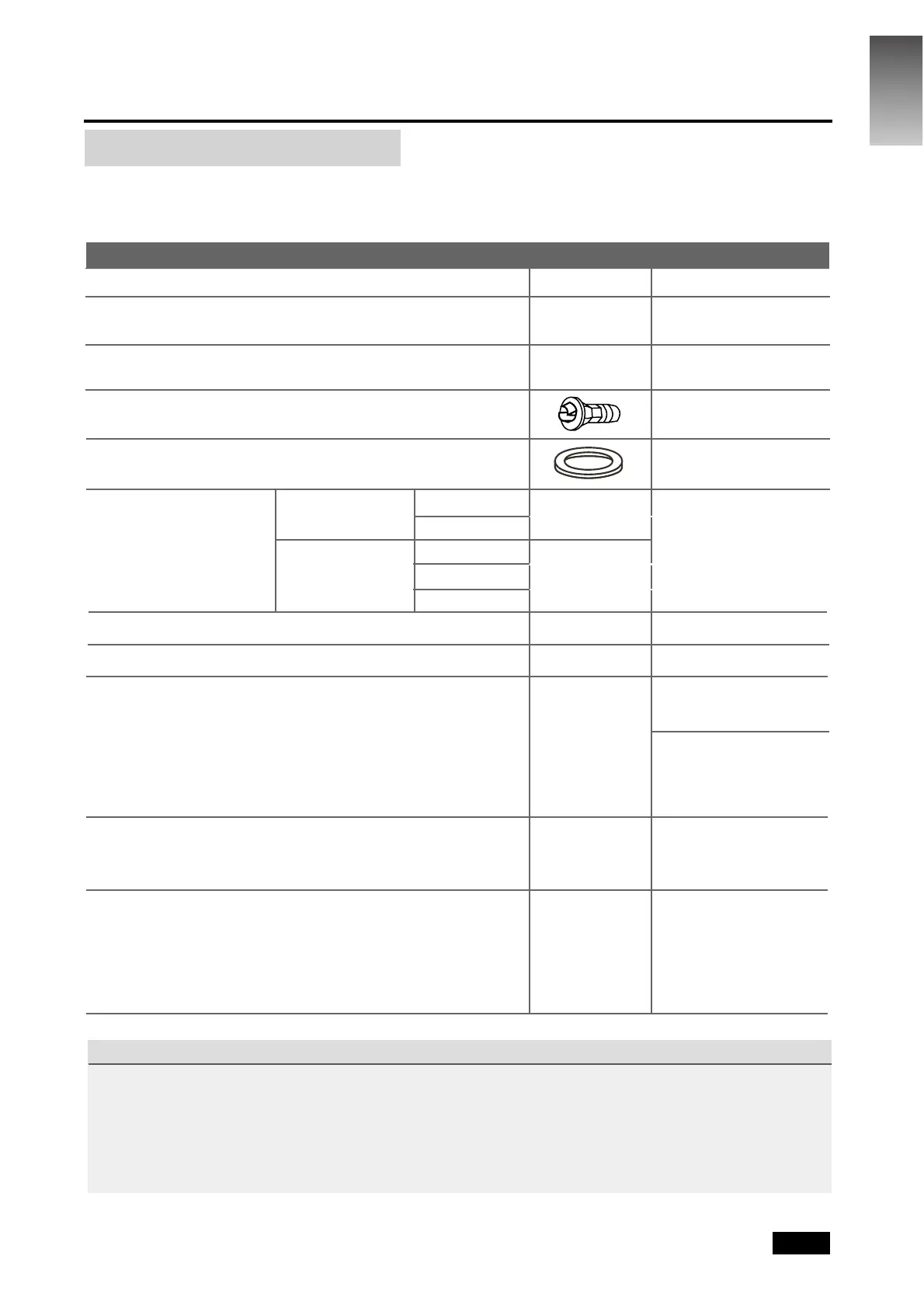

The air conditioning system comes with the following accessories. Use all of the installation
parts and accessories to install the air conditioner. Improper installation may result in water
leakage, electriclshock and fire, or equipment failure.
Name Shape Quantity
Installation plate
1
Plastic expansion sheath
5-8
Self-Tapping Screw A ST3.9X25
5-8
Connecting
pipe
assembly
Liquid side
Gas side
1
Drain joint (some models)
1
Seal ring (some models)
Ø9.52
Ø6.35
Parts you must purchase.
Consult a technician for
the proper size.
Ø12.7
Ø9.52
Ø15.9
1
1
Owner’s manual
Installation manual
Optional part
(one piece/one indoor unit)
Optional part
(1-5 pieces for outdoor
unit, depending on
models)
Transfer connector (packed with the indoor or
outdoor unit, depending on models)
NOTE: Pipe size may differ from appliance to
appliance. To meet different pipe size requirements,
sometimes the pipe connections need a transfer
connector installed on the outdoor unit .
Optional part
(one piece/one cable)
Magnetic ring
(Hitch on the connective cable between the indoor
unit and outdoor unit after installation.)
1
Cord protection rubber ring
(If the cord clamp cannot fasten on a small cord, use
the cord protection rubber ring [supplied with
accessories] to wrap around the cord. Then fix it in
place with the cord clamp.)
(depending on models)
(depending on models)
(on some models)
Optional Accessories
There are two types of remote controls: wired and wireless.
Select a remote controller based on customer preferences and requirements and install
in an appropriate place.
Refer to catalogues and technical literature for guidance on selecting a suitable remote
controller.
