CL-3
NOTE: Data in brackets [ ] is default value.

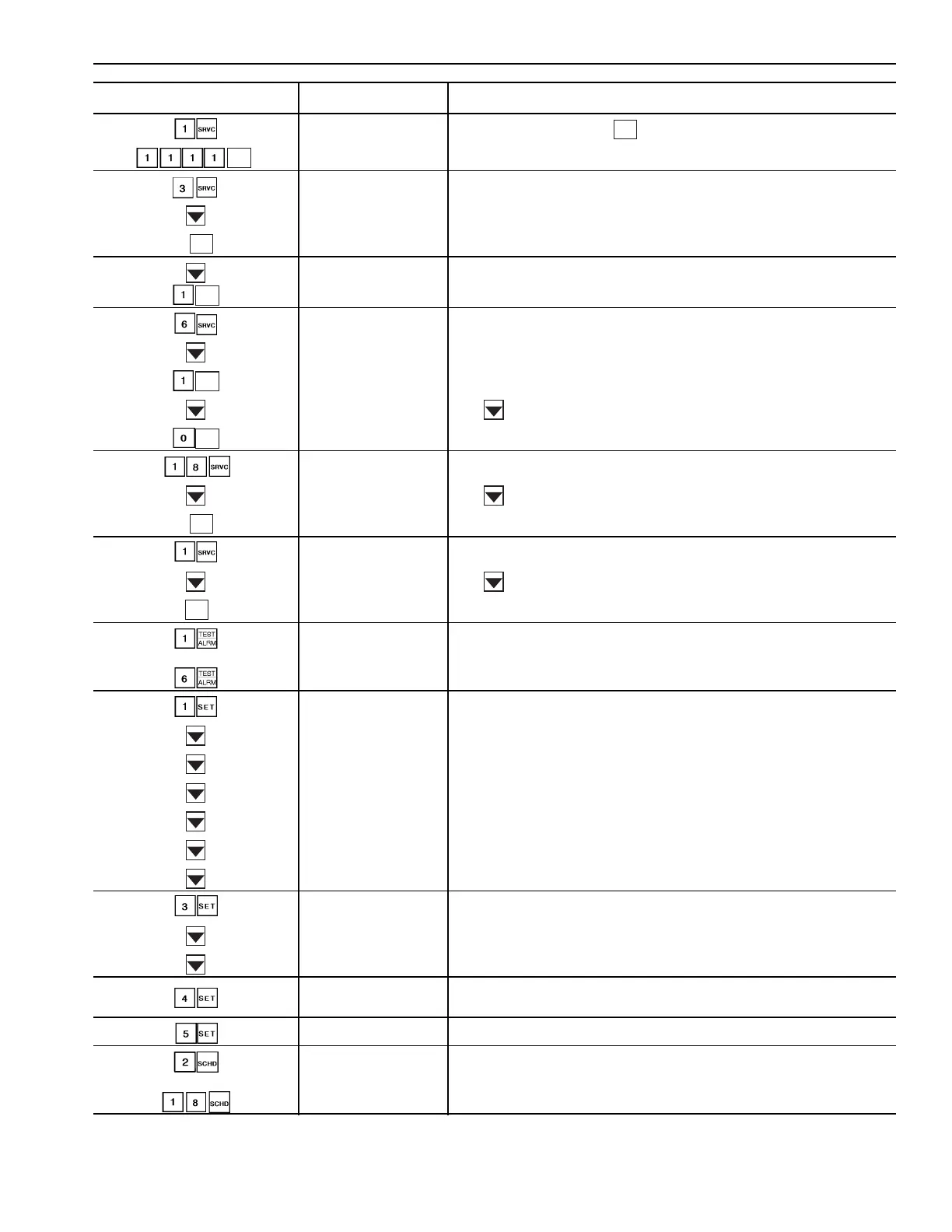

CONTROL CONFIGURATION
KEYBOARD
ENTRY
DISPLAY
DESCRIPTION
VALUES IN [ ] INDICATE FACTORY DEFAULTS
LOG ON
Enter password followed by
LOGGEDON Logged on okay
FACT CFG Factory configuration
TYPE X Unit type (0 = CV, 1 = VAV) [Default is 1]
x
TYPE X
Verify unit type and change if necessary. If CV unit, see CV control
configuration.
DTRS
Data Reset
Enable Data Reset
FACT CFG User Configuration
OHEN X Occupied Heating
Enable Occupied Heating (or Disable, 1 = Enable)
LLAG X
Use to access lead/lag option — disable with HGBP
DISABLE Disable lead/lag (0 = DIS, 1 = ENB) [1]
BLD PRES Configure building pressure control (modulating power exhaust)
BPS .05
Use for building pressure set point (range 0 to .5) [.05]
x
BPS X Set building pressure set point per job requirements
LOGGEDON Access log on/off function
LOG OFF
Use to access log off
LOGD OFF Logged off okay
through
INPUTS
Run quick test to verify operation of unit functions (see Quick Test section on
page 86.)
SETPOINT Set system set points per job requirements
OHSP X Set occupied heat set point (Range 55-80 F) [68] CV only
OCSP X Set occupied cool set point (Range 55-80 F) [78] CV only
UHSP X Set unoccupied heat set point (Range 40-80 F) [55]
UCSP X Set unoccupied cool set point (Range 75-95 F) [90]
SPSP X Set supply duct pressure set point (Range 0-5.0 in. wg) [1.5]
SASP X Set supply air set point temperature (Range 45-70 F) [55]
TIME Current time/date
dow.hh.mm Set day of week and time
mm.dd.yy Set month, day, and year
DAYLIGHT
Set daylight savings time begin/end dates. Required if job conditions require
adjustment of clock for daylight savings time (see Adjusting Set Points section
on page 47.)
HOLIDAY
Set holiday dates. Required if job conditions require a different schedule on
holidays than other days (see Adjusting Set Points section on page 47.)
through
PERIOD X
Set occupied/unoccupied schedules. Required if job conditions require unit to
enter unoccupied cycle at programmed times of day or days of week (see
Adjusting Set Points section on page 47.)
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
To Next Page
