Carrier 48FP - Page 93

93

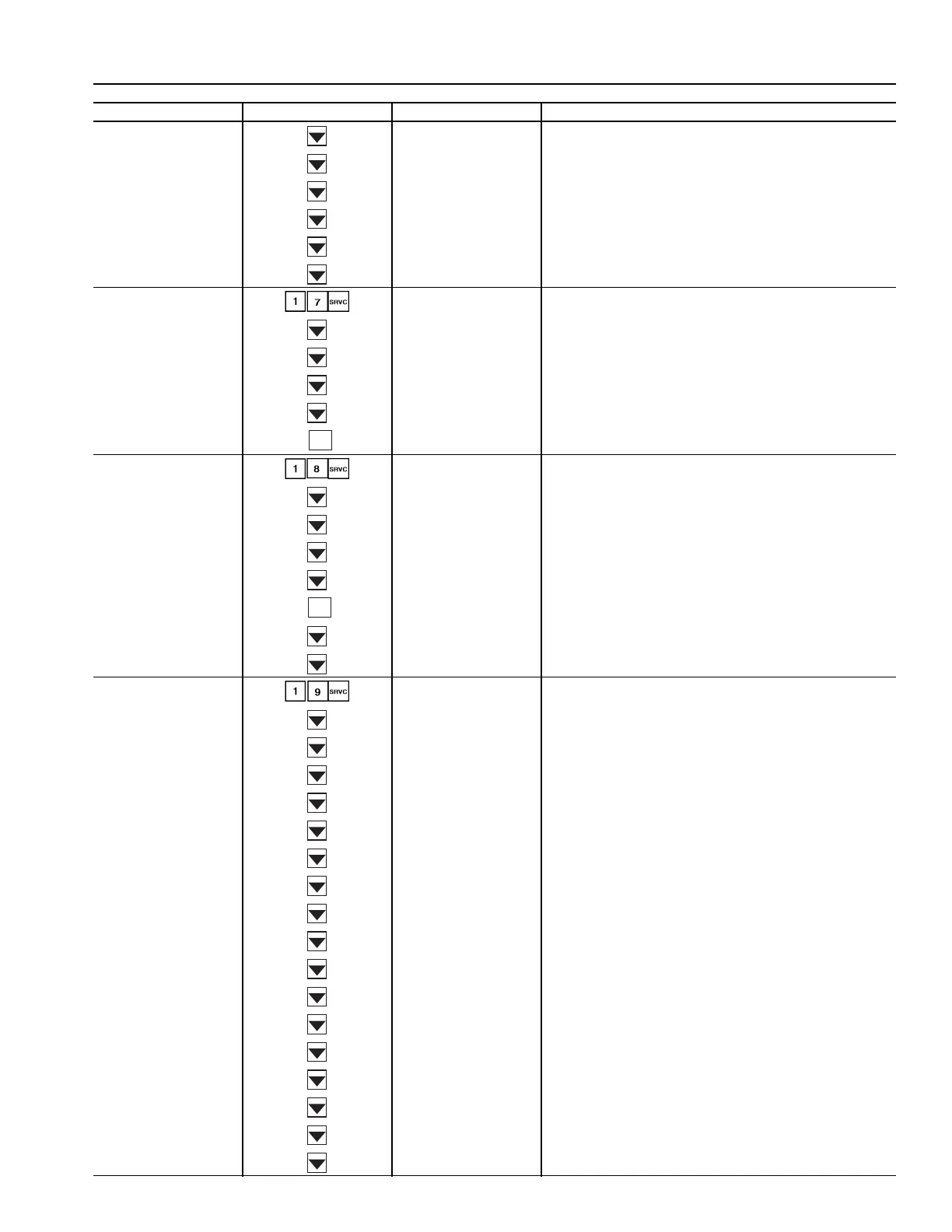

Table 68 — Service Directory (cont)
SERVICE (cont)
Subfunction Keypad Entry Display Description
16
IAQ/CFM
(cont)
IVL X IAQ voltage low point
IRL X IAQ reference low point
IVH X IAQ voltage high point
IRH X IAQ reference high point
IQMX X IAQ maximum damper position (0 to 100%; default = 50%)
OCMX X OAC maximum damper position (0 to 100%; default = 50%)
17
HUMIDITY
HUMIDITY Configure humidity
MLG X Master loop gain value
SMG X Submaster gain value
SCV X Submaster center value
SMR X Submaster reference value
X*
SMR X Submaster reference value forced (0 to 90)
18
BUILDING
PRESSURE
BLD PRES Configure building pressure
MLG X Master loop gain value
SMG X Submaster gain value
SCV X Submaster center value
SMR X Submaster reference value
X*
SMR X Submaster reference value forced (0.0 to 0.5)
BPS X Building pressure set point (0 to 0.50; default = 0.05)
BPSO X
Building pressure set point offset (0.05 to 0.50;
default = 0.05)
19
ALERT
LIMITS
ALRTLIMT Configure alert limits
SPLO X Space temp low alert limit/occupied X
SPHO X Space temp high alert limit/occupied X
SPLU X Space temp low alert limit/unoccupied X
SPHU X Space temp high alert limit/unoccupied X
SALO X Supply air temp low alert limit/occupied X
SAHO X Supply air temp high alert limit/occupied X
SALU X Supply air temp low alert limit/unoccupied X
SAHU X Supply air temp high alert limit/unoccupied X
RALO X Return air temp low alert limit/occupied X
RAHO X Return air temp high alert limit/occupied X
RALU X Return air temp low alert limit/unoccupied X
RAHU X Return air temp high alert limit/unoccupied X
OATL X Outdoor air temp low alert limit X
OATH X Outdoor air temp high alert limit X
RHL X Relative humidity low alert limit X
RHH X Relative humidity high alert limit X
ORHL X Outdoor air relative humidity low alert limit X
ENTER
ENTER
