4

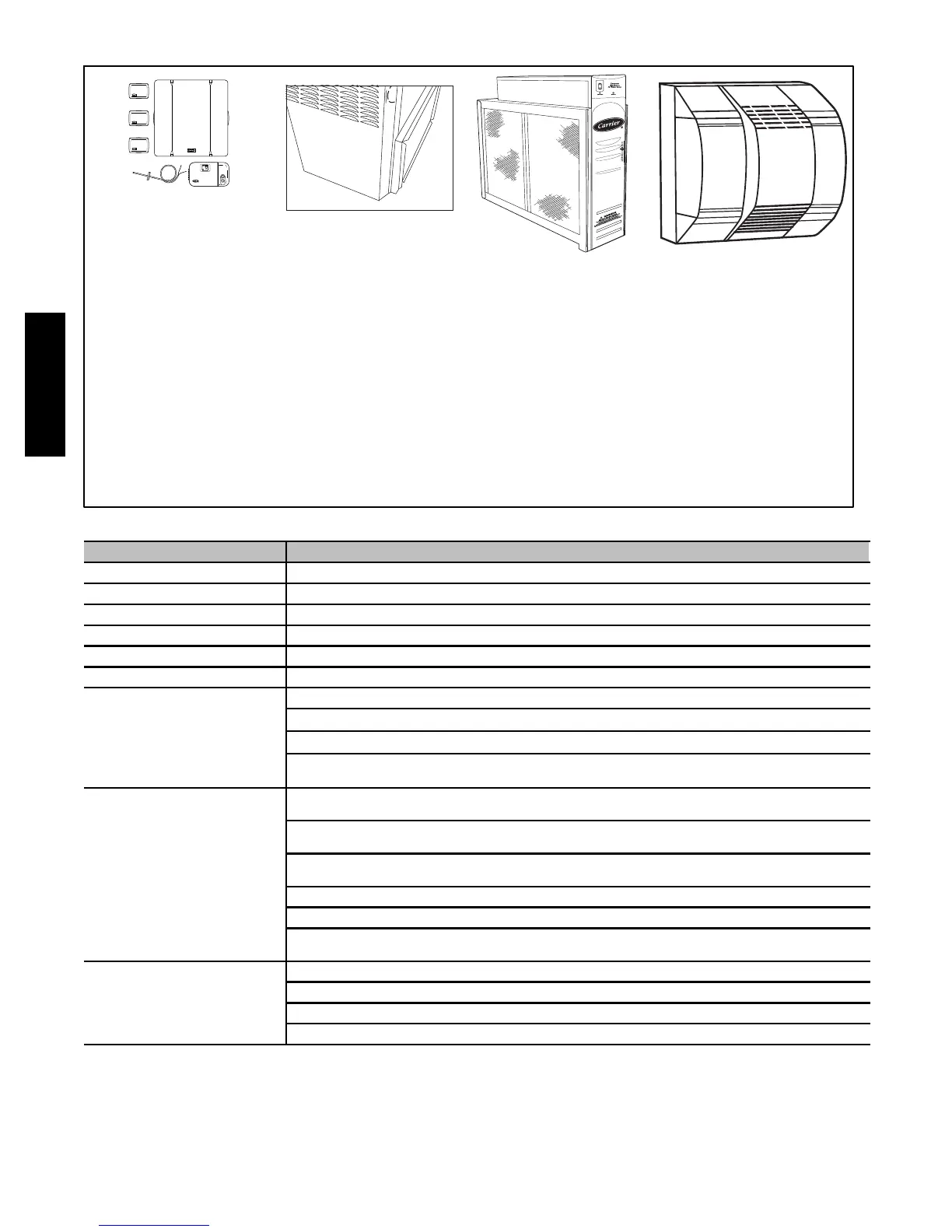

CARRIER ACCESSORIES
CONTROLS:
THERMOSTATS
AND ZONING
Available in programmable and
non-programmable models,
Carrier thermostats maintain a
constant temperature level in the
home.
For the ultimate in home
comfort, Carrier’s 2, 4, and
8-zone systems allow
temperature control of
individual “zones” of the home.
This is accomplished through a
series of electronic dampers and
remote room sensors. The
4-zone system is shown.
A97432
MECHANICAL
OR ELECTRONIC
AIR CLEANER
Cleans the air of smoke, dirt,
and many pollens commonly
found. Saves decorating and
cleaning expenses by keeping
carpets, furniture, and drapes
cleaner.
Electronic air cleaner is
shown.
A04008
A01484
MODEL HUMCCLFP
HUMIDIFIER
By adding moisture to winter-dry
air, a Carrier humidifier can often
improve comfort and keep
furniture, rugs, and draperies in
better condition. Moisturizing
household air also helps to retain
normal body heat and provides
comfort at lower temperatures.
A02121
EXTERNAL FILTER
RACK
(SIDE OR BOTTOM)
Custom--made filter rack for
easy connection when a
return plenum already exists.
Provides easy access for
cleaning filter.
Accessories
ELECTRONIC AIR CLEANER (EAC) Model EACB
MECHANICAL AIR CLEANER Models EZXCAB, FILCAB
HUMIDIFIER Model HUM
HEAT RECOVERY VENTILATOR Model HRV
ENERGY RECOVERY VENTILATOR Model ERV
UV LI GHTS Model UVL
T H E R M O ST AT ---
NON-PROGRAMMABLE
Fo r u s e w i t h 1 - s p e e d A i r C o n d i t i on e r --- d e g. F / C , A u t o C h a n ge o v e r --- T P --- N A C , T C --- N A C
Fo r u s e w i t h 1 - s p e e d H e a t P u m p --- d e g. F / C, A u t o C h a n g e o v e r --- T P --- N H P, T C --- N H P *
Fo r u s e w i t h 2 - s p e e d A i r C o n d i t i on e r --- d e g. F / C , A u t o C h a n ge o v e r --- T P --- N R H *
For use with multi-use / stage configurations --- deg. F/C, Auto Changeover/Temperature and Humidity
C o n t r o l --- T P --- P R H {
T H E R M O ST AT ---
PROGRAMMABLE
For use with 1-speed Air Conditioner --- deg. F/C, Aut o Changeover, 7-Day Programmable ---
T P --- PA C
For use with 1-speed Heat Pump --- deg. F/C, Auto Changeover, 7-Day Programmable ---
TP---PHP*
For use with 2-speed Air Conditioner --- deg. F/C, Aut o Changeover, 7-Day Programmable ---
T P --- P R H *
Fo r u s e w i t h 1 - s p e e d A i r C o n d i t i on e r --- d e g. F / C , 5 --- 2 D a y P r o g ra m m a b l e --- T P --- P A C
Fo r u s e w i t h m u l t i - s t a g e a p p l i c a t i o n s --- d e g. F / C, A u t o C h a n g eo v e r, 7 - D a y P r o g ra m m a b l e --- T C --- P H P }
For multi-use / stage configurations --- deg. F/C, Auto Changeover, 7-Day Programmable/Temperature and
H u m i di t y C o n t r o l --- T P --- P R H {
ZONING CONTROL
Comfort™ Series 3-Zone Kit --- ZONECC3ZAC01, ZONECC3ZHP01
2 Performance™ Series ComfortZone™ II Zoning/Temperature and Humidity Control --- ZONECC2KIT01---B
4 Performance™ Series ComfortZone™ II Zoning/Temperature and Humidity Control --- ZONECC4KIT01---B
8 Performance™ Series ComfortZone™ II Zoning/Temperature and Humidity Control --- ZONECC8KIT01---B
* Model HP and 2S thermostat must be field converted to air conditioner operation.
† Thermidistat Control can be configured for multiple u se and staging, it must be configured for each specific application.
} Dual Fuel thermostat is used with furnace and heat pump application.
58STA/STX
