Carrier 59SP6A - Page 73

59SP6A: Installation, Start-up, Operating, Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
73
346265-2 REV A
A200284

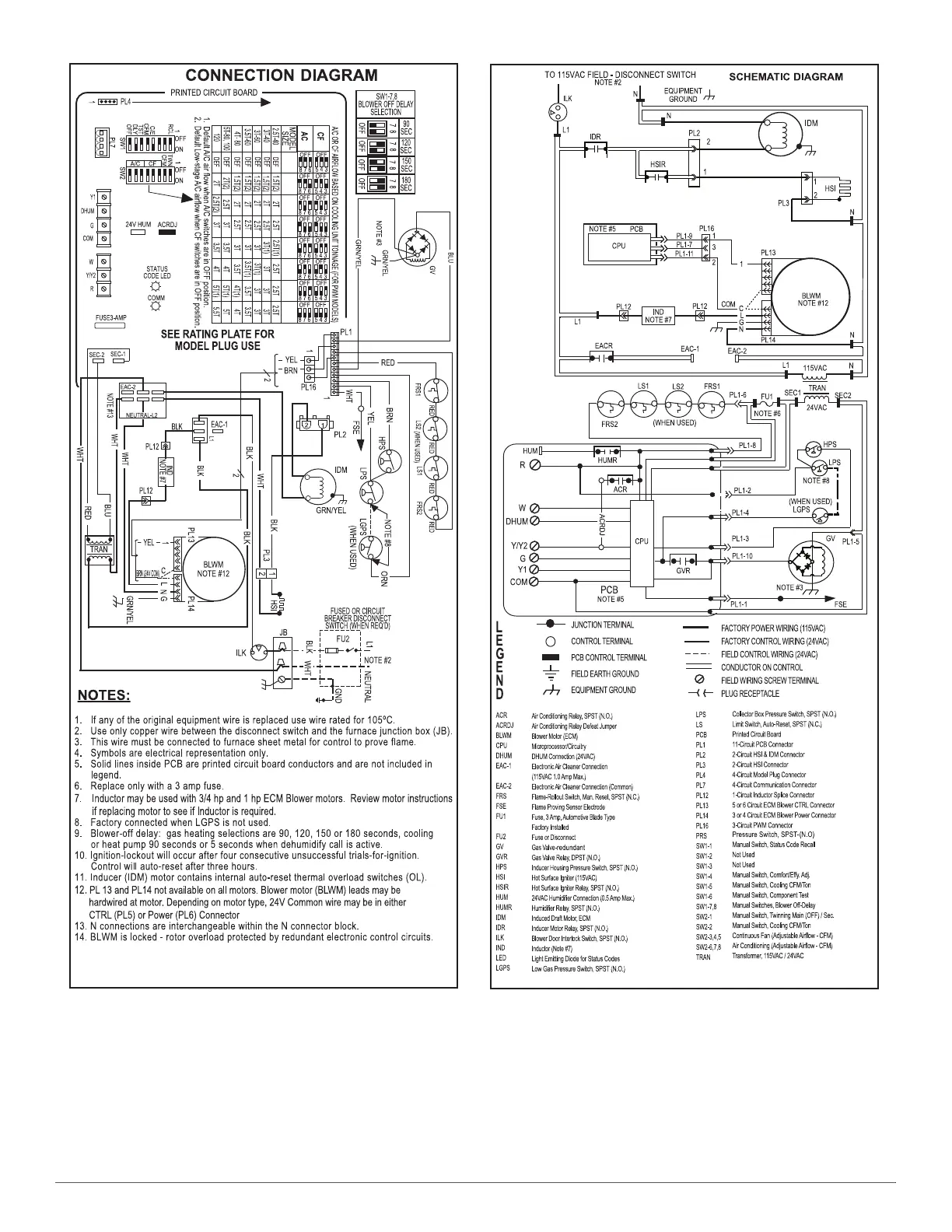

Fig. 75 – Wiring Diagram
