Carrier 69UG15 - Figure 6.15 Schematic Diagram 460 Volt Alternating Current Generator

6–15 T-343

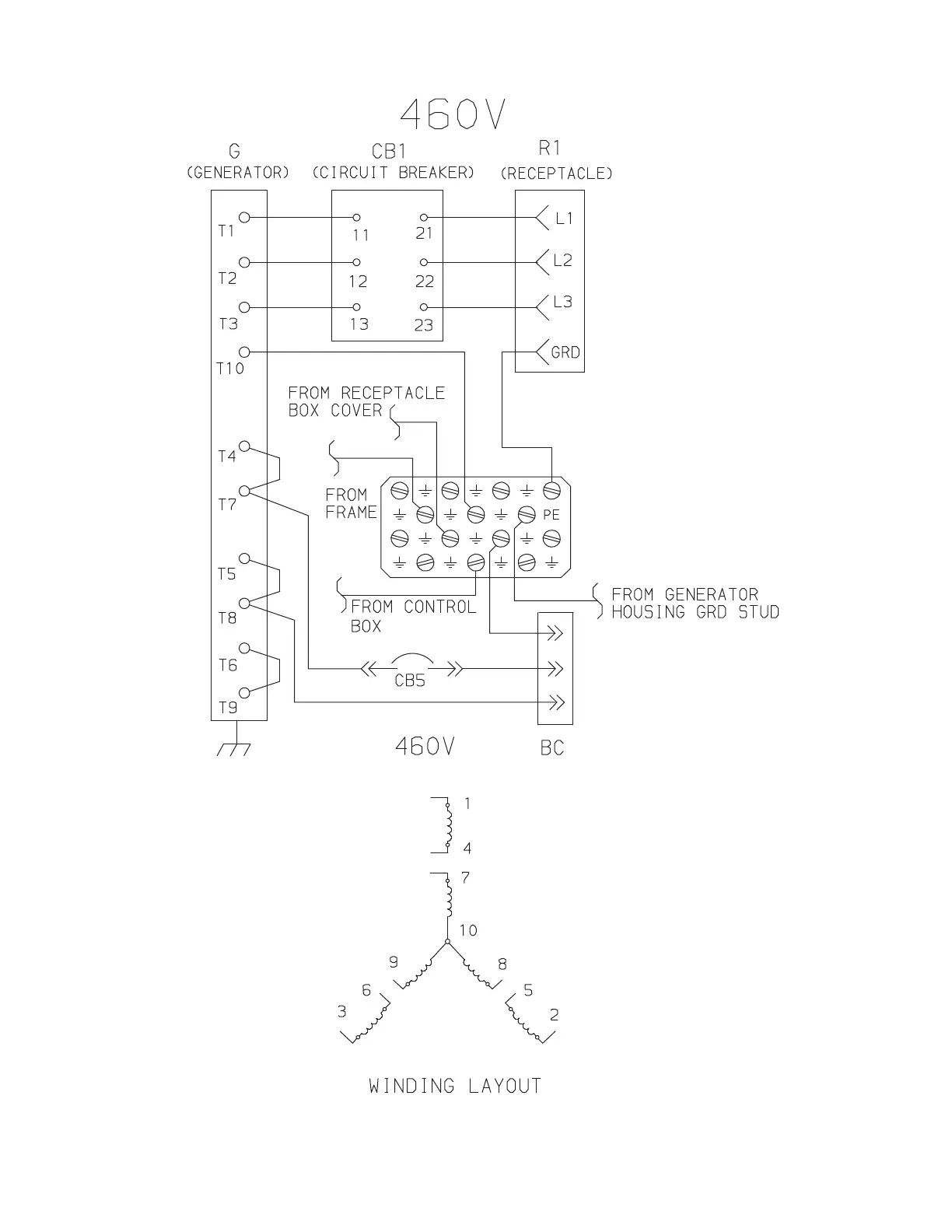

Figure 6.15 Schematic Diagram 460 Volt Alternating Current Generator
(For Applicability, Refer to Table 2–1)
NOTE:
WHEN PE IS NOT FITTED, OUTPUT
GROUND WIRES ARE CONNECTED
DIRECTLY AT GENERATOR
TERMINAL STRIP TERMINAL T10.
