Carrier 90MA - Wiring Schematic - *08;*12

FOR NOTES AND LEGEND, SEE FIGURE 15

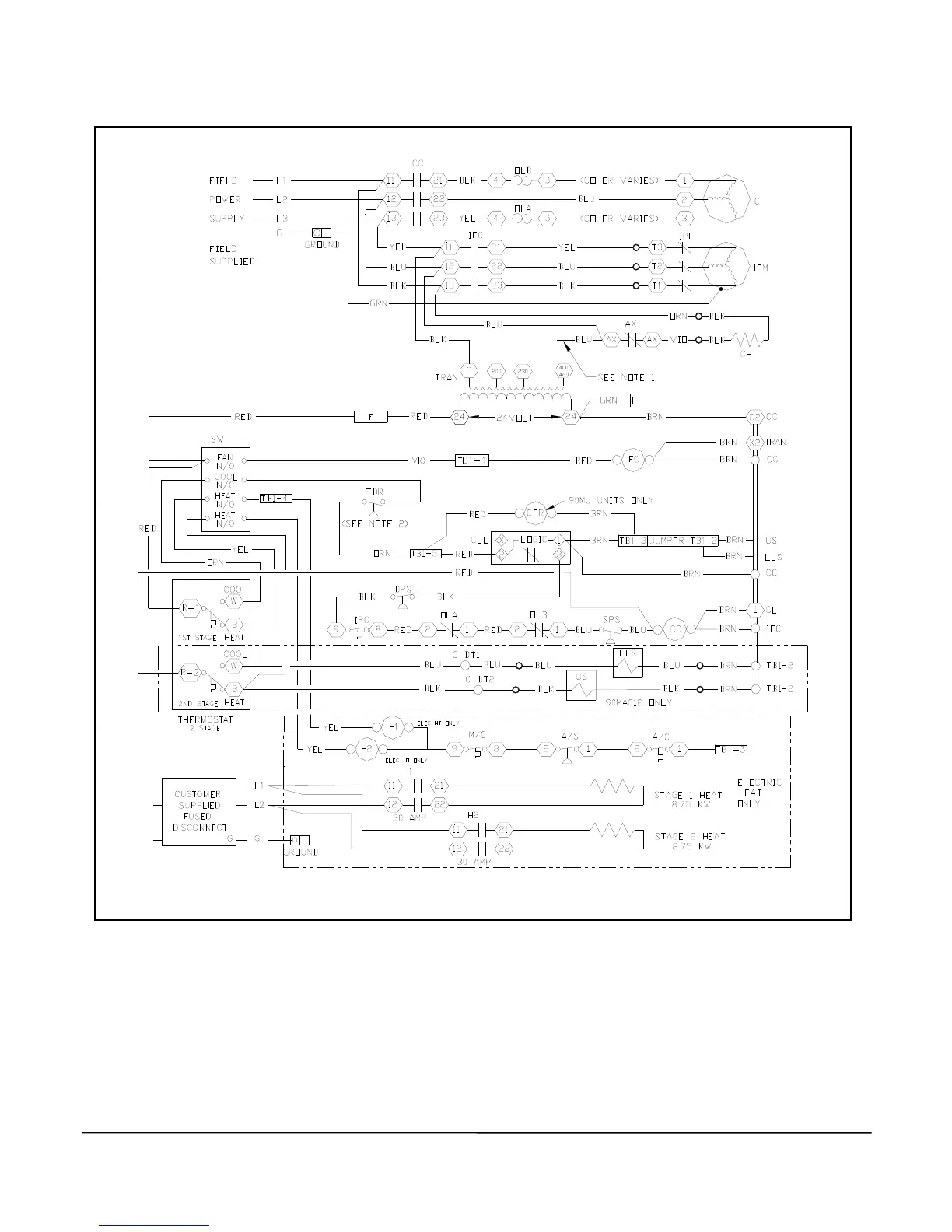

FIGURE 14 - ELECTRICAL SCHEMATIC - 90MA/MU*08/*12
