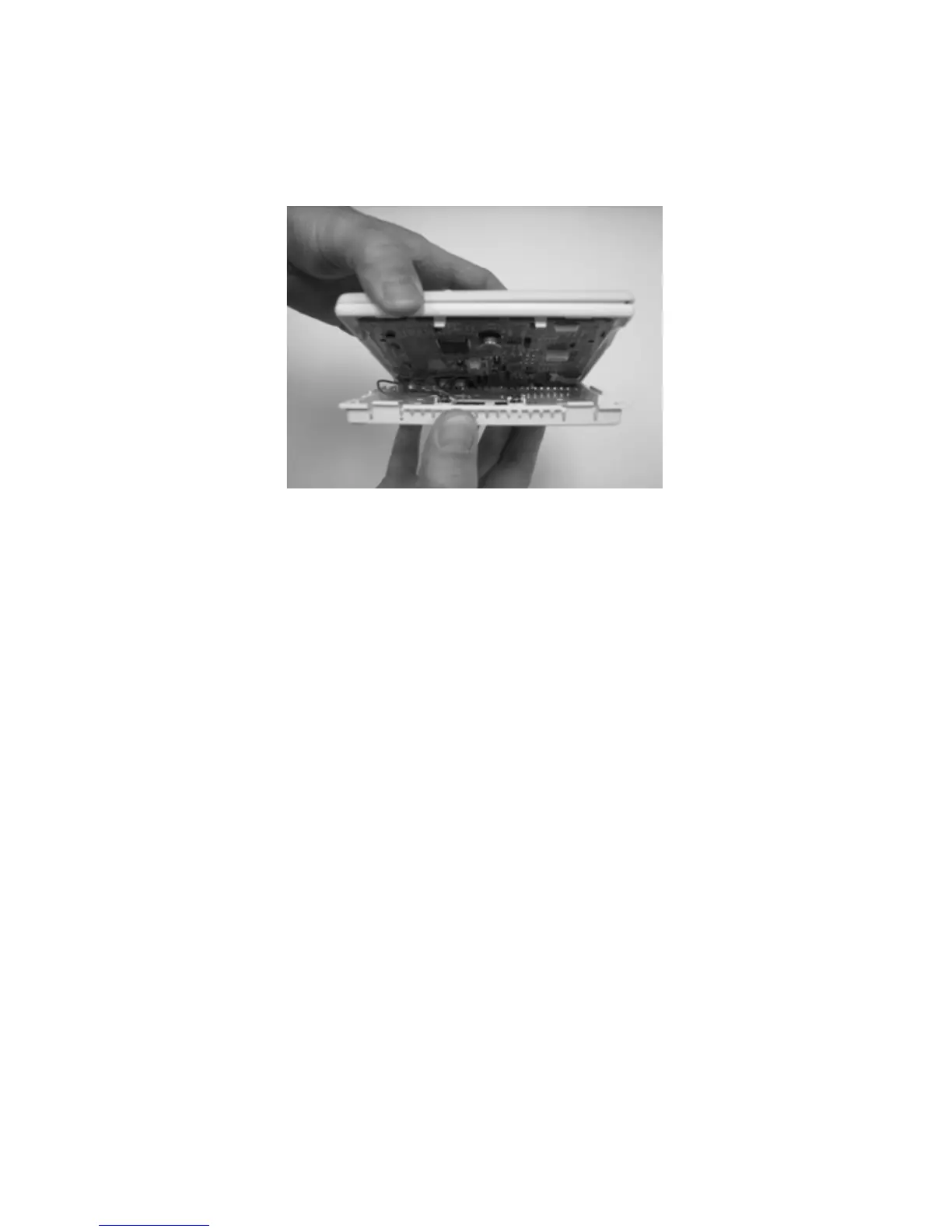

Fig. 5 − Take Apart
2. Route wires through large hole in mounting base. Level mounting base
against wall (for aesthetic value only—Display Module need not be lev-
eled for proper operation) and mark wall through 4 mounting holes. To
avoid unintended bending of wall plate plastic, use all 4 screws and an-
chors. See Fig. 6.
