WIRING DIAGRAMS(cont.)
Single-Stage Single-Stage
Thermostat Furnace Air Conditioner
RVS/Heat Stage 2 O/B W2
Heat Stage 1 W/W1
W/W1
Compressor Low Y1
Compressor High Y/Y2
Y/Y2
Y
Fan G G
24VAC Hot Heating Rh R
24VAC Hot Cooling Rc
R*
Dry Contact 1 D1
Dry Contact 2 D2
24VAC Common C COM COM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Outdoor Sensor *
Remote Room
Sensor *
* Indicates connection may not be required/available.
NOTE: Rc/Rh jumper is cut on the Equipment Control Module.
A09160

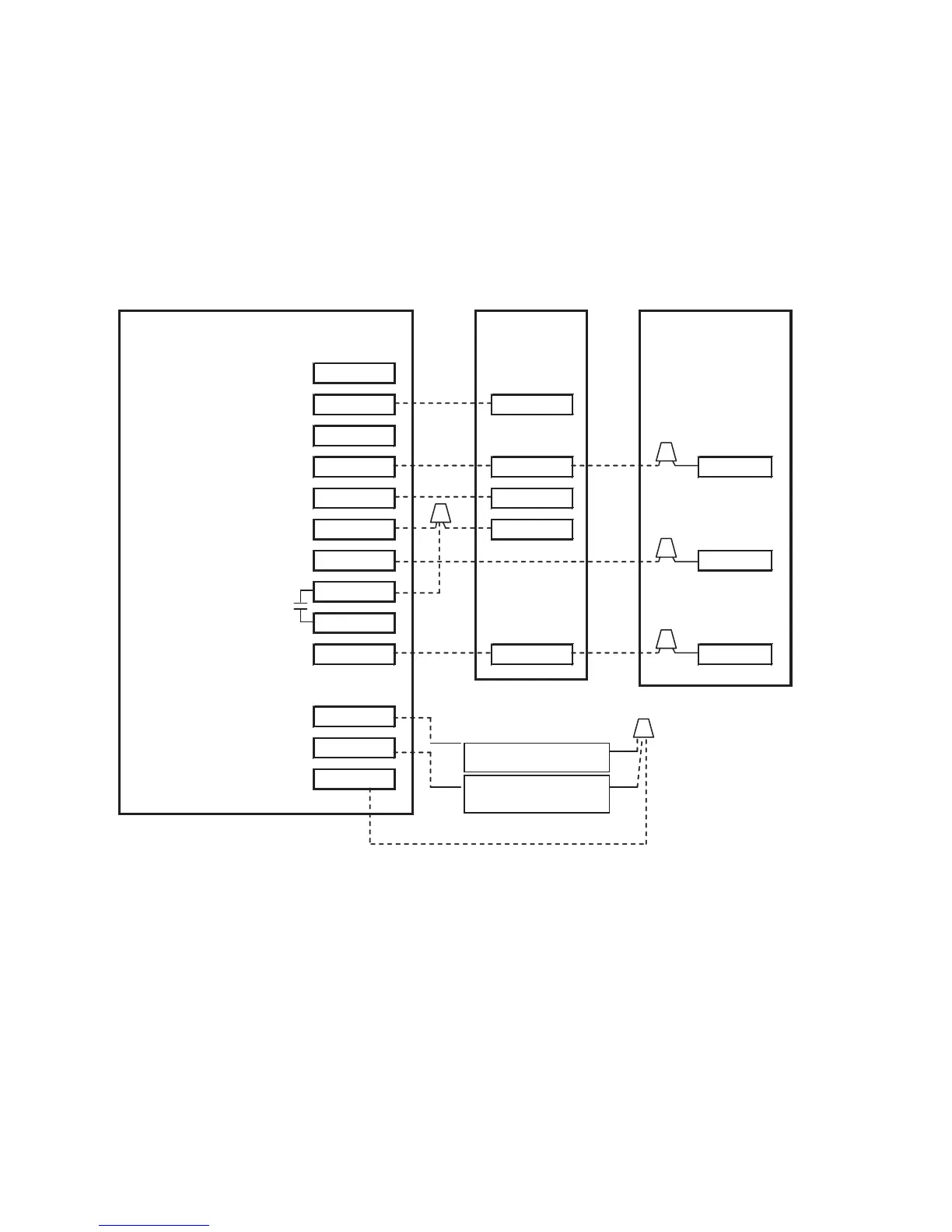

Fig. 25 − Single−stage Furnace with Air Conditioner and Split Power
