Carrier PG95SAS User Manual

30
HORIZONTAL LEFT TOP
RETURN NOT PERMITTED
FOR ANY MODEL.
SEE TABLE BELOW.
RETURN
AIR
*RETURN
AIR
*HORIZONTAL LEFT BOTTOM RETURN
NOT PERMITTED FOR ALL MODELS.
SEE TABLE BELOW.
SUPPLY
AIR
1
2
3
*
A14006

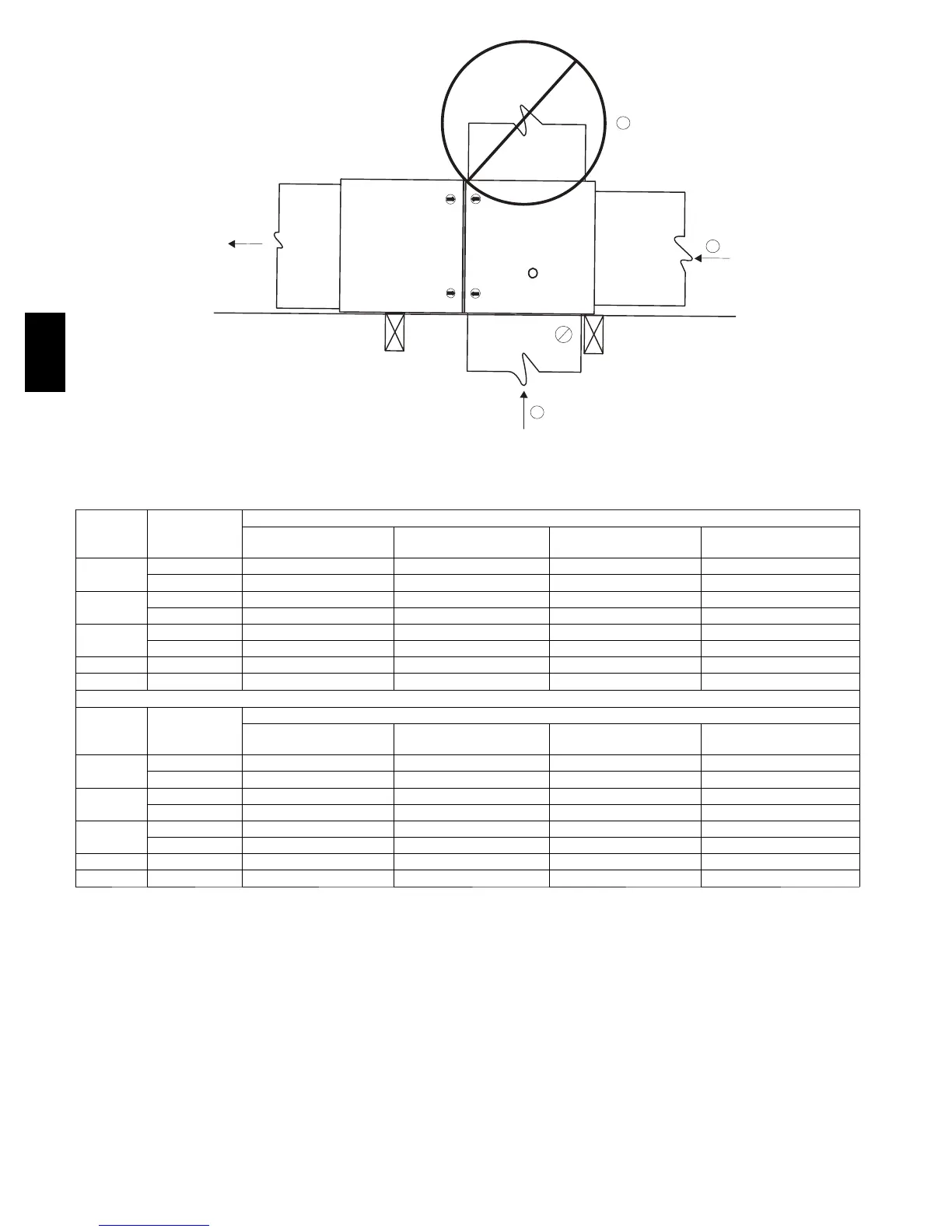

Fig. 29 -- Horizontal Left Return Air Configurations and Restrictions
Table 9 – Horizontal Left and Right Return Air Connections
INPUT*
CASING
WIDTH
INCHES
HORIZONTAL LEF T RETURN AIR CONNECTIONS
CONNECTION AT
1ONLY
CONNECTION AT
2ONLY
CONNECTION AT
3ONLY
COMBINATION OF 1 & 2
40,000
14 3/16 YES YES NO YES
17 1/2 YES YES NO YES
60,000
14 3/16 YES YES NO YES
17 1/2 YES NO NO YES
80,000
17 1/2 YES YES NO YES
21 YES YES NO YES
100,000 21 YES YES NO YES
120,000 24 1/2 YES YES NO YES
INPUT*
CASING
WIDTH
INCHES
HORIZONTAL RIGHT RETURN AIR CONNTECIONS
CONNECTION AT
1ONLY
CONNECTION AT
2ONLY
CONNECTION AT
3ONLY
COMBINATION OF 1 & 2
40,000
14 3/16 YES YES NO YES
17 1/2 YES YES NO YES
60,000
14 3/16 YES YES NO YES
17 1/2 YES YES NO YES
80,000
17 1/2 YES YES NO YES
21 YES YES NO YES
100,000 21 YES YES NO YES
120,000 24 1/2 YES YES NO YES
NOTE: Not all models may be available in all casing sizes shown in the table above.
