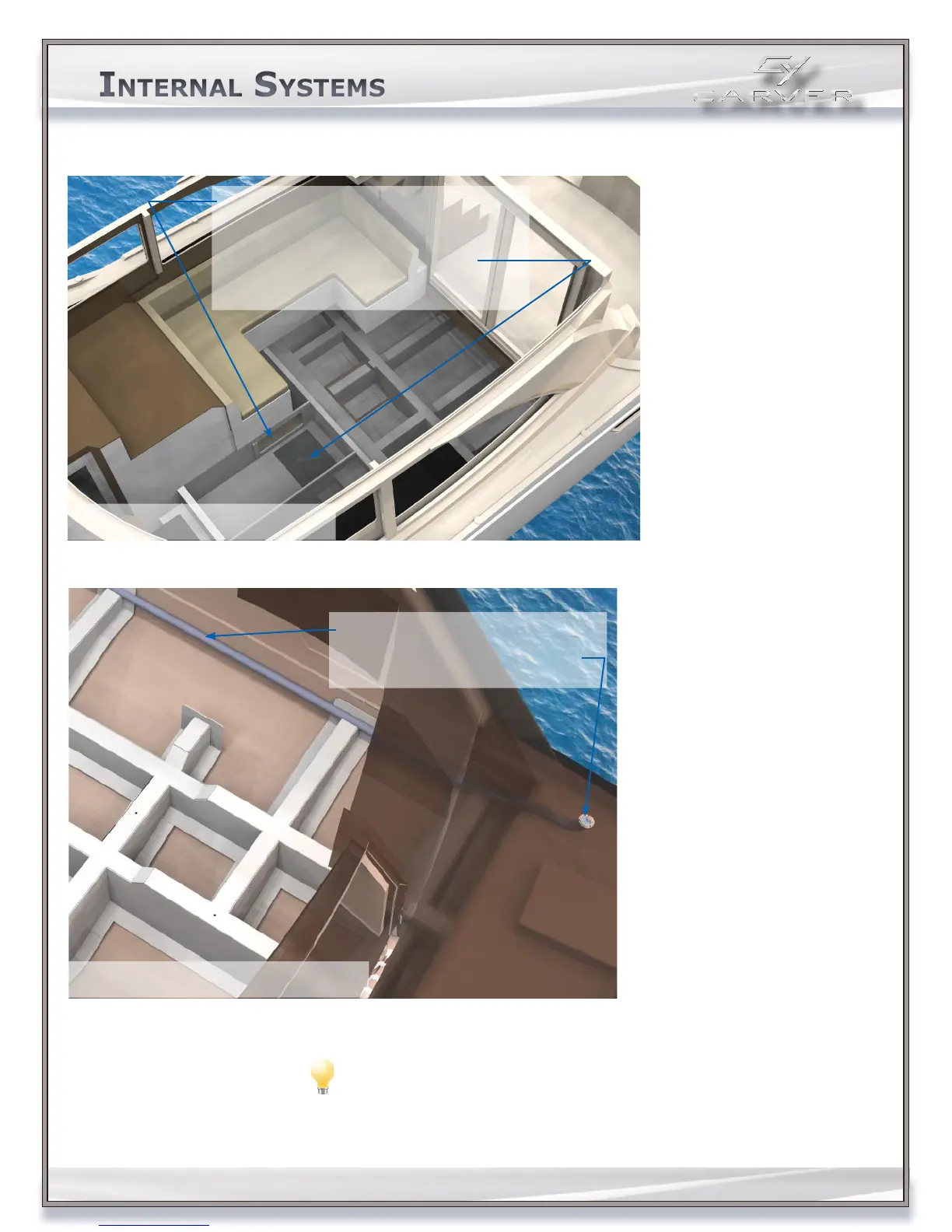

1 1/2” Odor Safe Hose (from Tank)
Waste Discharge Plate (Discharg-
ing Waste at Pump-out Station
waste plate loCation
A T Fr Cvr!
THE WASTE DECK PLATE IS NOT CONNECTED TO THE FITTING AND DOES NOT FLOAT. BE CAREFUL NOT TO DROP THE DECK PLATE
WHEN REMOVING. YOU CAN ORDER A REPLACEMENT FROM YOUR CARVER DEALER IF YOU DO LOSE THE PLATE. WASTE DECK
PLATES ARE DROPPED OVERBOARD FREQUENTLY ENOUGH THAT WE SUGGEST YOU CARRY AN EXTRA PLATE IN YOUR ONBOARD
SPARE PARTS KIT.
VIP Stateroom hatch Access Door:
Access to Waste Tank
70 Gallon, 270L Waste Tank Hatch Access:
Located below main level at companion-
way
waste tank aCCess
sa n i t a t i o n sY s t e m de t a i L s
In t e r n a l Sy S t e m SIn t e r n a l Sy S t e m S
75 3957 • C7 08/2013
