M22904937A
WWW.CARVINPOOL.COM 5

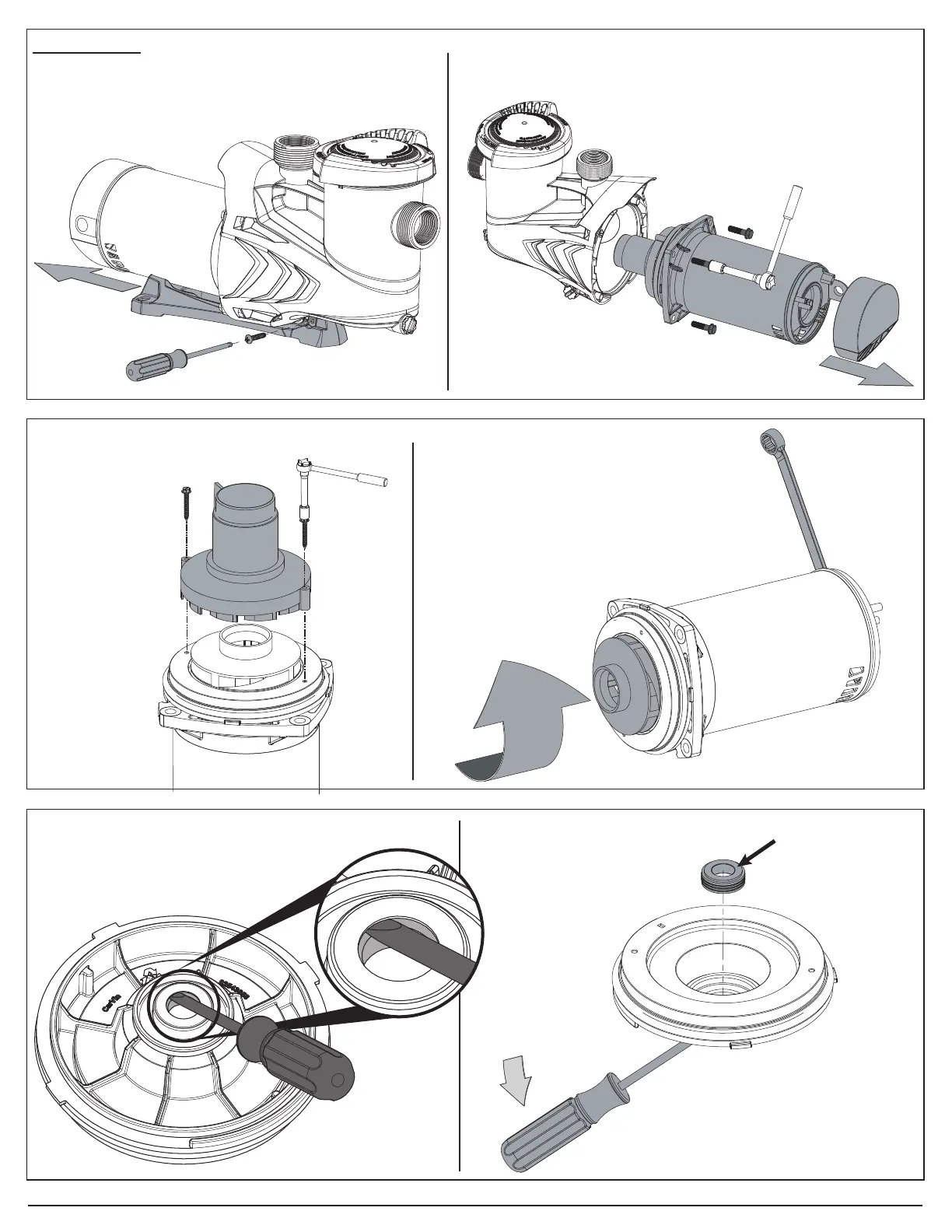

DESMANTLING
1. BASE REMOVAL (Fig. 3)
USING A 9/16’’ SOCKET, REMOVE
THE FOUR BOLTS HOLDING THE
MOTOR TO THE BODY.
ALSO REMOVE THE CAP MOTOR.
2. MOTOR REMOVAL (Fig. 4)
USING A 1/4’’ SOCKET,
REMOVE THE TWO
SCREWS HOLDING
THE DIFUSER TO THE
MOTOR BRACKET.
USING A 3/8’’ WRENCH, HOLD THE
MOTOR SHAFT IN THE BACK OF
THE MOTOR AND UNSCREW THE
IMPELLER BY HAND.
3. DIFUSEUR REMOVAL (Fig. 5)
4. IMPELLER REMOVAL (Fig. 6)
5. CERAMIC SEAL REMOVAL (Fig. 8)
REMOVE SCREW AS ILLUSTRATED.
REMOVE BASE BY SLIDING IT
BACKWARDS TO DISENGAGE THE TABS
HOLDING THE MOTOR BRACKET.
USE A FLAT SCREW-
DRIVER TO REMOVE THE
THE CERAMIC SEAL RING
WITH IT’S RUBBER
HOUSING.
FLAT POLISHED SURFACE
MUST BE FACING THE
FRONT OF PUMP WHEN
REASSEMBLING
