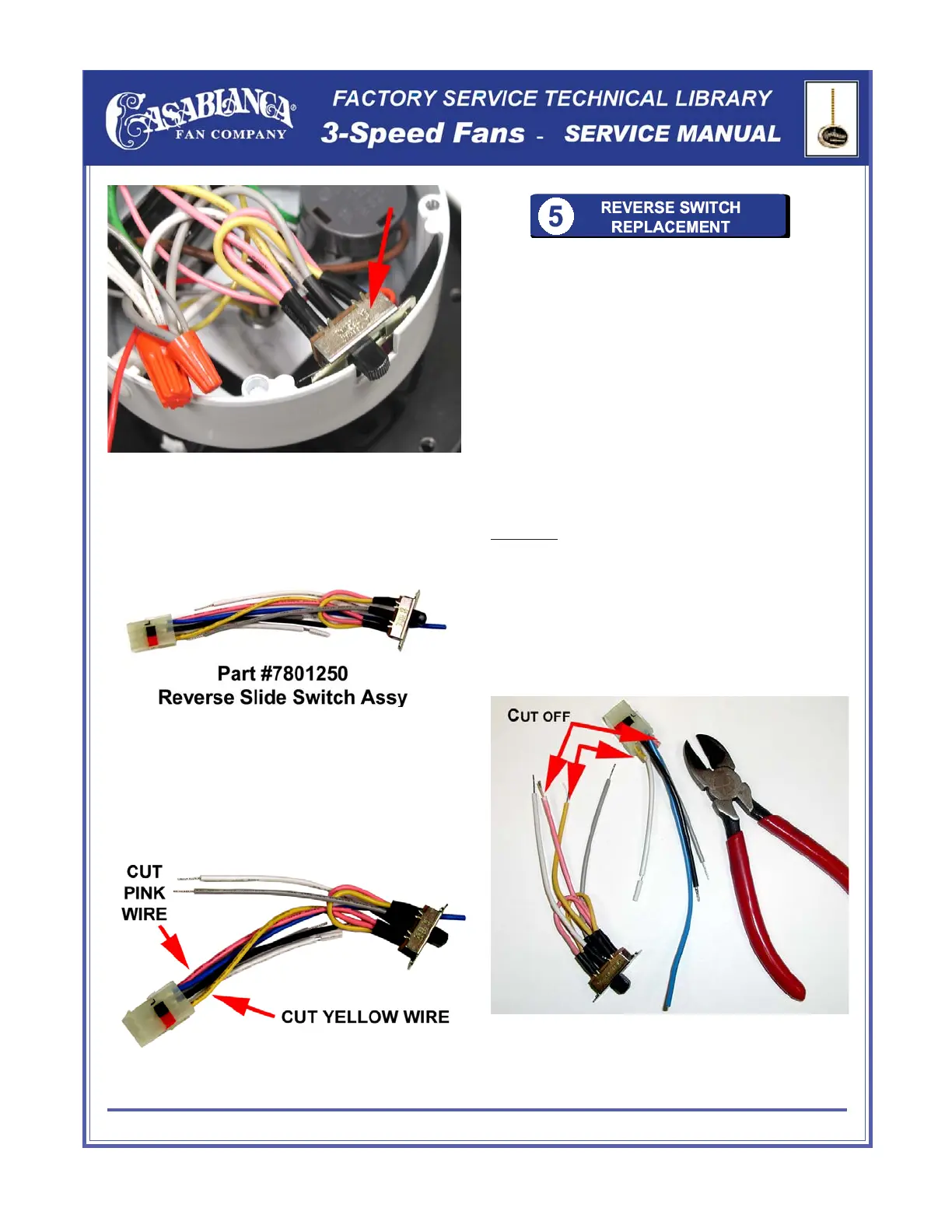

(Figure #1)
Cut the pink and yellow wires as close to plug
as you can as shown in (figure #3A). Strip both
the pink and yellow wires as shown in (figure
#3B) and disregard the plug and other wires,
they will not be needed during this installation.
Step #1
(Figure #2)
(Figure #3A)
(Figure #3B)
Locate the reverse slide switch assembly as
shown in (figure #1). You will see that it is
attached with wire nuts to several wires and
may not have a plug attached as shown in
(figure #2). The reverse slide switch assembly
shown in (figure #2) is the universal part that is
used as the replacement for many different
model fans. In some cases the plug will need to
be removed.
Reverse Switch Replacement - CONTINUED
To Next Page
