Case IH 3230 - Optional Inner Ultrasonic Sensor Installation Kit

CHAPTER 2
12 Case IH 3230/3240/3320/3330/3340 & 4420/4430/4440, Model Year 2010 & Newer ISO AutoBoom® Installation Manual

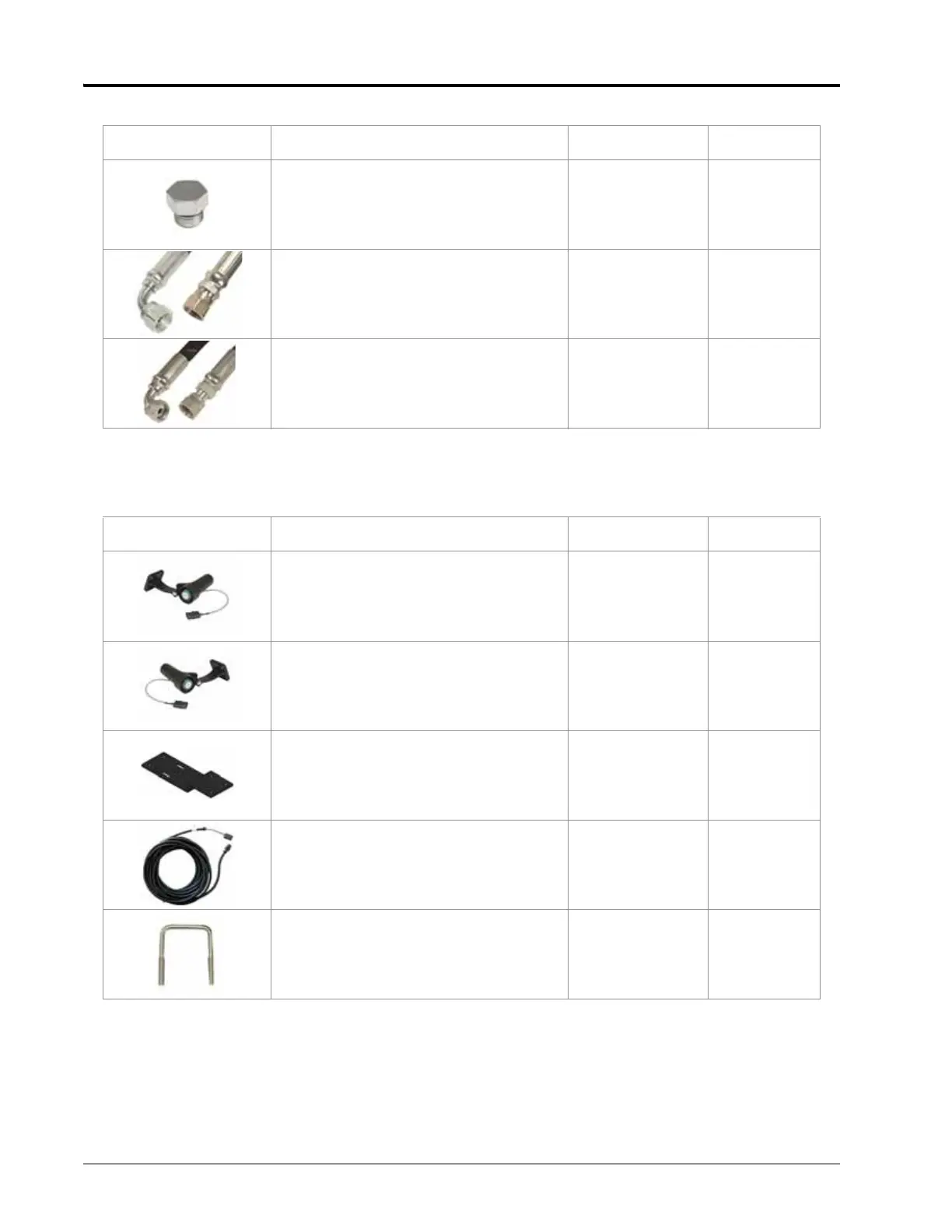

OPTIONAL INNER ULTRASONIC SENSOR INSTALLATION KIT
Fitting - -6 Hex -6 O-Ring Plug 333-0012-194 2
Hydraulic Hose - -8 ORFS (F) to -8 ORFS
(F) 90 ° - 36”
214-1000-311 2
Hydraulic Hose - -6 ORFS (F) 90° to -6
ORFS (F) - 44”
214-1000-494 4
TABLE 4. Inner Ultrasonic Installation Kit (P/N 117-0137-026)
Picture Item Description Part Number Qty.
Sensor - Left Ultrasonic 063-0130-012 1
Sensor - Right Ultrasonic 063-0130-014 1
Bracket - Sensor Mounting 107-0172-501 3
Cable - 40’ Ultrasonic Sensor Extension 115-0171-602 2
U-Bolt - 2-1/16” W x 3” L x 3/8” Thread 107-0171-609 4
TABLE 3. Hydraulic Kit (P/N 117-0134-075)
Picture Item Description Part Number Qty.
