WIRING INSTALLATION

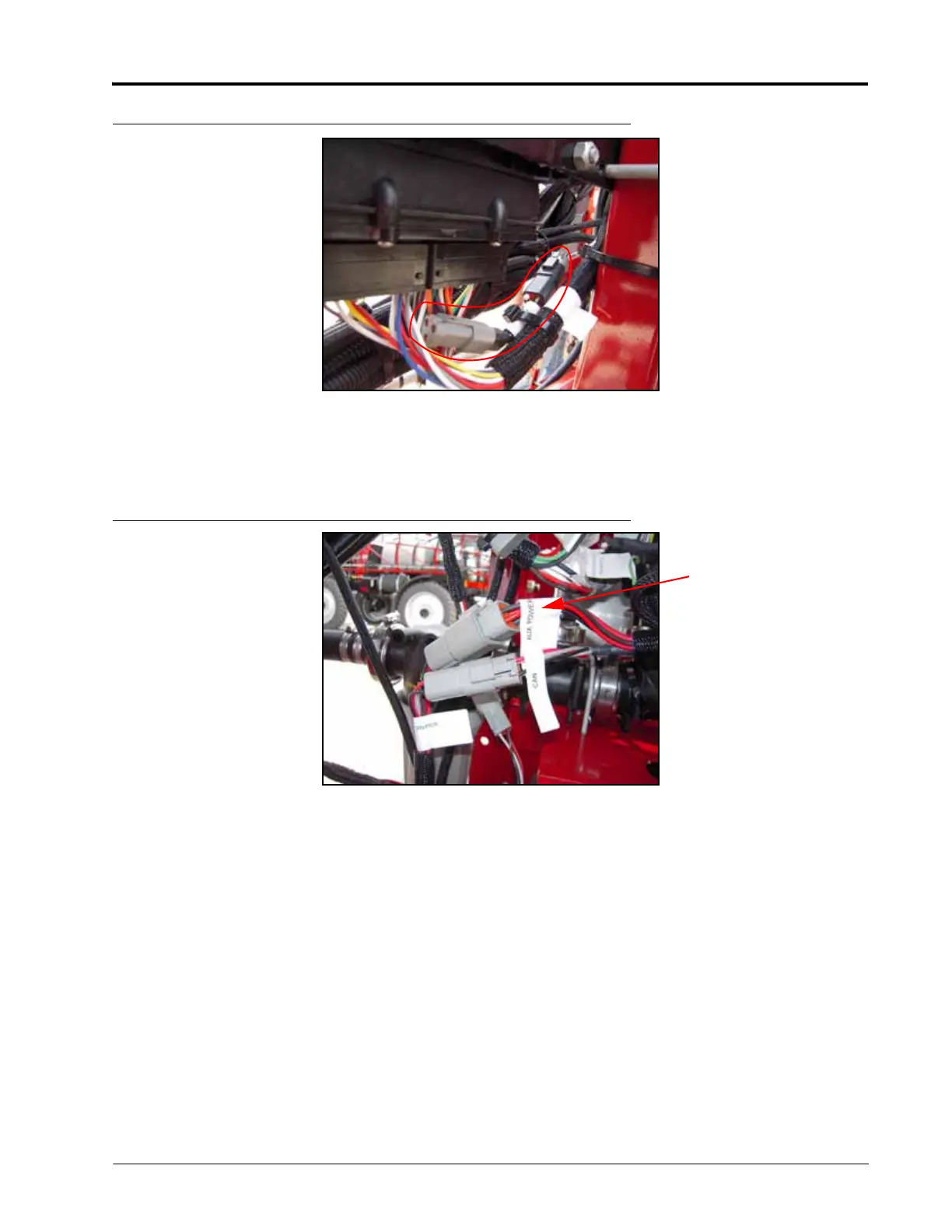

FIGURE 7. Machine’s CAN Terminator Connected to AutoBoom Harness Cable
3. Connect the machine’s CAN terminator to the harness cable’s (P/N 115-0230-032) CAN connection.
4. Connect the AutoBoom harness cable’s CAN connection to the open CAN connection on the machine’s
harness.
FIGURE 8. Machine’s CAN and Aux Power Connections
1. Locate the machine’s auxiliary power connectors on the center boom section, near the flow meter and filter.
2. Connect the machine’s AUX POWER connector to the AUX POWER connector on the AutoBoom harness cable.
