SECTION 10 -- ENGINE -- CHAPTER 1
6-62720 -- 0 9 -- 2 0 0 6
7

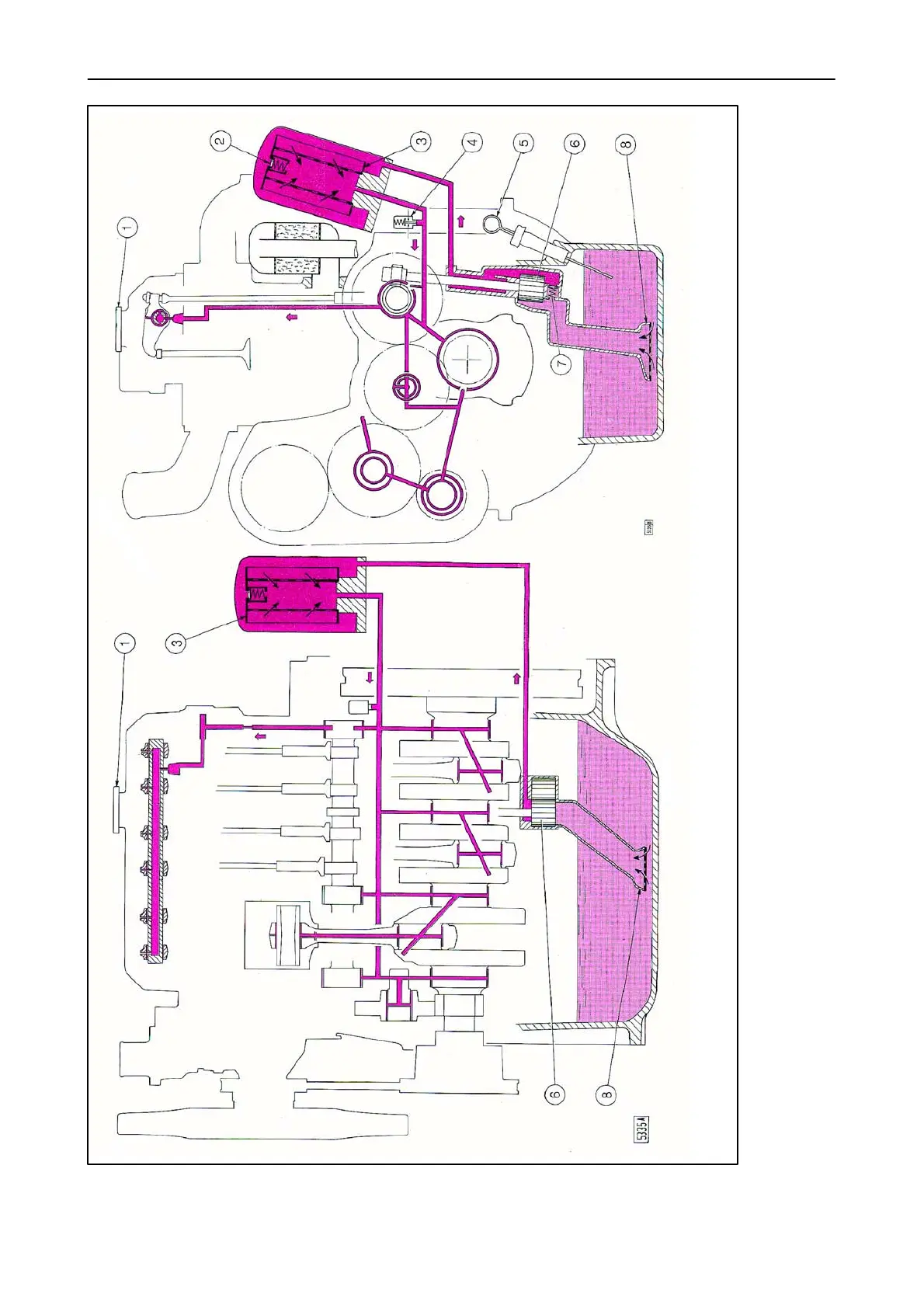

Lubrication system of normally aspirated 3--cylinder engines
1. Oil filler cap 2. Filter safety valve (opens when oil pressure at filter inlet exceeds the outlet pressure by 1.5--1.7 bar/cm
2
(140.355-- 159.068 psi/in
2
)
3. Filter. 4. Switch for low engine oil pressure warning (on dashboard). 5. Dipstick.
6. Pump. 7. Oil pressure limiting valve. 8. Screen filter on pick--up pipe
