Engine-Engineandcrankcase

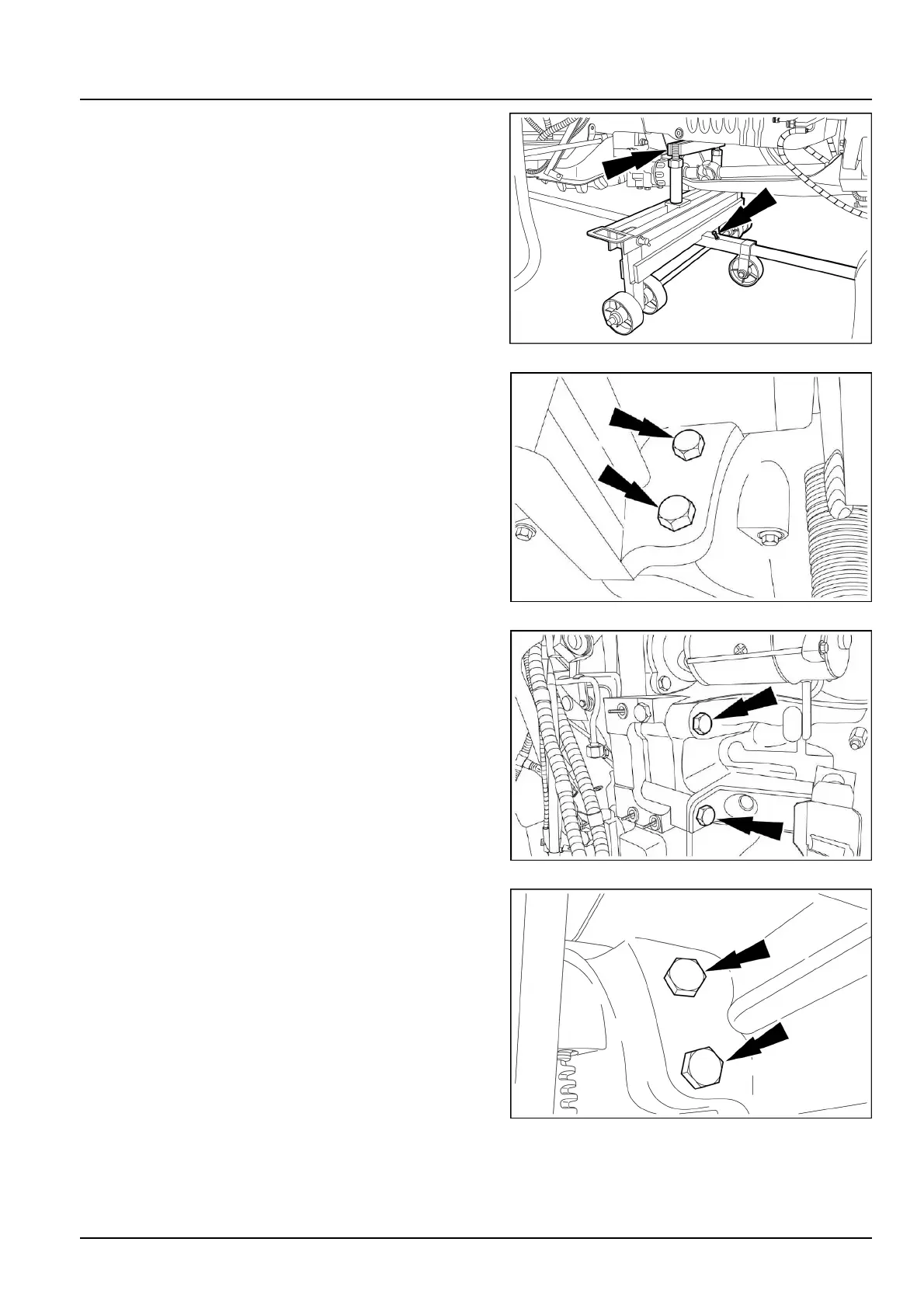

66.1.Installthesmallermovingpartofthetractorsplit-
tingstand380003352undertheengine.
2.Tightenthealignmentbarbolt.
BAIL13TR01697AB66
67.Removetheengineright-handlowerretainingbolts.
BAIL15TR00986AA67
68.Removetheengineright-handretainingbolts.
BAIL15TR00985AA68
69.Removetheengineleft-handlowerretainingbolts.
BAIL15TR00988AA69
4819316130/11/2017
10.1[10.001]/35
