HYDRAULIC,PNEUMATIC,ELECTRICAL,ELECTRONICSYSTEMS-PRIMARYHYDRAULICPOWERSYSTEM
Doubleactingconvertibletosingle-actingwithoat.
Doubleactingconvertibletosingle-acting.
BSE3664A_44230

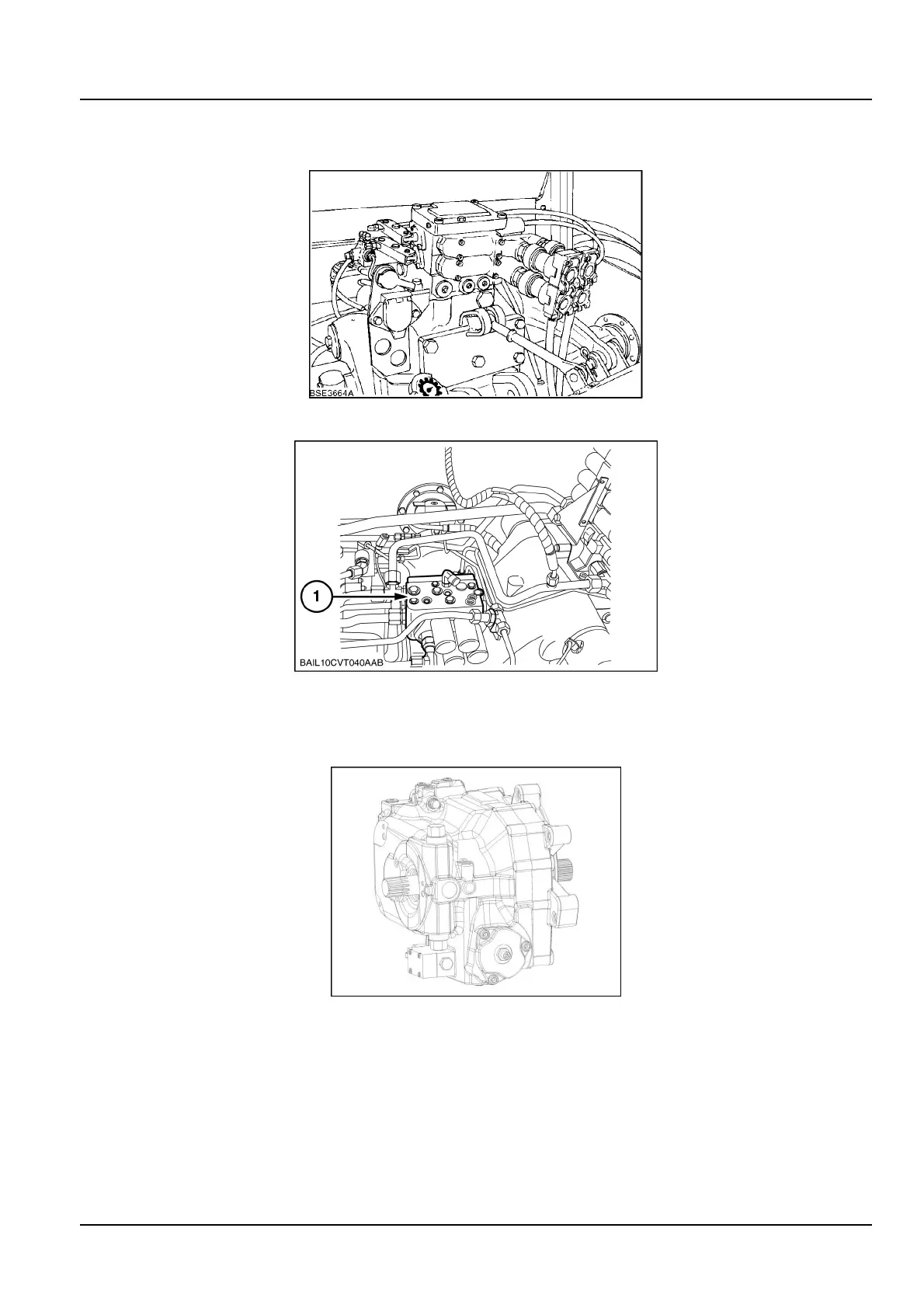

Lubricationoilissuppliedbythegearpumpandisdistributedviathedistributionmanifold(1)Figure31.
BAIL10CVT040AAB31
Thehydrostaticunitislocatedintheywheelhousingofthetransmission.T omaintainthetemperatureinthehydro-
staticunitataconstantlevel,acertainamountofoilfromtheclosedcircuitissteadilyreplacedwithoilfromthefeed
line.Theushingvalveushesoutaxedamountofoilfromthelowpressuresideofthecircuitandchannelsit
directlytotank.
